Roof Drain Connectors/ Industrial Roof Drain Connectors

Name: Roof Drain Connectors/ Industrial Roof Drain Connectors
Brand: DEKS INDUSTRIES EUROPE LIMITED
SKU: 38DLJT7NAqnVyiW8kA1Mi7

Verified by manufacturer 5 days ago

Industrial Roof Drain Connectors

DEKS INDUSTRIES EUROPE LIMITED

A fully bonded and waterproof connection to roofing membranes with rainwater downpipes through a flat roof.

Jump to:

Request BIM

01275 858866 Website

Application

Roof drainage applications.

Description

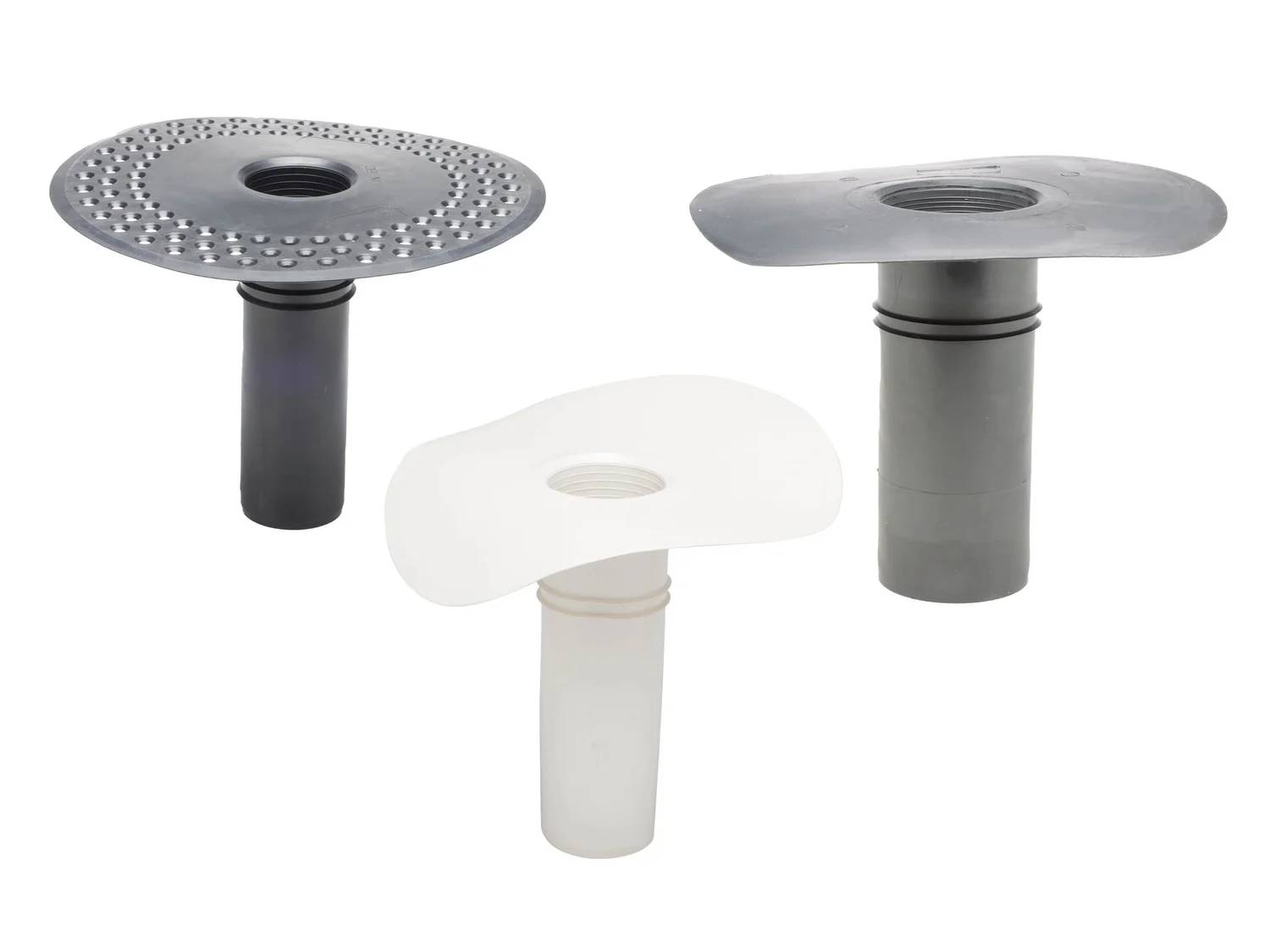

Roof Drain Connectors offer a fully bonded and waterproof connection to roofing membranes with rainwater downpipes through a flat roof.

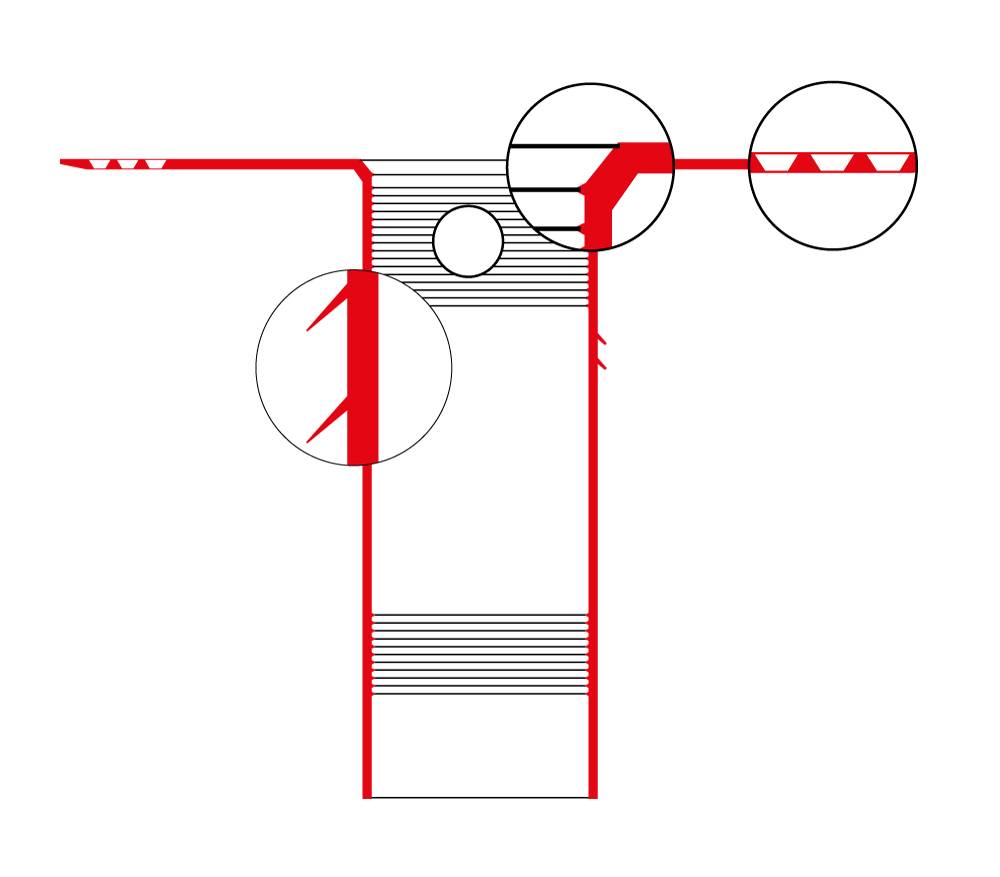

The slightly cone shaped spigot allows for fast and simple installation into pipes of various sizes. Manufactured from high quality flexible polymers, their inherent flexibility ensures long-term water tightness. The drain incorporates ribs internally, to provide extra grip to a leaf guard or gravel-excluder when post fitted, pushed in firmly attaches to the roof drain connector.

The products provide excellent resilience to deterioration caused by the sun, ozone and other weather agents or chemicals normally found in the atmosphere. The elasticity of the material allows an excellent flexibility even at low temperatures, which ensures mechanical and physical properties are maintained over time.

General information

Color	Black Grey White
Finish	Smooth
Material	EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO)
Shape	Circle
Length	235 mm 320 mm 380 mm 440 mm
Width	40 mm 60 mm 75 mm 80 mm 90 mm 100 mm 110 mm 125 mm 140 mm 150 mm 160 mm 200 mm Show more
Height	243 mm 600 mm
Warranty description	One year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R1/316 Rainwater outlets R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets

SKU Code	FR-RD-(size)-(material)

Specification data - Gravity rainwater outlets

Classification data
Roof construction	-
Form	Flat roof.

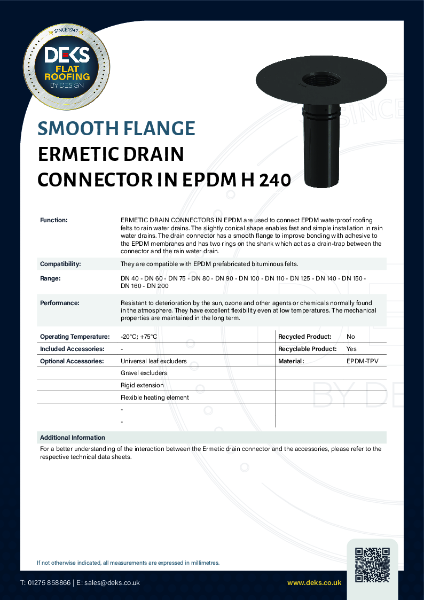

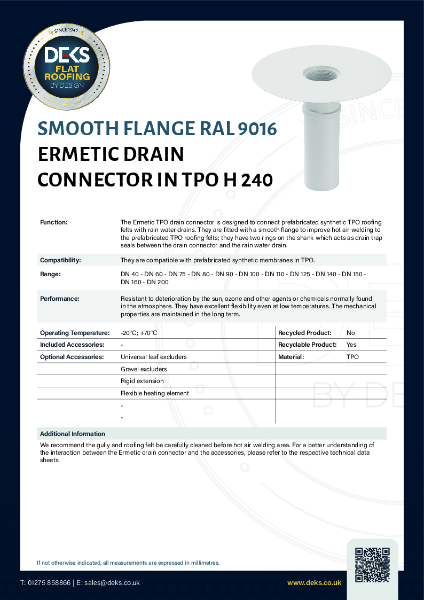

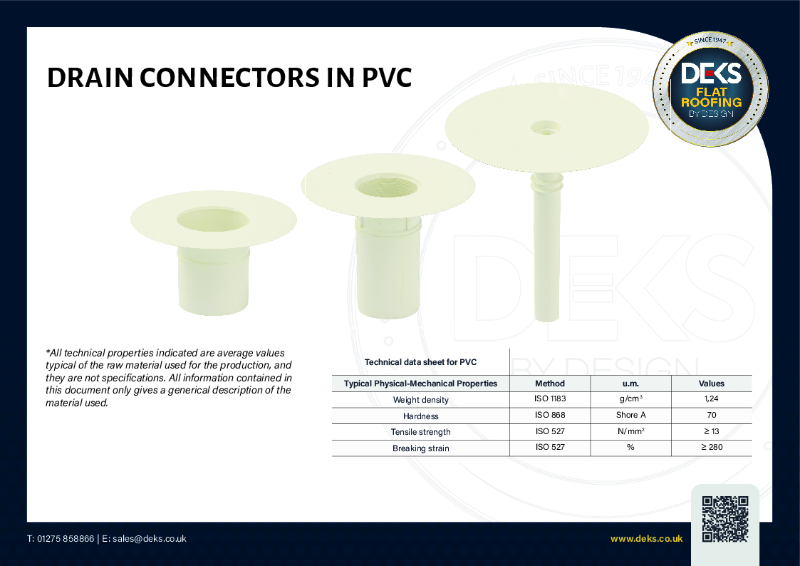

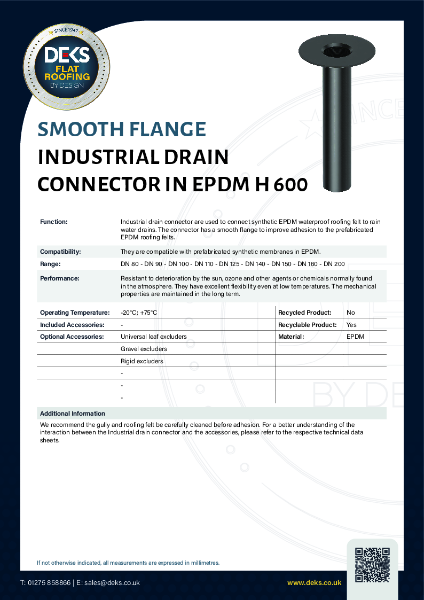

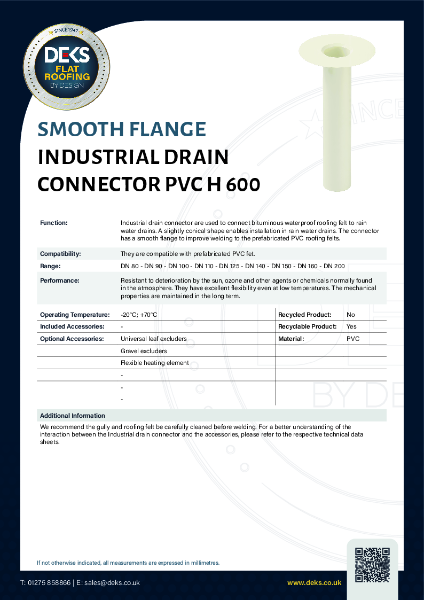

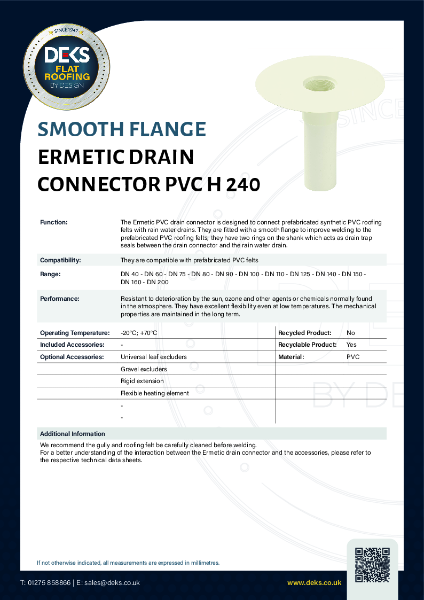

Material	EPDM. Guidance for specification option: The completely smooth flange enables watertight bonding with an EPDM Roofing Membrane. The two anti-capillary gasket rings around the spigot offers additional sealing The connector is compatible with prefabricated EPDM synthetic sheets. PVC. Guidance for specification option: These drain connectors are compatible with prefabricated PVC and TPO synthetic membranes. The completely smooth flange enables thermal bonding to these roofing membranes. The two anti-capillary gasket rings around the spigot offers additional sealing. Careful cleaning of the connector and the membrane in the whole area where bonding is highly recommended. TPE, pre-primed. TPE. Guidance for specification option: The perforated flange is for use on Bituminous Roofing Membranes. The perforations enable an excellent bond and adhesion. The two external anti-capillary gasket rings around the spigot offers additional sealing. The connector is 100% compatible with APP and SBS prefabricated bituminous membranes and bituminous coats. A sandwich installation between the two layers of membrane is recommended to achieve optimum performance and to improve adhesion, the flange can also be pre-primed. TPO. Guidance for specification option: These drain connectors are compatible with prefabricated PVC and TPO synthetic membranes. The completely smooth flange enables thermal bonding to these roofing membranes. The two anti-capillary gasket rings around the spigot offers additional sealing. Careful cleaning of the connector and the membrane in the whole area where bonding is highly recommended.
Grating	None.
Spigots	600 mm.
Integral accessories	Gravel and Leaf Guards. Guidance for specification option: Gravel and Leaf Guards are used to stop dirt and various objects from entering the drain and obstructing the regular discharge of rainwater. Available in a range of shapes/ variations including: UNIVERSAL PROPELLER GUARD UNIVERSAL SOMBRA GRAVEL-EXCLUDERS UNIVERSAL SPIDER GUARD UNIVERSAL ANGLE STRAP GUARD UNIVERSAL LEAF EXCLUDER. Consult manufacturer for details and insert requirements.
Overall size	80 mm. 90 mm. 100 mm. 110 mm. 125 mm. 140 mm. 150 mm. 160 mm. 200 mm. Manufacturer guidance Diameter
Flange	Perforated. Guidance for specification option: TPE, EPDM. Ribbed. Guidance for specification option: TPE. Smooth Guidance for specification option: TPE, PVC, TPO, EPDM.
Welding	Flame. Guidance for specification option: TPE Hot air. Guidance for specification option: PVC, TPO Incorporation. Guidance for specification option: EPDM

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Manufacturing plant location	Italy
Material	EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO)
