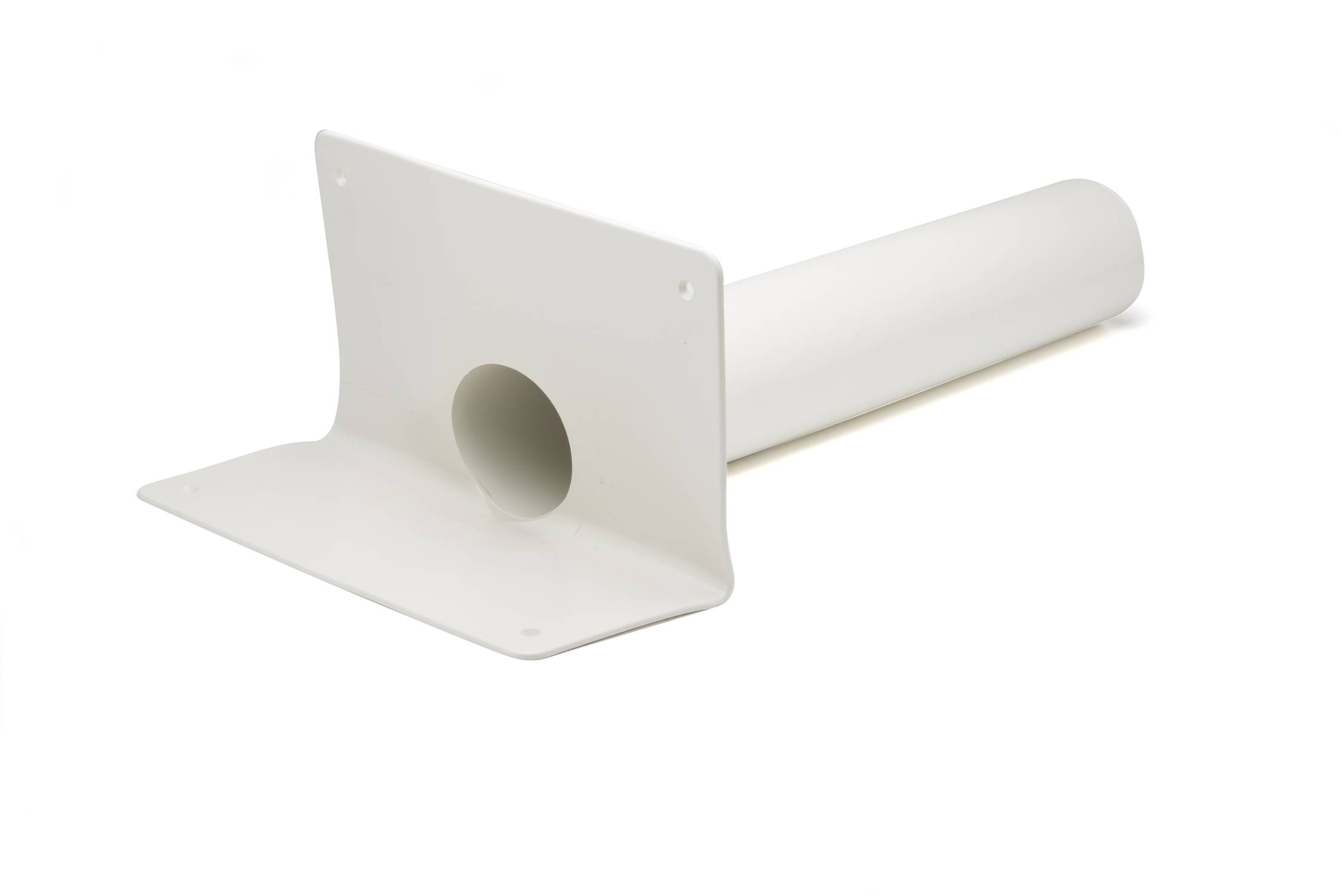

Horizontal Parapet Drain Round

Name: Horizontal Parapet Drain Round
Brand: DEKS INDUSTRIES EUROPE LIMITED
SKU: tajdwi5ENdVURZzhB5DsL1

Verified by manufacturer 5 days ago

DEKS INDUSTRIES EUROPE LIMITED

Horizontal parapet round drain.

Jump to:

Request BIM

01275 858866 Website

Application

Roof drainage applications.

Description

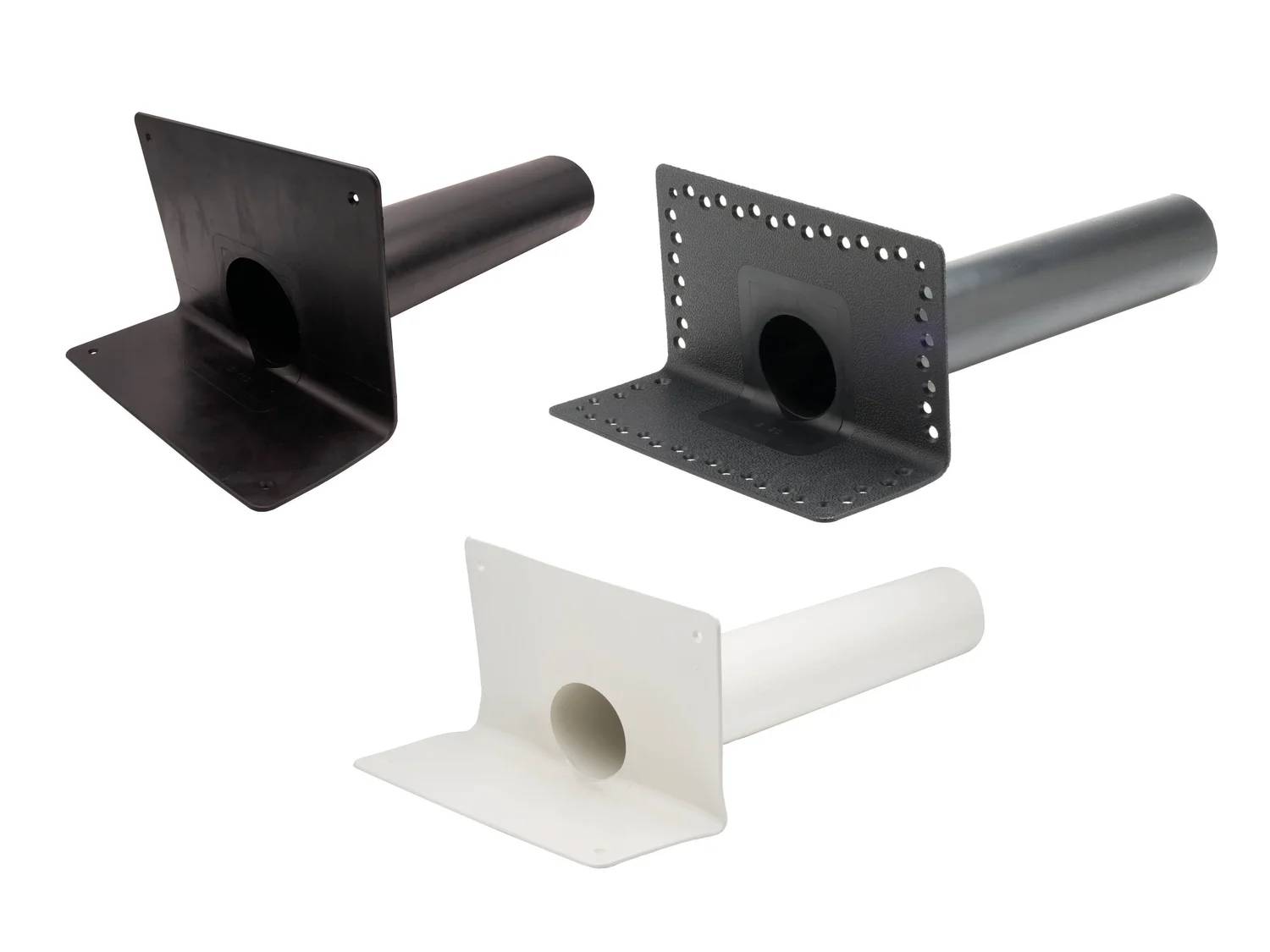

A 425 mm long - 90° horizontal or vertical outlet with the function of connecting roofing membranes with rainwater drains through walls. The fittings are available in two cross-sections to better adapt to needs in terms of water discharge and the flange is slightly angled in relation to the spigot to make it easier to install the fitting angled to a fall.

The elasticity of the material allows for excellent flexibility even at low temperatures, which ensures mechanical and physical properties are maintained over time. They provide excellent resilience to deterioration caused by the sun, ozone and other weather agents or chemicals normally found in the atmosphere.

General information

Color	Black White
Finish	Smooth
Material	EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO)
Shape	Other
Length	500 mm Guidance for specification option: Total overall length
Width	260 mm 304 mm 360 mm
Height	140 mm 175 mm 215 mm 260 mm
Warranty description	One year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R1/316 Rainwater outlets R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets

Classification data
Roof construction	-
Form	Flat roof.
Material	EPDM. Guidance for specification option: The completely smooth flange ensures perfect bonding with the EPDM synthetic membranes and the long 425 mm square tube allows walls of up to 400 mm to be crossed. The connector is perfectly compatible with prefabricated EPDM synthetic sheets. Careful cleaning of the connector and the synthetic felt in the vicinity of the area joining to the connector is recommended PVC. Guidance for specification option: The completely smooth flange guarantees perfect bonding with PVC and TPO synthetic turf, and the long 425 mm square tube allows walls of up to 400mm to be crossed. The drain connectors are perfectly compatible with prefabricated synthetic PVC and TPO sheets. Careful cleaning of the connector and the synthetic felt in the vicinity of the area joining to the connector is recommended. TPE, pre-primed. TPE. Guidance for specification option: The large, perforated flange ensures perfect adhesion with bituminous membranes, and the long 425 mm square tube allows walls of up to 400mm to be crossed. They are 100% compatible with APP and SBS prefabricated bituminous membranes and bituminous coats. A sandwich installation between the two layers of membrane is recommended to achieve top performance. To improve adhesion, the connector can be pre-coated with a light coat of primer. TPO. Guidance for specification option: The completely smooth flange guarantees perfect bonding with PVC and TPO synthetic turf, and the long 425 mm square tube allows walls of up to 400mm to be crossed. The drain connectors are perfectly compatible with prefabricated synthetic PVC and TPO sheets. Careful cleaning of the connector and the synthetic felt in the vicinity of the area joining to the connector is recommended.
Grating	None.
Spigots	500 mm.

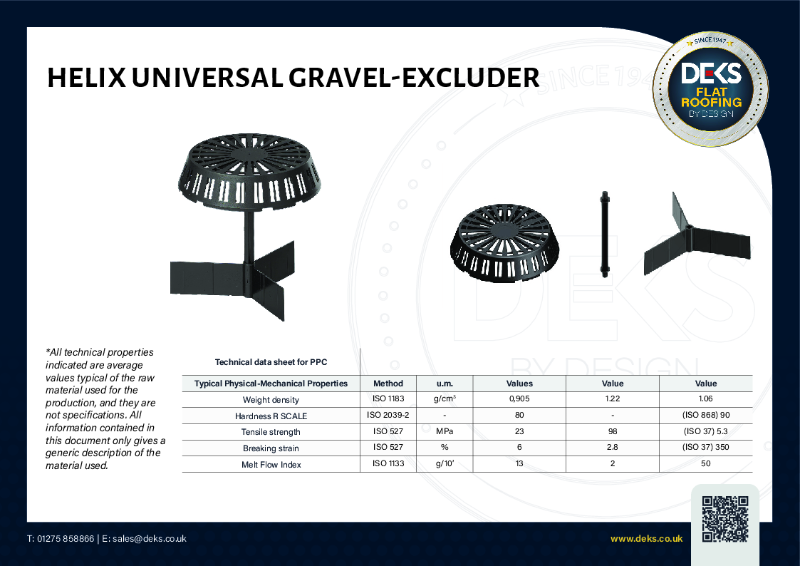

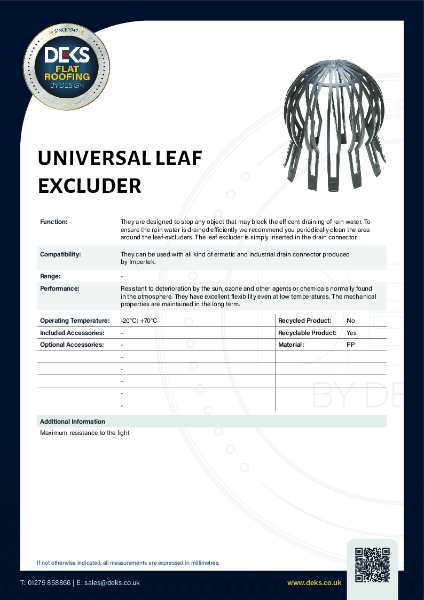

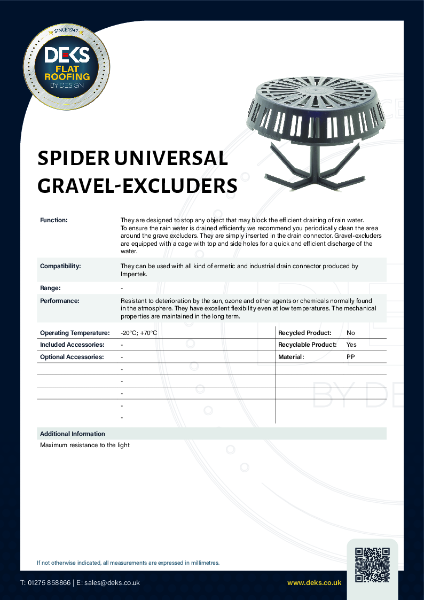

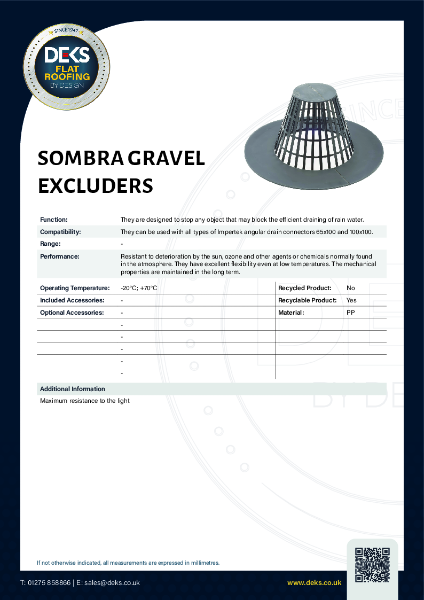

Integral accessories	Gravel and Leaf Guards. Guidance for specification option: Gravel and Leaf Guards are used to stop dirt and various objects from entering the drain and obstructing the regular discharge of rainwater. Available in a range of shapes/ variations including: UNIVERSAL PROPELLER GUARD UNIVERSAL SOMBRA GRAVEL-EXCLUDERS UNIVERSAL SPIDER GUARD UNIVERSAL ANGLE STRAP GUARD UNIVERSAL LEAF EXCLUDER. Consult manufacturer for details and insert requirements.
Overall size	50 mm. 63 mm. 75 mm. 80 mm. 90 mm. 100 mm. 110 mm. 125 mm. Manufacturer guidance Diameter
Flange	Perforated. Guidance for specification option: TPE, EPDM. Ribbed. Guidance for specification option: TPE. Smooth Guidance for specification option: TPE, PVC, TPO, EPDM.
Welding	Flame. Guidance for specification option: TPE Hot air. Guidance for specification option: PVC, TPO Incorporation. Guidance for specification option: EPDM

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Manufacturing plant location	Italy
Material	EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO)
