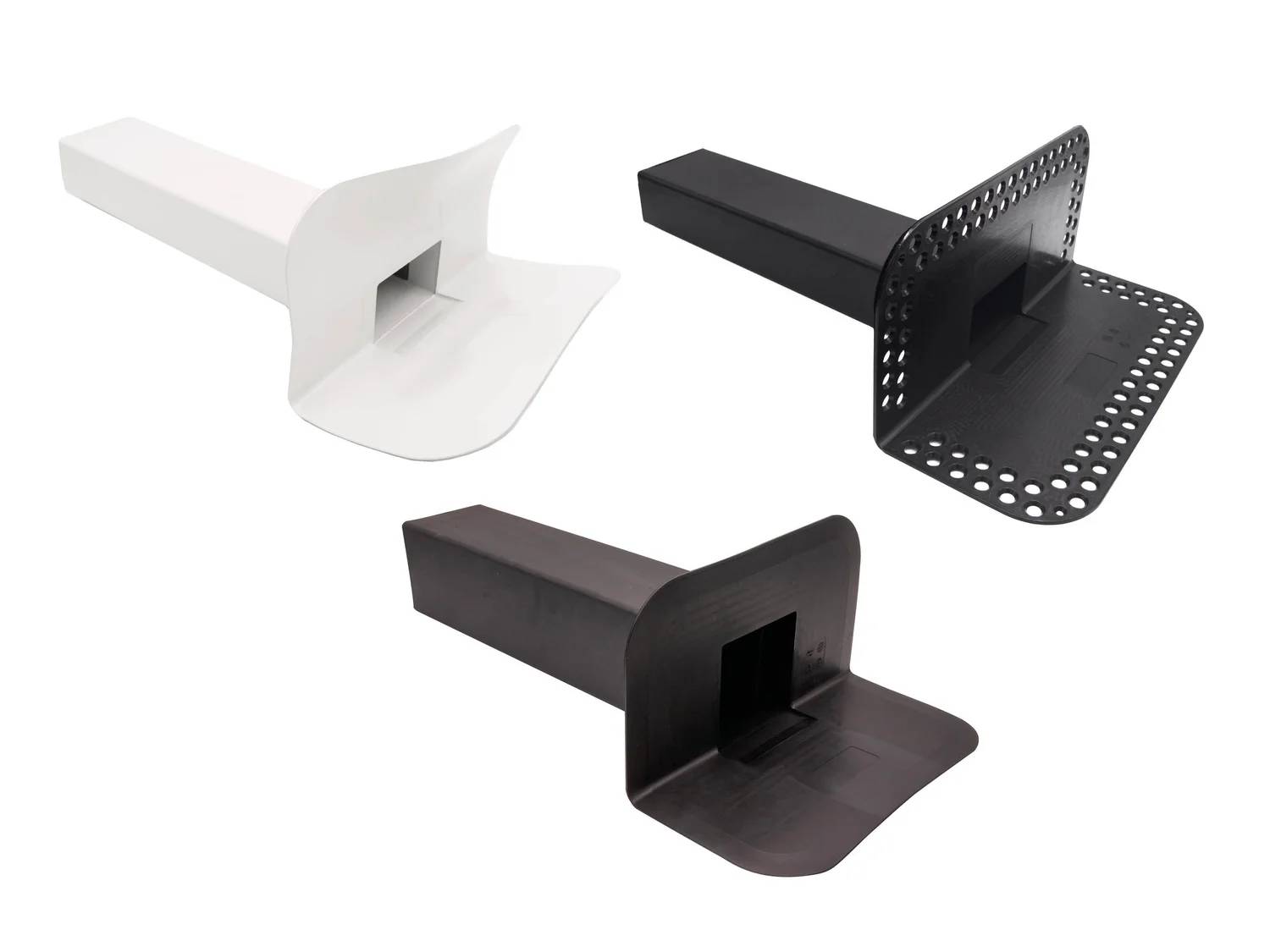

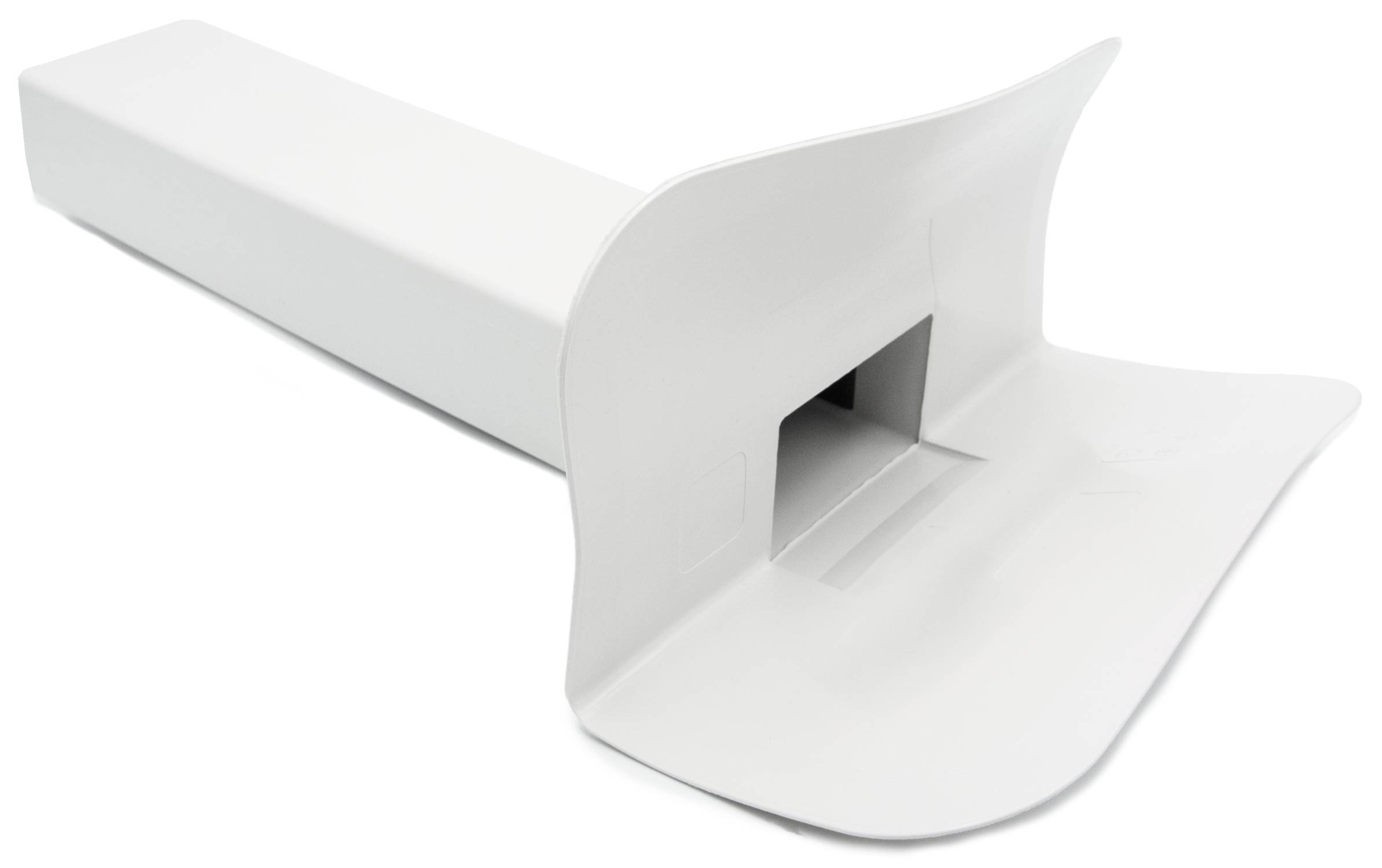

Horizontal Parapet Drain Square
Verified by manufacturer 17 hours ago
Horizontal parapet square drain.
Application
Roof drainage applications - Parapet wall
Description
A 425 mm long - 90° horizontal or vertical outlet with the function of connecting roofing membranes with rainwater drains through walls. The fittings are available in two cross-sections to better adapt to needs in terms of water discharge and the flange is slightly angled in relation to the spigot to make it easier to install the fitting angled to a fall.
The elasticity of the material allows for excellent flexibility even at low temperatures, which ensures mechanical and physical properties are maintained over time. They provide excellent resilience to deterioration caused by the sun, ozone and other weather agents or chemicals normally found in the atmosphere.
General information
Color | Black White |
Finish | Smooth |
Material | EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO) |
Shape | Other Rectangle Square Oval |
Length | 577 mm Guidance for specification option: Total overall length |
Width | 340 mm |
Height | 155 mm |
Warranty description | One year |
Uniclass | |
CAWS | R1/316 Rainwater outlets R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
SKU Code | FR-CDS |
Specification data - Gravity rainwater outlets
Classification data | |
Roof construction | |
Form | Flat roof. |
Material | EPDM. Guidance for specification option: The completely smooth flange ensures perfect bonding with the EPDM synthetic membranes and the long 425 mm square tube allows walls of up to 400 mm to be crossed. The connector is perfectly compatible with prefabricated EPDM synthetic sheets. Careful cleaning of the connector and the synthetic felt in the vicinity of the area joining to the connector is recommended PVC. Guidance for specification option: The completely smooth flange guarantees perfect bonding with PVC and TPO synthetic turf, and the long 425 mm square tube allows walls of up to 400mm to be crossed. The drain connectors are perfectly compatible with prefabricated synthetic PVC and TPO sheets. Careful cleaning of the connector and the synthetic felt in the vicinity of the area joining to the connector is recommended. TPE, pre-primed. TPE. Guidance for specification option: The large, perforated flange ensures perfect adhesion with bituminous membranes, and the long 425 mm square tube allows walls of up to 400mm to be crossed. They are 100% compatible with APP and SBS prefabricated bituminous membranes and bituminous coats. A sandwich installation between the two layers of membrane is recommended to achieve top performance. To improve adhesion, the connector can be pre-coated with a light coat of primer. TPO. Guidance for specification option: The completely smooth flange guarantees perfect bonding with PVC and TPO synthetic turf, and the long 425 mm square tube allows walls of up to 400mm to be crossed. The drain connectors are perfectly compatible with prefabricated synthetic PVC and TPO sheets. Careful cleaning of the connector and the synthetic felt in the vicinity of the area joining to the connector is recommended. |
Grating | None. |
Spigots | 427 mm. |
Integral accessories | ⌀ 80-65/100 - Corner Connector. ⌀ 100-65/100 - Corner Connector. ⌀ 80-100/100 - Corner Connector. ⌀ 100-100/100 - Corner Connector. Gravel and Leaf Guards. Guidance for specification option: Gravel and Leaf Guards are used to stop dirt and various objects from entering the drain and obstructing the regular discharge of rainwater. Available in a range of shapes/ variations including:
Consult manufacturer for details and insert requirements. Manufacturer guidanceHorizontal Parapet Drain Angle Pipe Connectors are used to divert rainwater from the square angle drain connector positioned horizontally to the vertical rainwater pipe. Both connecting elements with a 65 x 100 mm cross-section, and a 100 x 100 mm cross-section, available both with 80 and 100 mm outlet diameters. The very linear design with no grooves adds a nice aesthetic effect and means they can also be used in particularly fine buildings. The inner wings firmly attach them over the drain connector and prevent any warping over time. With their dark brown colour, the connecting elements blend in perfectly with rainwater pipes normally commercially available. |
Overall size | 65 x 100 mm/90°. 100 x 100 mm/90°. |
Flange | Perforated. Guidance for specification option: TPE, EPDM. Ribbed. Guidance for specification option: TPE. Smooth Guidance for specification option: TPE, PVC, TPO, EPDM. |
Welding | Flame. Guidance for specification option: TPE Hot air. Guidance for specification option: PVC, TPO Incorporation. Guidance for specification option: EPDM |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
