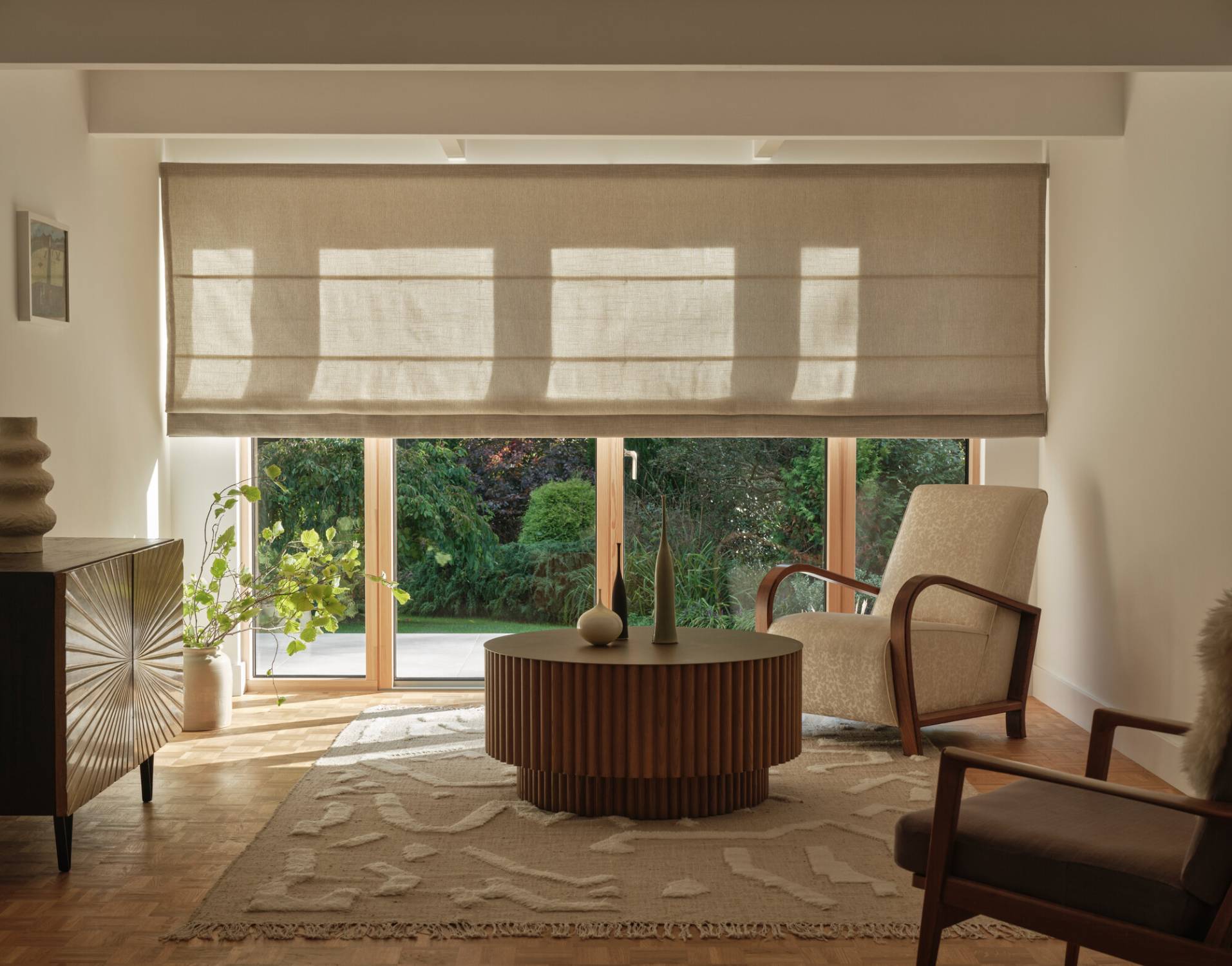

Roman Blind - Motorised - Silent Gliss SG 2360 - Motor Operated Roman Blinds

Verified by manufacturer 1 month ago

Ceiling/ top fixed

Silent Gliss Ltd Variant:

Motorised roman blind for medium to heavy-weight applications. Available with a wide range of controls, including app and building automation.

Jump to:
Request BIM
+44 (0)1843 863571 Website

Application

Roman blind suitable for commercial, hospitality, and residential interiors. Wall or ceiling fix.

Description

Motorised roman blind for medium to heavy-weight applications. Available with a wide range of control options including radio remote controls and/ or operation via the Silent Gliss Move Hub or a building control system.

Features and benefits:

  • Exceptional motor technology delivers near-silent motor operation.
  • Soft stop.
  • Wide range of control options including radio handsets, switches and app control via the Silent Gliss Move hub.
  • Small, enclosed headrail conceals the blind components for a neat finish.
  • Up to 4 m wide, 4 m drop, and 10 kg.
  • Supplied made-to-measure hardware only or complete with a blind made from a fabric from The Collection by Silent Gliss.
  • Chain-free in compliance with Child Safety legislation.

General information

Color

Black

Grey

White

Other

Finish

Powder-coated

Material

Fabric

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

4000 mm

Guidance for specification option:

Maximum.

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_07_73 Roman blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

SKU Code

SG 2360

Specification data - Roman blinds

Classification data

Standards

To BS EN 13120.

Position

Ceiling/ top fixed.

Dimensions (width x height)

-

Manufacturer guidance

  • Maximum width: 4000 mm.
  • Maximum depth: 4000 mm.
  • Maximum area: 16 m².

Minimum width varies dependent on motor specified. Recommended width to height ratio is maximum 1:3; consult manufacturer for more details and insert requirements.

Colour

White.

Guidance for specification option:

RAL 9016.

Black.

Guidance for specification option:

RAL 9005.

Lining

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Operation

SG 11251 24 V d.c. motorized.

Guidance for specification option:

  • 50-Series (Smart by Silent Gliss).
  • Minimum system width 600 mm.
  • IP 30.
  • 1.5 A.
  • 32 rpm.

SG 11943 100–240 V a.c. motorized.

Guidance for specification option:

  • 40–Series.
  • Minimum system width 830 mm.
  • IP 30.
  • 0.6 A.
  • 32 rpm.

SG 11944 24 V d.c. motorized.

Guidance for specification option:

  • 40–Series.
  • Minimum system width 600 mm.
  • IP 30.
  • 1.5 A.
  • 32 rpm.

SG 11625 50-240 V d.c. motorized.

Guidance for specification option:

  • 25–Series.
  • Minimum system width 830 mm.
  • IP 30.
  • 0.8 A.
  • 32 rpm.

SG 10522 230 V a.c. motorized.

Guidance for specification option:

  • 20–Series.
  • Minimum system width 600 mm.
  • IP 44.
  • 0.73 A.
  • 30 rpm.

SG 10715 230 V a.c. motorized.

Guidance for specification option:

  • 5–Series.
  • Minimum system width 600 mm.
  • IP 44.
  • 0.485 A.
  • 28 rpm.

SG 10716 120 V a.c. motorized.

Guidance for specification option:

  • 5–Series.
  • Minimum system width 600 mm.
  • IP 44.
  • 1.1 A.
  • 33 rpm.

Accessories

Not required.
Side guides.

Guidance for specification option:

Additional parts:

  • 2 x SG 3036 bracket 47 mm.
  • 2 x SG 4944 side guide end cover.
  • 2 x SG 4946 side guide wire rope fastener.
  • 2 x SG 4947 side guide wire rope fastener.
  • 2 x SG 4948 side guide wire ø 1.5 mm.

Up to 15° from vertical.

Other.

Guidance for specification option:

Manufacturer offers a wide range of accessory components; consult manufacturer's literature for more details and insert requirements.

Maximum weight

10 kg.

Type

Type A.

Guidance for specification option:

Standard.

  • Loop tape SG 3074/ SG 2164.
  • Cord SG 2216.
  • Child safety hook set SG 3164.
  • Hollow hem.
  • Bottom bar SG 2004.

Type B.

Guidance for specification option:

  • Child safety eyelet soft fold SG 3078.
  • Ring tape SG 2164.
  • Cord SG 2216.
  • Child safety hook set SG 3164.
  • Hollow hem.
  • Bottom bar SG 2004.

Type C.

Guidance for specification option:

  • Tape SG 2136.
  • Child safety eyelet hard fold SG 3069.
  • Rod SG 2135.
  • Cord SG 2216.
  • Child safety hook set SG 3164.

Type D.

Guidance for specification option:

  • Child safety eyelet set SG 3161/ SG 3165.
  • Tube SG 2144.
  • Cord SG 2216.
  • Child safety hook set SG 3164.
  • Optional tube SG 2144/ SG 2137 can be installed to room side.

Bottom bar

SG 2004 bottom bar, 20 x 7 mm.
SG 2006 bottom bar, 28 x 3 mm.

Manufacturer guidance

Bottom bar depends on configuration type specified; consult manufacturer for more details and insert requirements.

Bottom bar

White.

Guidance for specification option:

RAL 9016.

Black.

Guidance for specification option:

RAL 9005.

Fabric colour

Guidance for specification option:

Consult manufacturer for more details and insert requirements.

Manufacturer guidance

Fabric material and colour.

Controls

Wall switch.

Guidance for specification option:

System can be operated by fixed wall switch.

SG control N.

Guidance for specification option:

  • Various radio hand-help and wall transmitters available.
  • Compatible with the Silent Gliss Move app.

SG control R.

Guidance for specification option:

  • Various radio hand-help and wall transmitters available.
  • An external receiver is required.

Smart.

Guidance for specification option:

  • Smart by Silent Gliss.
  • Open designed two-way communication system which allows to flawlessly integrate products with most major building management systems.

Size

56 x 60 mm.

Manufacturer guidance

Head box size (width x height).

Fixing type

Clamp SG 3003.

Guidance for specification option:

Minimum offset from vertical surface: 35 mm.

Bracket SG 2521.

Guidance for specification option:

Minimum offset from vertical surface: 15 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Fabric
Aluminium
