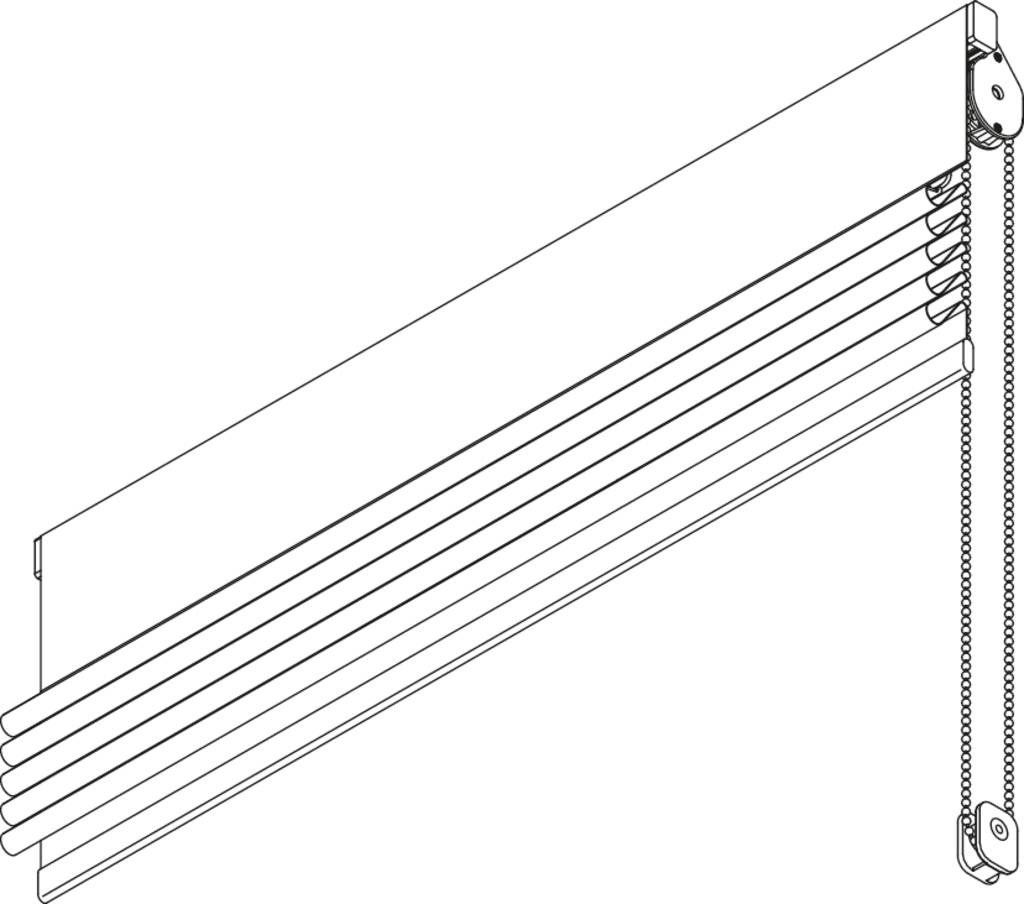

Roman Blind - Chain Operated - Silent Gliss SG 2120 - Roman Blinds
Verified by manufacturer 2 months ago
Chain operated roman blind system, medium to heavy weight.
Application
Suitable for use in commercial and residential applications.
Description
Chain operated Roman blind system for medium to heavy weight blinds.
Features and benefits:
- The front face of the headrail is finished with Velcro® tape fixing ensures maintenance, removal and cleaning of fabric is easy.
- Blind stops without slipping at any required position.
- The endless bead chain operation is designed for large or inaccessible blinds or where trailing cords are not suitable.
- Bay window systems can be achieved using universal joints.
- Five year hardware warranty.
- It is manufactured in accordance with EN 13120, Child Safety Legislation.
- Standards: ISO 9001; ISO 14001; EN 13120.

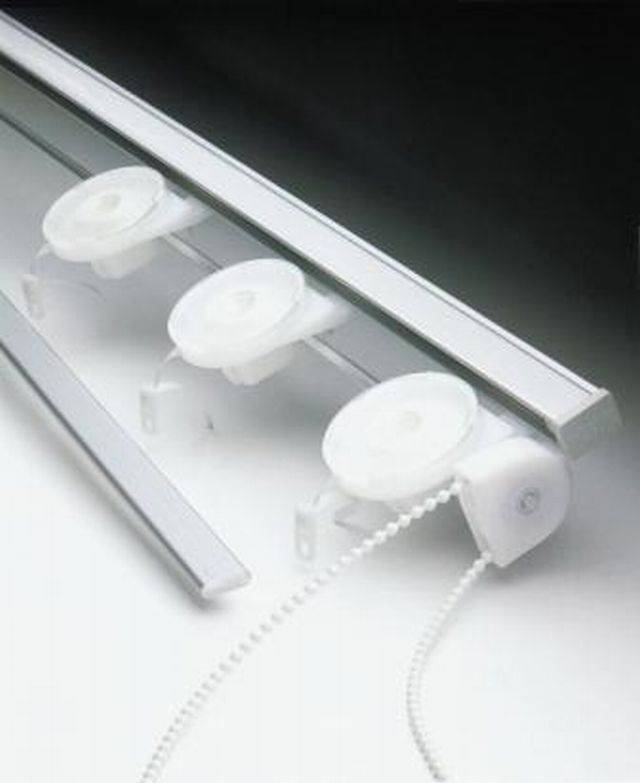

Standard components:
- Aluminium headrail (2211).
- Winding shaft (2111)
- Spool (2081)
- Chain drive (2049).
- Metal bead chain (4845).
General information
Finish | Guidance for specification option: The headrail finish is powder anodized aluminium. |
Material | Aluminium Guidance for specification option: Headrail. Fabric Guidance for specification option: For details of the material of the fabric please refer to supplier |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year Manufacturer guidanceHardware warranty. |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Specification data - Roman blinds
Classification data | |
Standards | To BS EN 13120. |
Position | Wall/ face. Ceiling/ top fixed. |
Colour | Anodized aluminium headrail. |
Lining | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Operation | Metal bead chain. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
Execution | Installing blinds. |
Fixing type | Ceiling fixing brackets Ref 3603. Nylon wall fixing brackets Ref 3630. Guidance for specification option: Overall length: 43 mm. Nylon wall fixing brackets Ref 3660. Guidance for specification option: Overall length 73 mm. Adjustable wall fixing Universal Smart Fix brackets Ref 11154. Guidance for specification option: 132-160 mm projection to outer face of track. White or grey. Adjustable wall fixing Universal Smart Fix brackets Ref 11155. Guidance for specification option: 162-190 mm projection to outer face of track. White or grey and 3603. Adjustable wall fixing Universal Smart Fix brackets Ref 11156. Guidance for specification option: 212-240 mm projection to outer face of track. White or grey and 3603. Wall fixing Smart Fix brackets Ref 11200. Guidance for specification option: 80 mm projection to outer face of track. White or grey and 3603. Wall fixing Smart Fix brackets Ref 11201. Guidance for specification option: 100 mm projection to outer face of track. White or grey and 3603. Wall fixing Smart Fix brackets Ref 11202. Guidance for specification option: 120 mm projection to outer face of track. White or grey and 3603. Wall fixing Smart Fix brackets Ref 11203. Guidance for specification option: 140 mm projection to outer face of track. White or grey and 3603. Wall fixing Smart Fix brackets Ref 11204. Guidance for specification option: 170 mm projection to outer face of track. White or grey and 3603. Wall fixing Smart Fix brackets Ref 11205. Guidance for specification option: 220 mm projection to outer face of track. White or grey and 3603. Wall fixing Square Smart Fix brackets Ref 11211. Guidance for specification option: 100 mm projection to outer face of track. White or grey and 3603. Wall fixing Square Smart Fix brackets Ref 11212. Guidance for specification option: 120 mm projection to outer face of track. White or grey and 3603. Wall fixing Square Smart Fix brackets Ref 11213. Guidance for specification option: 140 mm projection to outer face of track. White or grey and 3603. Wall fixing Square Smart Fix brackets Ref 11214. Guidance for specification option: 170 mm projection to outer face of track. White or grey and 3603. Wall fixing Square Smart Fix brackets Ref 11215. Guidance for specification option: 220 mm projection to outer face of track. White or grey and 3603. Wall fixing Square Smart Fix brackets Ref, 11210. Guidance for specification option: 80 mm projection to outer face of track. White or grey and 3603. |
Headrail | 23 x 15 mm. Guidance for specification option: (Height x width). The headrail is rectilinear. Manufacturer guidanceSize and shape. |
Fabric colour | Guidance for specification option: Various fabrics available. |
Sustainability data
Country of material origin | United Kingdom |
Material | Aluminium Guidance for specification option: Headrail. Fabric Guidance for specification option: For details of the material of the fabric please refer to supplier |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % Guidance for specification option: %. |
