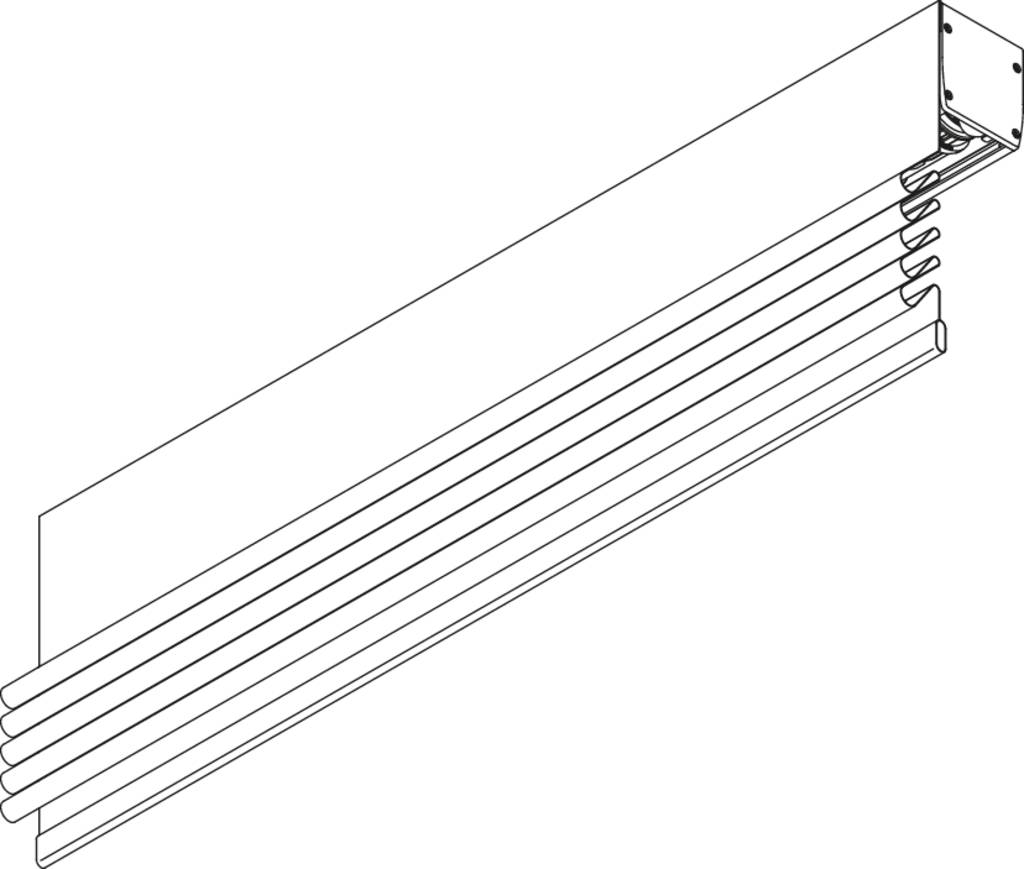

Roman Blind - Motorised / Electric - Silent Gliss SG 2350 - Roman Blind

Verified by manufacturer 3 months ago

Silent Gliss Ltd Product certifications:
  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

Electrically operated roman blind system, medium to heavy weight.

Jump to:
+44 (0)1843 863571 Website

Application

Suitable for use in commercial and residential applications.

Description

Electrically operated Roman blind system for medium to heavy weight blinds.


Features and benefits:

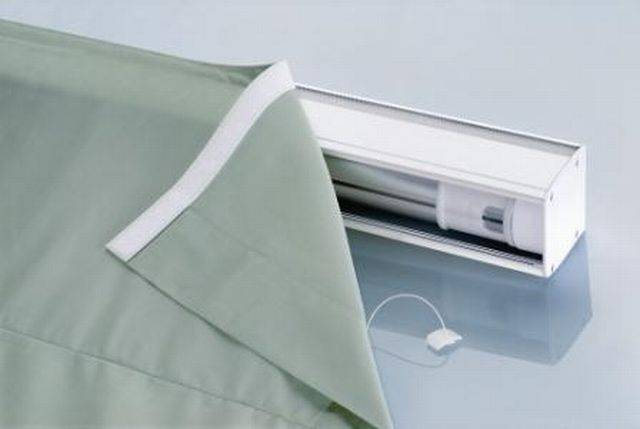

  • The motor is contained within the headbox and can be supplied with separate or integrated receiver. .
  • The cord release mechanism combined with Velcro® tape fixing ensures maintenance, removal and cleaning of fabric is easy.
  • Five year hardware warranty.
  • Operation by fixed switch, radio control or home control system.
  • It is manufactured in accordance with EN 13120 and Child Safety Legislation.
  • Standards: ISO 9001; ISO 14001; EN 13120.


Standard components:

  • Aluminium headbox (2351).
  • Winding tube (2352), 50 mm diameter.
  • Lift cord (2216).

General information

Finish

Guidance for specification option:

Powder coated aluminium headbox (RAL 9016).

Material

Aluminium

Guidance for specification option:

Headbox.

Fabric

Guidance for specification option:

For details of the material of the fabric please refer to supplier.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Manufacturer guidance

Hardware warranty.

Uniclass

Pr_30_59_07_73 Roman blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

SKU Code

100235000

Product range

Roman Blinds

Specification data - Roman blinds

Classification data

Standards

To BS EN 13120.

Position

Wall/ face.
Ceiling/ top fixed.

Colour

White.

Guidance for specification option:

(RAL 9016) headbox. Various fabrics available.

Lining

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Operation

Fixed wall switch.

Guidance for specification option:

Radio control systems.

Control L.
Control R.
Silent Gliss Smart.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

Execution

Installing blinds.

Fixing type

Bracket, 2363.

Guidance for specification option:

Universal. For ceiling or wall fitting, at 800 mm centres.

Bracket, 2521.

Guidance for specification option:

For ceiling fitting.

Clamp, 3003.

Guidance for specification option:

For ceiling fitting.

Smart Fix extension brackets with bracket 2512, Ref 11200.

Guidance for specification option:

80-84 mm projection to outer face of headbox.

Smart Fix extension brackets with bracket 2512, Ref 11201.

Guidance for specification option:

100-104 mm projection to outer face of headbox.

Smart Fix extension brackets with bracket 2512, Ref 11202.

Guidance for specification option:

120-124 mm projection to outer face of headbox.

Smart Fix extension brackets with bracket 2512, Ref 11203.

Guidance for specification option:

140-144 mm projection to outer face of headbox.

Smart Fix extension brackets with bracket 2512, Ref 11204.

Guidance for specification option:

170-174 mm projection to outer face of headbox.

Square Smart Fix extension brackets with bracket 2512, Ref 11210.

Guidance for specification option:

80-84 mm projection to outer face of headbox.

Square Smart Fix extension brackets with bracket 2512, Ref 11211.

Guidance for specification option:

100-104 mm projection to outer face of headbox.

Square Smart Fix extension brackets with bracket 2512, Ref 11212.

Guidance for specification option:

120-124 mm projection to outer face of headbox.

Square Smart Fix extension brackets with bracket 2512, Ref 11213.

Guidance for specification option:

140-144 mm projection to outer face of headbox.

Square Smart Fix extension brackets with bracket 2512, Ref 11214.

Guidance for specification option:

170-174 mm projection to outer face of headbox.

Universal Smart Fix extension brackets with bracket 2512, Ref 11154.

Guidance for specification option:

134-162 mm projection to outer face of headbox.

Universal Smart Fix extension brackets with bracket 2512, Ref 11155.

Guidance for specification option:

164-192 mm projection to outer face of headbox.

Universal Smart Fix extension brackets with bracket 2512, Ref 11156.

Guidance for specification option:

214-242 mm projection to outer face of headbox.

Speed

Range: 20-36 rpm.

Guidance for specification option:

Depending on motor.

Current

Range: 0.55–2.1 A.

Guidance for specification option:

Depending on motor.

Voltage

230 V a.c.
120 V a.c.
100-240 V a.c.
24V d.c.

Torque

Consult manufacturer.

Size

69.4 x 64.5 mm.

Guidance for specification option:

(Height x width) Rectilinear shape.

Manufacturer guidance

Headbox Size.

Sustainability data

Country of material origin

United Kingdom

Material

Aluminium

Guidance for specification option:

Headbox.

Fabric

Guidance for specification option:

For details of the material of the fabric please refer to supplier.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Guidance for specification option:

%.

Product certifications

Quiet Mark Certification

Quiet Mark Certification

Silent Gliss Elec Roman Quiet Mark Certificate 2022

Literature

Best Projects Volume 4 by Silent Gliss

Best Projects Volume 4 by Silent Gliss

Child Safety Practice Guide by Silent Gliss

Child Safety Practice Guide by Silent Gliss

Smart Home Shading Brochure by Silent Gliss

Smart Home Shading Brochure by Silent Gliss

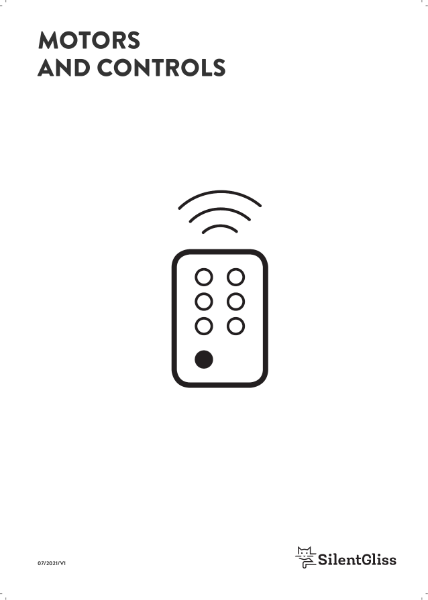

Switches and Controls by Silent Gliss
