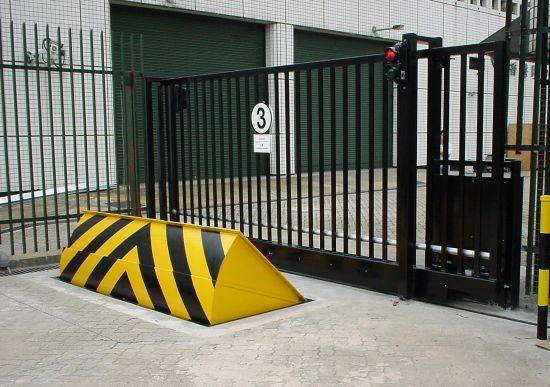

Road Blocker – Security Height 533 mm - Rising Kerb
Verified by manufacturer 5 months ago
Road Blocker - Security Height 533 mm. Security Road blocker - not impact rated.
Application
For car parks and traffic control at premises such as banks, embassies, bullion depots, cargo parks, ports, lorry parks and locations where vandalism is a risk.
Description
Road blockers offer an anti-ram, impact-resistant barrier to vehicle access and are well suited to high-security sites. They include a hydraulic control cabinet, which is recommended to be installed within 10 m of the road blocker system. Compliant with BS EN 13849.
Features and benefits:
- Added security to sites where vandalism is a risk.
- Security lock on the cabinet door.
- Reinforced hoses for long service life.
- Operational speed 3–4 seconds.
- Blocker foundations (l x w x d): (Blocker + 630 mm) x 800 x 465 mm.
General information
Color | Yellow Black Manufacturer guidanceYellow with black stripes. |
Finish | Painted Guidance for specification option: Anti-skid resistant treatment on road blocker top plate, polyurethane paint on skirt. |
Material | Steel Guidance for specification option: Heavy guage. |
Shape | Manufacturer guidanceWedge |
Length | Bespoke |
Width | Bespoke |
Height | 533 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q41/210 Vehicle flow plates Q41/212 Vehicle stops |
Product range |
Specification data - Rising kerbs
Standard | To BS 6571. |
Mounting type | Recessed.Guidance for specification option: Deep. |
Method of operation | Hydraulic. |
Dimensions | |
Profile | Wedge. |
Height | 533 mm. |
Span | Manufacturer guidanceMaximum 5000 mm; insert requirements. |
Material | Heavy gauge steel. |
Finish | |
Applied finish | Polyurethane paint. |
Colour | Black and yellow.Guidance for specification option: Yellow with black stripes. |
Electrical supply | Manufacturer guidanceThree phase. |
Accessories | None.Skirt lights. |
Safety | 100 mm LED traffic lights system. Guidance for specification option: Highly recommended to be installed with all Road Blocker systems. Audible alarms. Induction loop/ Vehicle detector loop system. Lasers. Light curtain. |
Access control | ANPR - Automatic number plate recognition. Audio intercom. Biodegradable oil. Card reader. Digital keypad. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
 IFC | IFC2X3 | 1 |
Literature
Road Blockers & Rising Kerbs Product Guide
Case studies
Frontier Pitts Security Height Roadblocker provides Anti-Ram Traffic Control protection to a Local Council Authority
