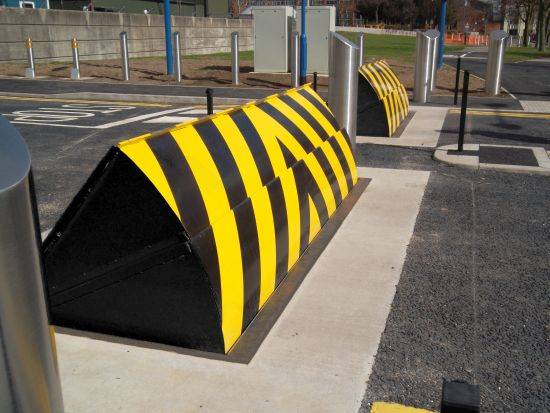

IWA 14 HVM Terra Blocker - 7.2t at 50 mph - HVM Blocker

Verified by manufacturer 22 days ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

IWA 14 HVM Terra Blocker - 7.2t at 50 mph.

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for high security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.

Description

The Terra Blocker has been impact tested to the IWA 14 Specification, stopping a 7.2 tonne vehicle travelling at 50 mph. Hydraulically driven Hostile Vehicle Mitigation (HVM) Blocker. Classification code: 7.2 t at 50 mph V/7200[N2A]/80/90:0.0. Zero penetration.

The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the road blocker system.


Features and benefits:

  • Made to order with size and safety system options available, depending on individual site risk assessments.
  • Compliant with BS EN 13849.
  • Secured by Design and a PSSA verified product.
  • Listed on the CPNI List of IWA 14 and PAS 68 products.

General information

Color

Black

Yellow

Finish

Painted

Guidance for specification option:

Shot blasted, galvanised, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Length

Bespoke

Width

Bespoke

Height

1000 mm

Warranty description

One year

Uniclass

Pr_25_30_86_72 Rising kerbsPrimary

CAWS

Q41/210 Vehicle flow plates

Q41/212 Vehicle stops

Product range

Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Rising kerbs

Standard

IWA 14; PAS 68.

Mounting type

Deep.

Method of operation

Hydraulically driven.

Dimensions

-

Height

1000 mm.

Guidance for specification option:

Lift height.

Span

Guidance for specification option:

Insert requirements, 2000–5000 mm.

Material

Mild steel.

Finish

-

Applied finish

Polyurethane painted.

Guidance for specification option:

Shot blasted, galvanised, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Colour

Black and yellow.

Electrical supply

Three phase.

Guidance for specification option:

Consult manufacturer for further details.

Accessories

None.

100 mm-diameter red/ green LED traffic light head with monitored safety circuit.

Anti-tamper alarms.

Extra fast operation.

High security cabinet.

Warning sign.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Secured By Design

Secured By Design

Secured by Design accredited

Literature

IWA 14 & PAS 68 HVM Terra Blockers

IWA 14 & PAS 68 HVM Terra Blockers
