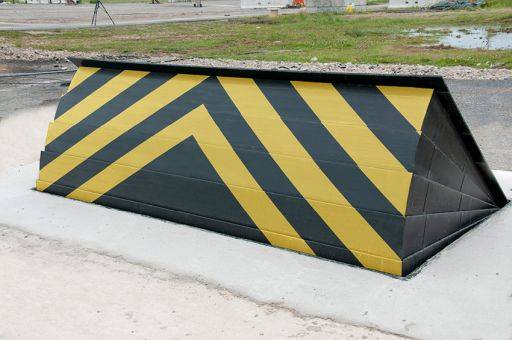

IWA 14 HVM Terra Shallow Blocker - 7.2t at 50 mph - HVM Anti Terrorist Shallow Blocker

Verified by manufacturer 1 month ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

The Terra Shallow Blocker has been impact-tested to the International IWA14 Specification, stopping a 7.2-tonne vehicle travelling at 50 mph with zero penetration. Impact rated

Jump to:
BOS
+44 (0)1293 548301 Website

Application

Suitable for high-security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.

Description

The Terra Shallow Blocker has been impact-tested to the International IWA14 Specification, stopping a 7.2-tonne vehicle travelling at 50 mph with zero penetration. This hydraulically-driven hostile vehicle mitigation (HVM) Blocker has an embedment depth of 300 mm, making it suitable for sites with foundation depth restrictions. It is a PSSA verified product and is Secured by Design accredited. Classification code V/7200[N2A]/80/90:0.1. The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the road blocker system.


Features and benefits:

  • All made to order with size and safety system options available depending on individual site risk assessments.
  • Compliant with BS EN 13849 and Secured by Design.
  • Listed on the CPNI List of IWA 14 and PAS 68 products.
  • Tested to IWA 14 with zero penetration and full functionality retained.
  • Shallow blocker ideal for inner-city sites.
  • Operational speed 4–6 seconds. Extra fast operation available, contact manufacturer for more information.

General information

Color

Yellow

Guidance for specification option:

And black.

Black

Guidance for specification option:

And yellow.

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Guidance for specification option:

Heavy gauge.

Shape

Other

Length

Bespoke

Width

Bespoke

Manufacturer guidance

up to 4000mm

Height

1000 mm

Warranty description

One year

Uniclass

Pr_25_30_86_72 Rising kerbsPrimary

CAWS

Q41/210 Vehicle flow plates

Q41/212 Vehicle stops

Product range

Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Rising kerbs

Standard

IWA14-1 IWA14-2.

Mounting type

Recessed.

Method of operation

Hydraulic.

Dimensions

-

Height

1000 mm.

Guidance for specification option:

For IWA14 Terra Shallow Blocker MkII.

Span

-

Manufacturer guidance

Insert requirement or refer to drawing. 4000 mm (maximum).

Material

Heavy guage steel.

Finish

-

Applied finish

Polyurethane painted.

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Colour

Black and yellow.

Electrical supply

400 V a.c.

Accessories

None.

100 mm diameter red/ green LED traffic light head system.

Extra fast operation.

Anti-tamper alarms.

Biodegradable oil.

High security cabinet.

Hydraulic oil.

Lights in skirt.

Warning sign.

Actuation/ Safety

Not required.

Audible alarms.

Flashing beacons.

Induction loop/ Vehicle detector loop system.

Light curtain.

Show more

Power fail operation

Accumulator.

Guidance for specification option:

Allows a number of operations in power failure mode.

Manual hand pump.

Guidance for specification option:

Standard.

Access control

ANPR – Automatic number plate recognition.

Audio intercom.

Card reader.

Digital keypad.

GSM intercom.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2015

1

IFC

IFC2X3

1

Third party certifications

Secured By Design

Secured By Design

Secured by Design accredited
