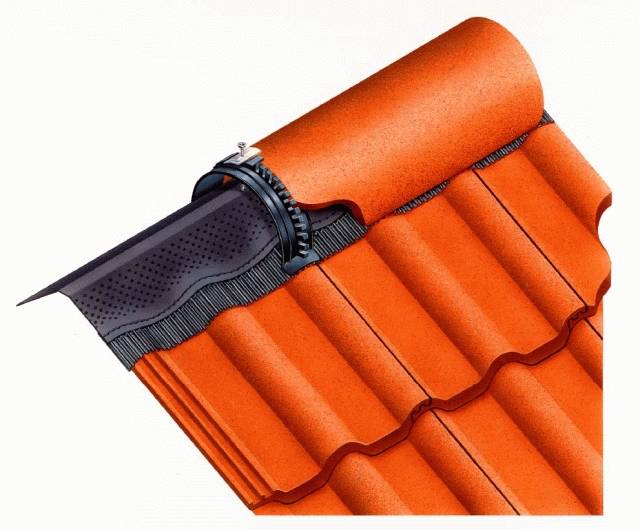

Ridge and Hip Dry-Fix Ventilation System
Verified by manufacturer 8 months ago
Dry-fix system to promote roof space ventilation at ridge and hip.
Application
For prepared ridge and hip configurations.
Description
Two-part system consisting of dry-fix roll-out ventilation membrane with corrugated flashings to both edges providing ventilation at high levels to satisfy statutory requirement. The product is also appropriate where supporting flow is required to aid ventilation via permeable underfelt to address NHBC directive.
Features and benefits:
- Accepts most popular ridge profiles.
- Eliminates wet trades.
- Provides statutory airflow.
- Ridge mechanically fixed.
General information
Color | Black Guidance for specification option: Black-Grey. Grey |
Material | Polypropylene |
Size | Guidance for specification option: (+ retaining gaskets). Manufacturer guidanceAvailable in wide rolls. |
Length | 6000 mm |
Width | 325 mm |
Uniclass | |
CAWS | H60/840 Ventilator tiles H60/86 Ventilator tiles H65/840 Ventilator tiles H65/86 Ventilator tiles |
Specification data - Roof ridge ventilator tiles
Purpose | Roof void ventilator. |
Colour | Black-Grey. |
Execution | Installing ridge terminals and ventilation tiles. |
Free airflow | 5000 mm². Guidance for specification option: In continuous run to each side. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
