Rhenofol® PVC-P Mechanically Attached Warm Roof System - Single Ply PVC-P Warm Roof System

Verified by manufacturer 13 days ago

Elevate EMEA Third party certifications:
  • EPD

    EPD

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A mechanically attached warm roof system based on the use of Rhenofol® PVC-P single ply roofing membrane.

Jump to:
+44 (0)1565 756186 Website

Application

Rhenofol® PVC-P Polyester reinforced single ply membrane system is suitble for warm roof constructions on commercial roofing projects. The system may be mechanically attached to several deck types using approved fasteners and plates.

Description

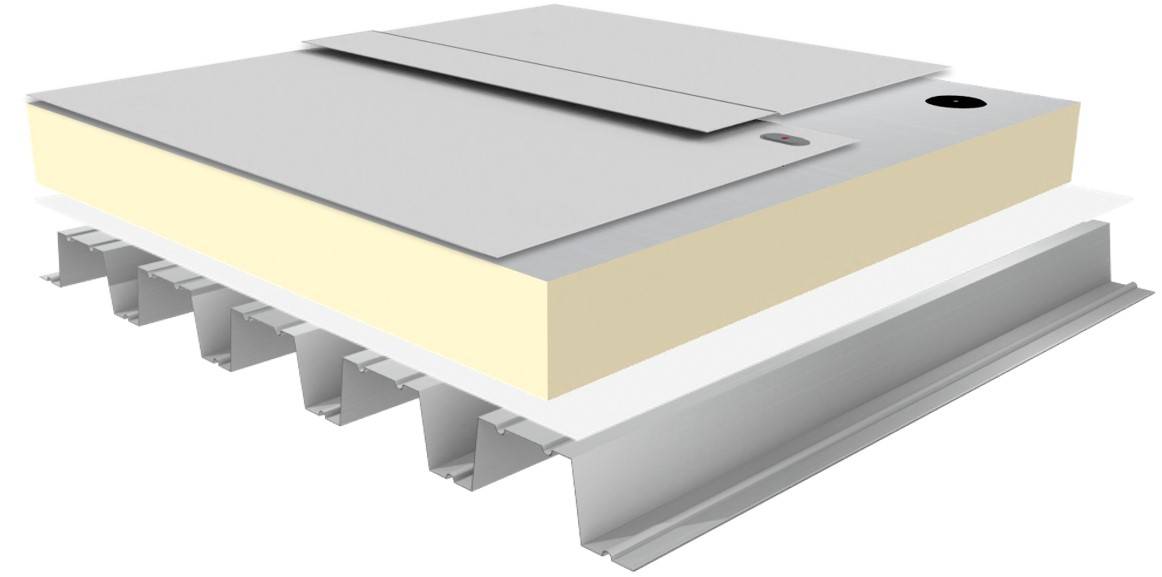

The Rhenofol® PVC-P Mechanically Attached Warm Roof System is a lightweight roof system. The highly durable polyester reinforced membrane is mechanically attached to the structural deck using approved fasteners and plates.



Features and benefits:

  • Lightweight system.
  • Hot-air welded seams.
  • Polyester reinforced.
  • Excellent resistance to ageing.
  • Economical.



System components:

  • Rhenofol® CV PVC-P Membrane.
  • Rhenofol® 90° inside corner.
  • Rhenofol® 90° outside corner.
  • Rhenofol® collar.
  • Rhenofol® universal collar.
  • Rhenofol® C detailing membrane.
  • Rhenofol® round standing seam section.
  • Rhenofol® paving tiles.
  • Rhenofol® sheet metal flashing.
  • Rhenofol® cold welding agent (THF).
  • Rhenofol® thinner D.
  • Rhenofol® paste.
  • Rhenofol® contact adhesive 20.
  • FDT VarioGully.
  • FDT emergency overflow drain.
  • FDT collars for FDT VarioGully.
  • FDT gravel/leaf guard.
  • FDT screw-in gravel/leaf guard retainer ring.
  • FDT oval sealing ring.
  • FDT roll ring.
  • FDT rainwater outlet.
  • FDT leaf guard.
  • FDT lip seal.
  • FDT parapet outlet.
  • FDT emergency overflow drain.
  • FDT support surround.
  • ISOGARD™ HD Cover Board.
  • DensDeck® Prime Cover Board.
  • ISOGARD™AK PIR Insulation.
  • V-Gard™ Air & Vapour Control layer.
  • SA-19 Primer.

General information

Color

Grey

Finish

Smooth

Material

Polyvinyl chloride (PVC)

Shape

Rectangle

Length

15000 mm

20000 mm

Width

1030 mm

1500 mm

2050 mm

Height

1.2 mm

1.5 mm

1.8 mm

2.0 mm

Manufacturer guidance

Thickness.

Warranty description

20 year

Uniclass

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

Specification data - Single layer sheet warm roof covering systems

Preparation

-

Horizontal work

The substrate will be securely fixed, clean, dry, smooth and free of contaminants such as greases, animal fats, coal tar and oil-based products. All sharp edges, nibs and rough surfaces which could damage the membrane will be removed or otherwise isolated.

Air and vapour control layer

-

Type

Elevate V-Gard ALU1500 Self-Adhesive Air & Vapour Control layer.

Guidance for specification option:

Self-adhesive to approved substrates (wood, steel).

Elevate V-Gard PE 200 Air & Vapour Control layer (Low Humidity Class Buildings Only) .

Guidance for specification option:

Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape.

Elevate V-Gard PE 200 E Air & Vapour Control layer (Low Humidity Class Buildings Only) .

Guidance for specification option:

Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape.

Elevate V-Gard PE 400 Air & Vapour Control layer (Low Humidity Class Buildings Only) .

Guidance for specification option:

Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape.

Attachment

As Type.

Guidance for specification option:

See Type guidance above for details.

Insulation

-

Type

ISOGARD™AK PIR insulation.

Guidance for specification option:

Available in thickness: 30–160 mm; insert requirements.

Thermal conductivity: 0.023 W/m·K.


Elevate ISOGARD AK insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gastight multi-layered aluminium complex.

Attachment

Insulation plates and fasteners (after laying waterproof covering).

Guidance for specification option:

Insulation boards or sections of boards, which are not sufficiently secured to the substrate, should be fixed with additional fasteners (minimum two fasteners per m²) prior to laying the roof membrane.

Separating layer

ISOGARD™ HD Cover Board.

DensDeck® Prime Cover Board.

Not required.

Manufacturer guidance

Cover boards may be placed between the insulation layer and the waterproofing membrane, usually in cases where an insulation material with a low compressive strength is specified.

Consult manufacturer for details and recommendations as required.

Waterproof covering

-

Type

Rhenofol® CV PVC-P Membrane, 1.2 mm.

Guidance for specification option:

Weight: 1.47 kg/m².


Can be supplied in rolls of:

  • 2.05 x 20 m;
  • 1.5 x 20 m;
  • 1.03 x 20 m.
  • 0.65 x 20 m.

Rhenofol® CV PVC-P Membrane, 1.5 mm.

Guidance for specification option:

Weight: 1.85 kg/m².


Can be supplied in rolls of:

  • 2.05 x 15 m;
  • 1.5 x 20 m;
  • 1.03 x 20 m.
  • 0.65 x 20 m.


Rhenofol® CV PVC-P Membrane, 1.8 mm.

Rhenofol® CV PVC-P Membrane, 2.0 mm.

Manufacturer guidance

  • Roofing membrane according to DIN EN 13956 resp. to DIN 16734.
  • Weather resistant.
  • Resistant to UV-radiation.
  • Resistant to flying sparks and radiant heat according to DIN 4107 resp. to DIN V ENV 1187, confirmed by official test  certificates.
  • Building materials class B2, DIN 4102 resp. class E, DIN EN 13501-1.
  • Resistant to standard exhaust gas from industrial and heating plants.
  • Outstanding resistance to natural ageing.
  • Not resistant to bitumen and tar containing materials; organic solvents such as  benzene, toluene, hydrogen-chlorides; fats, oils,
  • such as oily cements and forming oils. Not compatible with rigid polystyrene foam.
  • Hail resistant acc. to SIA 280.

Attachment

Insulation plates and fasteners.

Guidance for specification option:

The fastening pattern is chosen in line with the manufacturer's installation guidelines and to accommodate for wind loading.


Manufacturer's standard: Self-tapping screws with washer, to suit substrate/ insulation thickness.

Joints

Hot air welded seam.

Rhenofol® welding paste system.

Accessories

None.

Rhenofol® round standing seam section.

SA-19 Primer.

Guidance for specification option:

For priming seams.

Surface protection

Rhenofol® paving tiles.

None.

System accessories

None.

Rhenofol® C detailing membrane.

Rhenofol® 90° inside corner.

Rhenofol® 90° outside corner.

Rhenofol® collar.

Rhenofol® universal collar.

FDT collars for FDT VarioGully.

FDT gravel/leaf guard.

FDT leaf guard.

FDT screw-in gravel/leaf guard retainer ring.

FDT oval sealing ring.

FDT roll ring.

FDT lip seal.

Rhenofol® contact adhesive 20.

Rhenofol® paste.

FDT support surround.

Rhenofol® sheet metal flashing.

Rhenofol® thinner D.

Manufacturer guidance

See below for drainage options.

Drainage

Not required.

FDT VarioGully.

FDT emergency overflow drain.

FDT rainwater outlet.

FDT parapet outlet.

Corners

Corners formed using Rhenofol® CV membrane with Rhenofol® 90° inside/ outside corners.

Pipes

Pipe penetrations: Flash pipe with Rhenofol® C PVC-P membrane.

Walls

Wall terminations: Termination bar, fastened with Water Block Sealant and GP Sealant installed along top edge.

Wall terminations: Metal capping or concrete coping stones.

Wall terminations: Hot air welded to Rhenofol® sheet metal flashing.

Wall terminations: Using counterflashing.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polyvinyl chloride (PVC)

Manufacturing plant location

Recyclability

An Environmental Product Declaration (EPD) is available upon request.

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration - Rhenofol

BBA Agrément Certificate

BBA Agrément Certificate

Rhenofol PVC Roof Covering System

Literature

Rhenofol CV Brochure

Rhenofol CV Brochure
