Reveal Support Plate
Verified by manufacturer 4 months ago
BBA Agrément Certificate
Certificate type
BRE Certificate
Certificate type

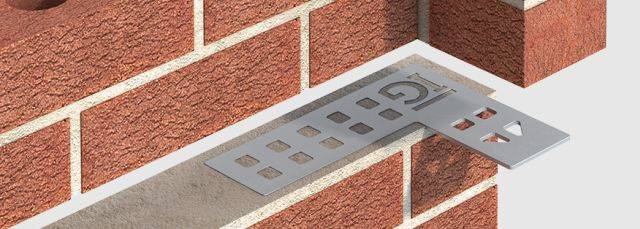

Reveal support plate is a stainless steel flat angled plate designed to support the brickwork that returns into the cavity.
Application
Only for use with bonded reveal brickwork.
Description
Reveal support plate is a stainless steel flat angled plate designed to support the brickwork that returns into the cavity. The stainless steel plate is placed in the bed joint of the outer leaf brickwork to support the projecting plate. The projecting plate then provides a stable platform to build the first course of reveal brickwork until it is strong enough to support itself.
To ensure stability, the reveal support plate should only be used in bonded masonry and the outer leaf should be built at least one course high on top of the plate, prior to the reveal brick being built.
Features and benefits:
- Standard stock product for 215 and 327.5 reveals.
- Bespoke designs available.
- Assists with the forming of brick reveals in a half brick wall.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option: Austenitic stainless Steel, Grade 1.4301 (304). |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | F30/260 Angle supports |
Specification data - Masonry angle supports
Material | Austenitic stainless steel.Guidance for specification option: Grade 1.4301 (304). |
Reveal depth | 215 mm. 327.5 mm. Bespoke. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Austenitic stainless Steel, Grade 1.4301 (304). |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Expected Life | 120 year |
Third party certifications
BBA Agrément Certificate
BBA ISO 9001:2015 Quality Management Systems - January 2024
BBA Agrément Certificate
BBA Keystone Group EN ISO 14001 2015 - October 2021
BBA Agrément Certificate
BBA UK Certificate of Conformity of the Factory Production Control – Aug 2023
BRE Certificate

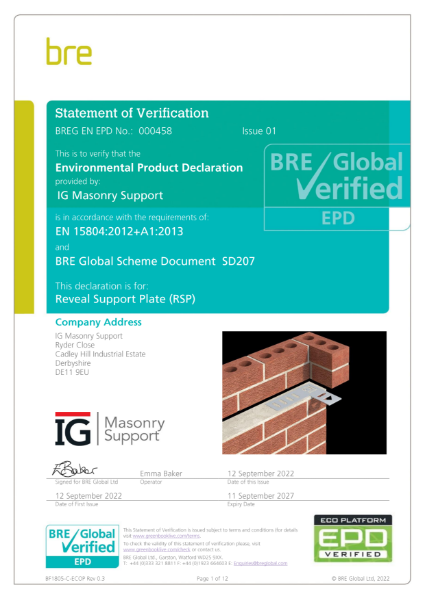

Reveal Support Plate - Environmental Product Declaration - September 2022
BRE Certificate
Reveal Support Plate (RSP)
