Masonry angle supports - BIM objects
Classification Pr_20_85_03_50.
Can't find what you're looking for?
Recently verified
Showing 1-19 of 19

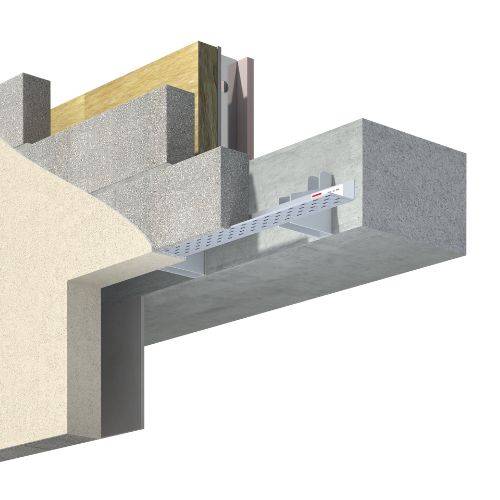

IG Welded Masonry Support (Plaster Key System)
Verified 4 days ago
IG Masonry Support Ltd
IG’s Welded Masonry Support (WMS) is a rigid masonry support system comprising fixed brackets welded to a stainless steel angle support shelf.
IG Welded Masonry Support (Standard System)
Verified 4 days ago
IG Masonry Support Ltd
IG’s Welded Masonry Support (WMS) is a rigid masonry support system comprising fixed brackets welded to a stainless steel angle support shelf.
IG Welded Masonry Support (Dropper System)
Verified 4 days ago
IG Masonry Support Ltd
IG’s Welded Masonry Support (WMS) is a rigid masonry support system comprising fixed brackets welded to a stainless steel angle support shelf.
IG Welded Masonry Support (Cavity Closer System)
Verified 4 days ago
IG Masonry Support Ltd
IG’s Welded Masonry Support (WMS) is a rigid masonry support system comprising fixed brackets welded to a stainless steel angle support shelf.
IG Welded Masonry Support (Inverted System)
Verified 4 days ago
IG Masonry Support Ltd
IG’s Welded Masonry Support (WMS) is a rigid masonry support system comprising fixed brackets welded to a stainless steel angle support shelf.
IG TITAN System
Verified 11 days ago
IG Masonry Support Ltd
IG's TITAN system is a bracket and shelf component masonry support system designed to accommodate masonry loads of up to 14 kN/m. Suitable for cavity widths from 70–200 mm.
ACS Azure II™ Bolt Ups
Verified 12 days ago
ACS Stainless Steel Fixings Ltd
Brick-face bolt-up soffit unit
ACS Masonry Support
Verified 19 days ago
ACS Stainless Steel Fixings Ltd
Conventional masonry support
Ancon MDC/I Masonry Support
Verified 21 days ago
Leviat
Bespoke stainless steel masonry support system with the support angle at the top of the bracket.
Ancon MDC/R Masonry Support
Verified 21 days ago
Leviat
Bespoke stainless steel masonry support system with a reversed angle welded to the bracket
IG Brick Slip Lintels - HD-BSL
Verified 1 month ago
IG Masonry Support Ltd
IG’s Brick Slip Lintels (BSL) are stainless steel, prefabricated units designed for openings of up to 3.6 metres (for longer spans, please contact our Technical Team).
IG Brick Panel System
Verified 1 month ago
IG Masonry Support Ltd
IG's Brick Panel System is a lightweight, A1 fire-rated, prefabricated brick slip soffit solution. It allows for deeper soffit designs while meeting Fire Safety: Approved Document B compliance.
Ancon Optima Standard Masonry Support
Verified 4 months ago
Leviat
Standard masonry support system comprising brackets, angles with pre-marked fixing zones and locking wedges.
Ancon MDC Masonry Support
Verified 5 months ago
Leviat
Stainless steel bracket-angle system to support masonry cladding.
IG Brick On Soffit System - B.O.S.S Soldier
Verified 6 months ago
IG Masonry Support Ltd
IG Brick On Soffit System (B.O.S.S.) is a prefabricated brick slip unit designed to be fixed to IG's Welded Masonry Support.
IG Brick Slip Lintels - XHD-BSL
Verified 6 months ago
IG Masonry Support Ltd
Brick Slip adhesion system applied to single leaf lintels.
IG Brick On Soffit System
Verified 7 months ago
IG Masonry Support Ltd
Prefabricated brick slip unit designed to be fixed to IG's welded masonry support.
IG Brick On Soffit System - B.O.S.S. A1
Verified 7 months ago
IG Masonry Support Ltd
IG's Brick On Soffit System (B.O.S.S. A1) is a lightweight, carbon neutral, mechanically fixed, A1 Fire Rated prefabricated brick slip unit designed to be fixed to IG's Welded Masonry Support.
IG Brick Slip Lintels
Verified 7 months ago
IG Masonry Support Ltd
IG Brick Slip Lintel is a prefabricated brick slip unit designed for openings up to 3.6 metres.
Showing 1-19 of 19
