IG Brick Panel System

Name: IG Brick Panel System
Brand: IG Masonry Support Ltd
SKU: afQD7VokEmAujk8tGTCvQg

Verified by manufacturer 16 hours ago

IG Masonry Support Ltd

Product certifications:

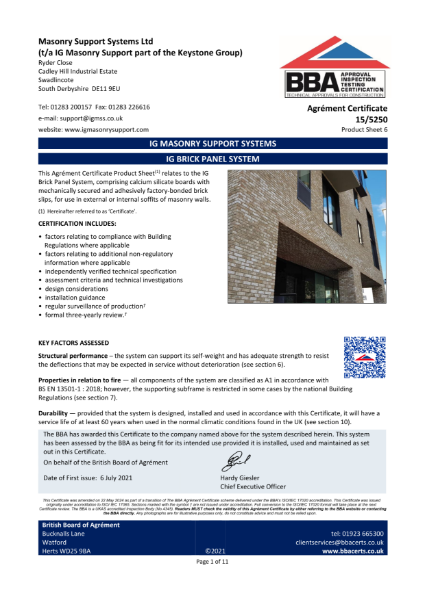

BBA Agrément Certificate
Certificate type
BBA Agrément Certificate
Certificate type
BBA Agrément Certificate
Certificate type

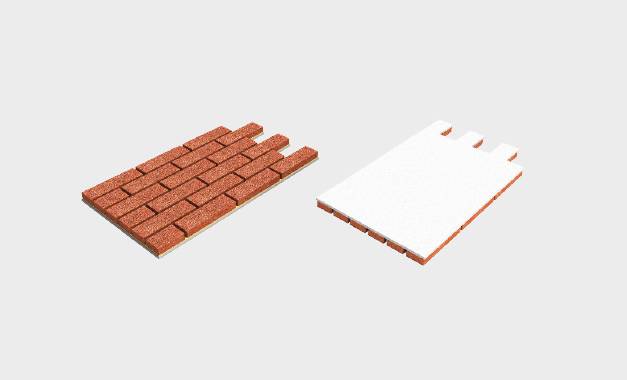

The IG Brick Panel System is a prefabricated, A1 fire-rated brick slip soffit panel system, enabling designers and specifiers to add depth and visual flair to a masonry façade.

Jump to:

BOS

+44 (0)1283 200 157 Website

Application

Brick soffits and deep reveals are increasingly popular with architects who want to add depth and visual flair to a masonry façade. IG’s Brick Panel System offers a solution that delivers the desired aesthetic, with a hidden substructure that creates the impression of unsupported brickwork.

The IG Brick Panel System is satisfactory for use on external and internal soffits of buildings. The interlocking panels remove the need for brick cutting or bonding slips onsite. For added security, the brick slips are secured to the brick carrier with a robust and patented mechanical fix.

Each panel fixes to a subframe, which must be designed by a qualified design engineer suit the building type. Once pointed, the IG Brick Panel System blends with the surrounding traditional brickwork, achieving both design intent and performance requirements.

Description

The IG Brick Panel System is a prefabricated and A1 fire-rated brick slip panel system which can be used on all building heights and types.

The interlocking panels are prefabricated components and are delivered to site complete with brick slips adhesively bonded and mechanically secured to the brick carrier unit.

These BBA-certified panels are manufactured completely from A1 fire rated materials and are Approved Document B:Fire Safety compliant.

General information

Color	- Manufacturer guidance Subject to brick selection.
Finish	Other Guidance for specification option: Seamless - Creates seamless floating brick illusion to suit any soffit size and bond pattern to suit the design of the building.
Material	Brick Guidance for specification option: Facing. Calcium silicate Guidance for specification option: A1 rated, BBA certified. Manufacturer guidance Varied materials can be used to suit specific project requirements and numerous bond patterns can be achieved.
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_20_85_03_50 Masonry angle supportsPrimary
CAWS	F30/260 Angle supports F30/290 Proprietary special fixings F30/265 Support systems F10/5 Facing brickwork F10/110 Clay facing brickwork

SKU Code	ZBSSP

Product range	Brick Slip Systems

Specification data - Masonry angle supports

Classification data
Material	Calcium silicate, brick, stainless steel.
Components, arrangement and dimensions	As shown on drawings.
Bond pattern	Stretcher Bond. Flemish Bond. English Bond. Bespoke. Guidance for specification option: Bespoke solutions including other brick arrangements can be designed to suit specific project requirements. Units are fabricated into manually handleable panels designed to suit the soffit size and design of the building. Units are toothed to align with the respective bond pattern and effortlessly achieve a seamless finish.
Fire performance	To BS EN 13501-1, A1 fire rated.
Fixings	Stainless steel mechanical fixing and end clip.

Sustainability data

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Manufacturing plant location	Park Rd, Overseal, Swadlincote, UK
Material	Brick Guidance for specification option: Facing. Calcium silicate Guidance for specification option: A1 rated, BBA certified. Manufacturer guidance Varied materials can be used to suit specific project requirements and numerous bond patterns can be achieved.
Recyclability	=
Expected Life	60 year
