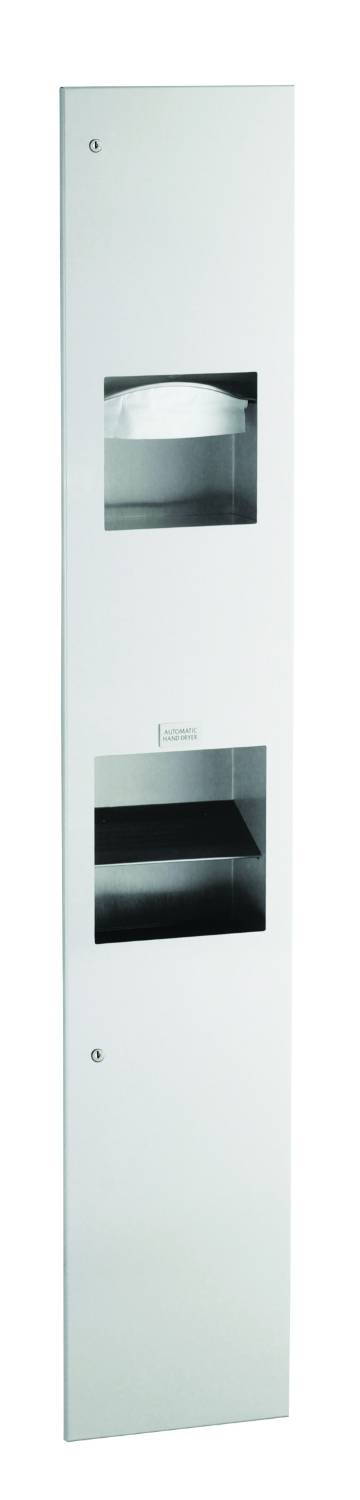

Recessed Paper Towel Dispenser/ Automatic Hand Dryer/ Waste Receptacle 815969
Verified by manufacturer 10 months ago
Three-in-one convertible folded paper towel dispenser with built-in hand dryer and 3.3 gallon (12.5 L) waste bin.
Application
Recess mounted.
Description
Features and benefits:
- Satin-finish stainless steel.
- Built in TowelMate®.
- Tumbler locks flush with the door.
- Door has 90° return, conceals flange.
- Dispenses 450 C-fold, 600 multi-fold or 850 single-fold towels.
- Removeable leak-proof, 3.3 gal. (12.5 L) waste container.
- Hand dryer: 220-240 V a.c., 7 Amp., 1500-1700 Watts, 50/60 Hz, Single Phase.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 1829 mm |
Width | 330 mm |
Height | 157 mm |
Warranty description | Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/725 Installing hand dryers N13/472 Hand dryers N13/59 Paper towel dispensers N13/64 Hand dryers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Recess wall-mounted. |
Towels | |
Towel type | Folded. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Integral accessories | Waste bin.Guidance for specification option: 12.5 L Hand dryer.Guidance for specification option: Hand dryer: 220-240 V a.c., 7 Amp., 1500-1700 Watts, 50/60 Hz, Single Phase. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
TrimLineSeries™ Brochure
Washroom Accessories
Recessed hand dryer, paper towel dispenser and waste receptacle (3-in-1 unit)
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
