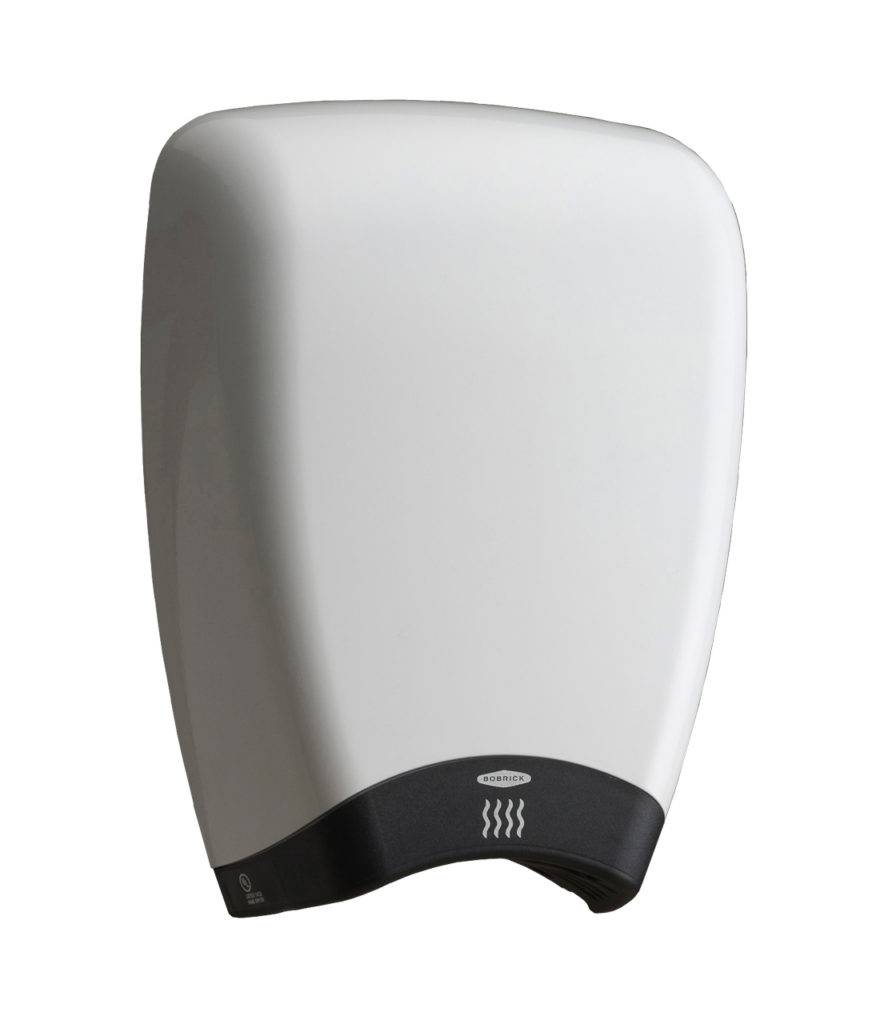

QuietDry™ Series, TerraDry™ ADA Surface-Mounted Hand Dryer B-7180

Name: QuietDry™ Series, TerraDry™ ADA Surface-Mounted Hand Dryer B-7180
Brand: Bobrick Washroom Equipment Ltd
SKU: paqeRrfmpZ1MQ1UjJ4Xcsr

Verified by manufacturer 10 months ago

Surface mounted hand dryer with 1 kW power rating

Jump to:

Application

Surface/ wall mounted.

Features and benefits:

Aluminium die-casting surface mounted hand dryer with white high-gloss epoxy finish electrostatically applied.
Uniquely designed to have a sound pressure level of 70 dB(A) measured at 39″ (1 m) from source and a power rating of 1.0 kW.
115 V a.c.: 8.5 Amp, 50/60 Hz, 1000 Watts, Single Phase, CU listed.
208–240 V a.c.: 4.0-4.4 Amp, 50/60 Hz, 1000–1900 Watts, Single Phase, CU listed and CE marked.
To download a professional decibel meter to your smartphone select App Store or Google Play button.

Color	White
Finish	Gloss
Material	Aluminium
Length	351 mm
Width	259 mm
Height	100 mm
Warranty description	One year Guidance for specification option: In addition to Bobrick’s one-year guarantee, Bobrick extends a limited 10 year warranty from the date of purchase for Model B-7180 and B-7188 hand dryers on all parts, except motor brushes, to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick. Motor Brushes: Warranted for 3 years from date of purchase. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.

Uniclass	Pr_40_70_62_37 Hand dryersPrimary
CAWS	N13/725 Installing hand dryers N13/472 Hand dryers N13/64 Hand dryers

Form	Warm air.
Operation	Automatic.
Timer	Fixed.
Electrical supply	-
Power rating	1 kW.
Rated operational voltage (Ue)	110 V a.c. 230 V a.c.
Frequency	50/60 Hz.
Body	-
Material	Aluminium.
Finish	Gloss Epoxy.
Colour	White.
Dimensions	351 x 259 x 100 mm
Noise level at 1 m (maximum)	70 dB(A).
Features	Hands only.
