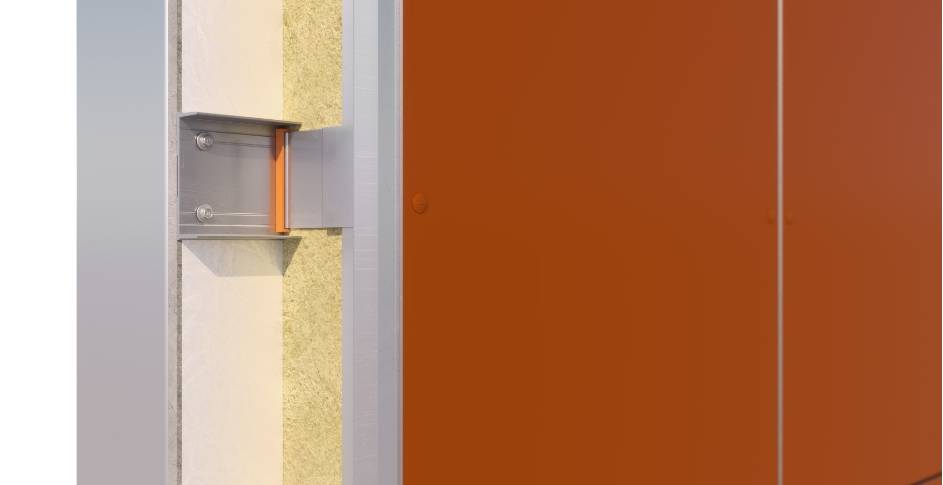

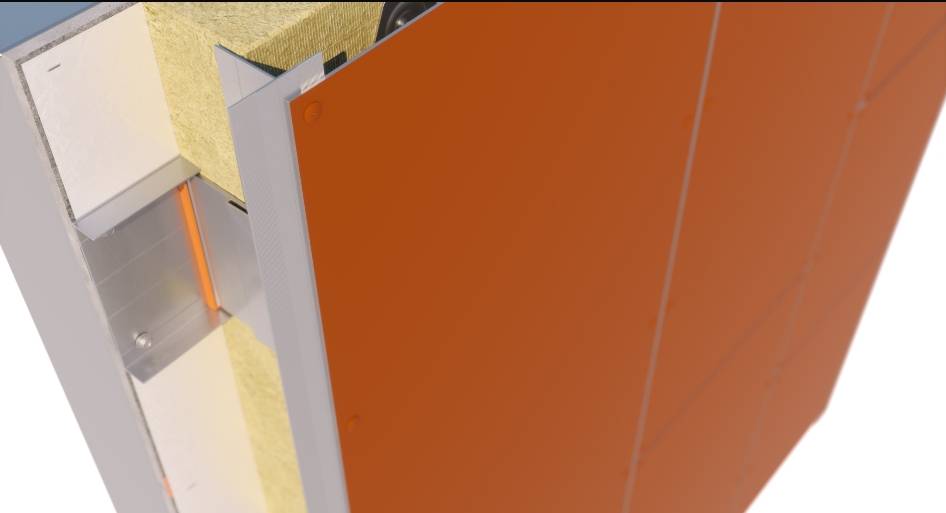

Rainscreen Cladding Optima FlatFix System (Discreet Fix) - Flat Plate Rainscreen Cladding System

Name: Rainscreen Cladding Optima FlatFix System (Discreet Fix) - Flat Plate Rainscreen Cladding System
Brand: Sotech Ltd
SKU: sSzKjEtPdg5QnAM1DQPTHH

Verified by manufacturer 15 hours ago

Sotech Ltd

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type

Flat plate rainscreen cladding available in a range of materials, providing weather protection, long-term durability and aesthetic appeal to a building.

Jump to:

Request BIM

+44 (0)191 587 9213 Website

Application

Suitable for both new builds and refurbishments, integrating seamlessly with a range of architectural fabrications. The system is drained and ventilated with an open joint-series.

Description

Flat plate rainscreen cladding available in a range of materials, providing weather protection, long-term durability and aesthetic appeal to a building.

Features and benefits:

Independently tested: certified to CWCT Sequence B with UKAS accreditation by UL Solutions.
Drained and ventilated: features an open-joint series of panels creating an effective weather shield.
Non-adhesive fixing methods: For true A1 and A2 cladding, mechanical fixing methods are solely used to avoid the use of adhesives.
Face fix fixing: uses colour-matched stainless steel fixings with a low profile head for a discreet finish.
Lightweight and durable: reduces handling time, labour costs, and installation complexity.
Seamless integration: engineered to integrate with all other building facade elements.
Comprehensive range: offers a full range of Euroclass A1 and A2–s1,d0 panel materials from 2–4 mm.
System guarantees: available upon request.
Technical arrangement details: available on manufacturer's website.
CAD details: available upon request.

General information

Color	Other Beige Black Blue Bronze Brown Copper Cream Green Gold Grey Ivory Orange Pink Purple Silver Red Turquoise White Yellow Show more
Finish	Anodized Powder-coated Natural Painted Stainless steel
Material	Aluminium Composite Copper Zinc
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Classification data
Thermal insulation	- Manufacturer guidance Full range of bracket zones to accommodate specified thickness of rockwool insulation. Insert requirements or omit.
Breather membrane	-
Material	Guidance for specification option: By installer; insert requirements or omit.
Fasteners	Guidance for specification option: By installer; insert requirements or omit.
Secondary support structure	Fully adjustable aluminium support structure.
Cavity fire barriers	-
Horizontal	Guidance for specification option: By others, Siderise tends to be used in manufacturer's fire tests. Insert requirements or omit.
Vertical	Guidance for specification option: By others, Siderise tends to be used in manufacturer's fire tests. Insert requirements or omit.
Cladding panels	-
Material	Aluminium, anodized. Guidance for specification option: A1 rated finish. Aluminium, polyester powder-coated. Guidance for specification option: A2 rated finish. Aluminium, pre-painted panels. Guidance for specification option: A1 rated finish. Alpolic A1, aluminium composite finish. Guidance for specification option: A1 rated finish. ACM A2, aluminium composite panel. Guidance for specification option: A2 rated finish. Copper panels. Guidance for specification option: A1 rated material. Stainless steel panels. Guidance for specification option: A1 rated material. Zinc panels. Guidance for specification option: A1 rated material. Manufacturer guidance From 2–4 mm thick; consult manufacturer for more details and insert requirements.
Panel joints	Open joints.
Reveals	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Consult manufacturer for more details and insert requirements or omit.
Fixings	Face Fix, stainless steel fixings. Guidance for specification option: Colour matched and with a low profile head for discreet finish.
Colour	- Manufacturer guidance Consult manufacturer for more details and insert requirements.
Reaction to fire	- Manufacturer guidance A1 to A2–s1,d0 depending on selection; consult manufacturer for more details and insert requirements.
Third-party certification	Certified to CWCT Sequence B with UKAS accreditation.
