Rainline Natural Copper Rainwater System
Verified by manufacturer 1 month ago

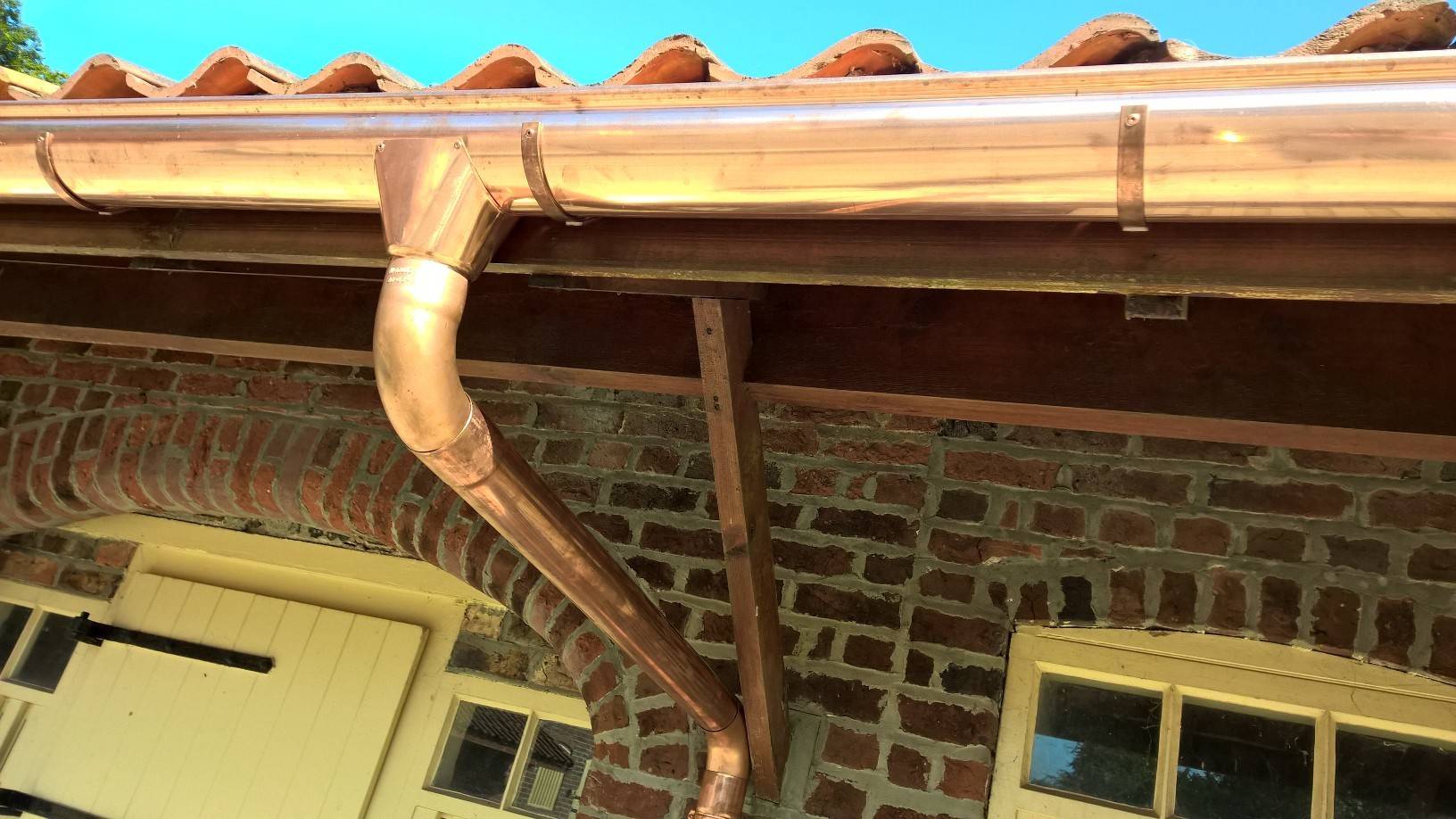

Rainline gutter and pipe system in uncoated copper.
Application
For use in varying applications, including:
- Large or small roof areas.
- Classic or contemporary buildings.
- Domestic or commercial use.
When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.
Description
Rainline gutter and pipe system in uncoated copper.
Features and benefits:
- Provides a high level of corrosion resistance.
- Will transition to a greenish verdigris patina.
- Low carbon footprint and low overall environmental impact.
- Durable and flexible.
- Minimal maintenance required.
- Highly resistant to vandal attack; further reinforcement can be added if required.
- UV-stable.
- Gutters available in four sizes, pipes available in four sizes.
- Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
- Manufactured in accordance with BS EN 12056-3: 2000.
General information
Color | Copper |
Finish | Copper |
Material | Copper |
Shape | Circle |
Length | 3000 mm |
Width | 100 mm 125 mm 150 mm |
Height | 100 mm 125 mm 150 mm |
Warranty description | Other |
Uniclass | |
CAWS | R10/110 Gravity rainwater drainage system |
Specification data - External gravity rainwater drainage systems
System performance | To BS EN 12056-3: 2000. |
Eaves gutters | |
Gutters | |
Gutter types | Rainline Natural Copper Gutters Half-round - 100 mm.Rainline Natural Copper Gutters Half-round - 125 mm.Rainline Natural Copper Gutters Half-round - 150 mm.Rainline Natural Copper Gutters Half-round - 190 mm.Rainline Natural Copper Gutters Rectangular - 140 mm. |
External rainwater pipework | |
Rainwater downpipes | |
Downpipe types | Rainline Natural Copper Rainwater Downpipe, 75 mm.Rainline Natural Copper Rainwater Downpipe, 87 mm.Rainline Natural Copper Rainwater Downpipe, 100 mm.Rainline Natural Copper Rainwater Downpipe, 120 mm.Manufacturer guidanceAvailable in 1000 or 3000 mm lengths. Insert requirements. |
Supports | |
Brackets and clips | SHVA downpipe bracket. |
System accessories | Manufacturer guidanceSelection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes etc are available dependent on size. Consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | Copper |
Manufacturing plant location | |
Recyclability | Fully recycleable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
Expected Life | 40 year |
Literature
Lindab Rainline Technical Guide
Rainwater Assembly Instuctions
Rainwater Inspiration
