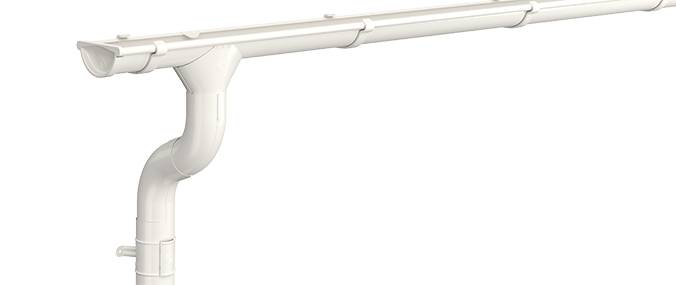

Rainline Painted Steel Rainwater System

Name: Rainline Painted Steel Rainwater System
Brand: Lindab Ltd
SKU: iuf5GcFdTFh645aU2Tnq6T

Verified by manufacturer 5 months ago

Lindab Ltd

Third party certifications:

EPD
Certificate type

Rainline steel gutter and pipe system painted in a range of 15 colours and finishes.

Jump to:

+44 (0)1604 788350 Website

Application

For use in varying applications, including:

Large or small roof areas.
Classic or contemporary buildings.
Domestic or commercial use.

When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline steel gutter and pipe system painted in a range of 15 colours and finishes.

Features and benefits:

Low carbon footprint and low overall environmental impact.
Durable and flexible.
Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
Minimal maintenance required.

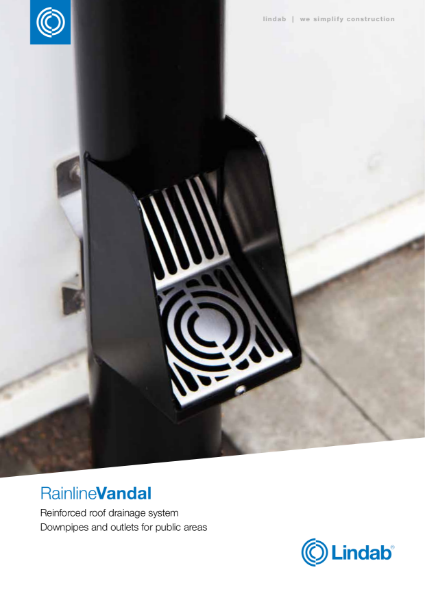

Highly resistant to vandal attack; further reinforcement can be added if required.
UV stable.
Gutters available in two shapes, five sizes. Pipes available in four sizes.
Twelve gloss colour options and three matte colour options are available.
Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
Supplied with a 15-year warranty.
Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color	Grey White Black Brown Red Silver Show more
Finish	Galvanized Painted
Material	Steel Guidance for specification option: Roll formed, 0.6 mm steel with solid seam.
Length	3000 mm 2000 mm
Width	100 mm 125 mm 150 mm 190 mm
Warranty description	15 year

Uniclass	Ss_50_30_02_28 External gravity rainwater drainage systemsPrimary
CAWS	R10/110 Gravity rainwater drainage system

Specification data - External gravity rainwater drainage systems

System performance	To BS EN 12056-3: 2000.
Eaves gutters	-
Gutters	-
Gutter types	Rainline Painted Gutter Half-round - 100 mm. Rainline Painted Gutter Half-round - 125 mm. Rainline Painted Gutter Half-round - 150 mm. Rainline Painted Gutter Half-round - 190 mm. Rainline Painted Gutter Rectangular - 140 mm.
Jointing	RSK gutter joint with rubber seal. Guidance for specification option: For Half round. RTSK rectangular gutter joint with rubber seal, 140 mm. Guidance for specification option: For RTSK rectangular gutter joint with rubber seal, 140 mm.
Supports	-
Brackets	K07 70 mm flex-fit fascia bracket, 100 mm. K16 160 mm flex-fit rafter bracket, 100 mm. KFK fascia bracket, 100 mm. KFL 200 mm rafter bracket, 100 mm. KLK adjustable fascia bracket, 100 mm. RFKF rise and fall bracket, 100 mm. RTK07 rectangular 70 mm flex-fit fascia bracket, 140 mm. Guidance for specification option: For RTSK rectangular gutter joint with rubber seal, 140 mm. RTK21 rectangular 210 mm rafter bracket, 140 mm. Guidance for specification option: For RTSK rectangular gutter joint with rubber seal, 140 mm.
Chutes	-
Materials	Steel, OMV/OK gutter outlet, 100 x 75 mm. Steel, OMV/OK gutter outlet, 100 x 87 mm. Steel, RTOK rectangular outlet, 140 x 75 mm. Guidance for specification option: For RTSK rectangular gutter joint with rubber seal, 140 mm. Steel, RTOK rectangular outlet, 140 x 87 mm. Guidance for specification option: For RTSK rectangular gutter joint with rubber seal, 140 mm. Steel, RTOK rectangular outlet, 140 x 100 mm. Guidance for specification option: For RTSK rectangular gutter joint with rubber seal, 140 mm.
External rainwater pipework	-
Rainwater downpipes	-
Downpipe types	Rainline Rainwater Downpipe, 75 mm. Rainline Rainwater Downpipe, 87 mm. Rainline Rainwater Downpipe, 100 mm.
Supports	-
Brackets and clips	SST spike for pipe bracket, 125 mm. SST spike for pipe bracket, 175 mm. SST spike for pipe bracket, 250 mm. SST spike for pipe bracket, 300 mm. SSVU universal pipe bracket.
System accessories	- Manufacturer guidance Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes etc are available dependent on size. Consult manufacturer for details.

Colour/ Finish	Painted, RAL 7016 gloss finish. Painted, RAL 9007 metallic finish. Painted, RAL 9002 gloss finish. Painted, RAL 9011 gloss finish. Painted, RAL 8017 gloss finish. Painted, RAL 8019 gloss finish. Painted, RAL 7011 gloss finish. Painted, RAL 3009 gloss finish. Painted, RAL 9006 metallic finish. Painted, RAL 8004 gloss finish. Show more

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	Steel Guidance for specification option: Roll formed, 0.6 mm steel with solid seam.
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	30 %
Expected Life	60 year
