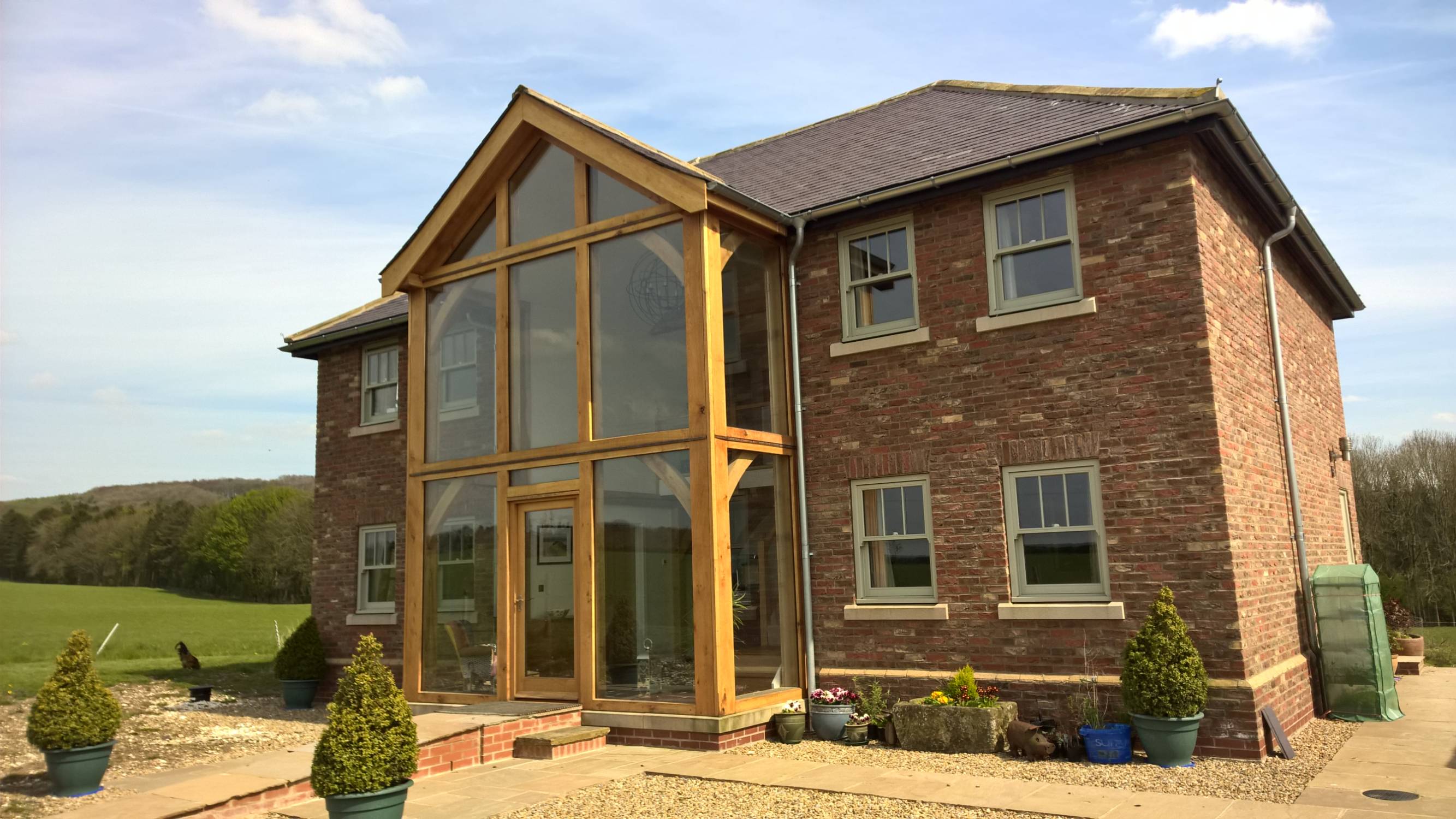

Rainline Magestic Galvanised Steel Rainwater System
Verified by manufacturer 4 months ago
EPD
Certificate type
Rainline steel gutter and pipe system with an unpainted, galvanised surface finish.
Application
For use in varying applications, including:
- Large or small roof areas.
- Classic or contemporary buildings.
- Domestic or commercial use.
When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.
Description
Rainline steel gutter and pipe system with an unpainted, galvanised surface finish.
Features and benefits:
- Provides an attractive, organic aesthetic.
- Will weather to a dark grey, metallic appearance within 3–5 years after installation.
- Low carbon footprint and low overall environmental impact.
- Durable and flexible.
- Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
- Minimal maintenance required.
- Highly resistant to vandal attack; further reinforcement can be added if required.
- UV-stable.
- Gutters available in four sizes, pipes available in four sizes.
- Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
- Supplied with a ten-year warranty.
- Manufactured in accordance with BS EN 12056-3: 2000.
General information
Color | Grey Silver |
Finish | Galvanized |
Material | Steel |
Shape | Circle Rectangle |
Length | 3000 mm 2000 mm |
Width | 100 mm 125 mm 150 mm 190 mm |
Height | 50 mm 63 mm 75 mm 95 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | R10/110 Gravity rainwater drainage system |
Specification data - External gravity rainwater drainage systems
System performance | To BS EN 12056-3: 2000. |
Eaves gutters | |
Gutters | |
Gutter types | Rainline Magestic Galvanized Gutter Half-round - 100 mm.Rainline Magestic Galvanized Gutter Half-round - 125 mm.Rainline Magestic Galvanized Gutter Half-round - 150 mm.Rainline Magestic Galvanized Gutter Half-round - 190 mm.Rainline Magestic Galvanized Gutter Rectangular - 140 mm. |
Jointing | RSK gutter joint with rubber seal.Guidance for specification option: For Half round. RTSK rectangular gutter joint with rubber seal.Guidance for specification option: For Rectangular - 140 mm. |
External rainwater pipework | |
Rainwater downpipes | |
Downpipe types | Rainline Magestic Galvanized Rainwater Downpipe, 75 mm.Rainline Magestic Galvanized Rainwater Downpipe, 87 mm.Rainline Magestic Galvanized Rainwater Downpipe, 100 mm. |
Supports | |
Brackets and clips | SST spike for pipe bracket, 125 mm.SST spike for pipe bracket, 175 mm.SST spike for pipe bracket, 250 mm.SST spike for pipe bracket, 300 mm.SSVU universal pipe bracket. |
System accessories | Manufacturer guidanceSelection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes etc are available dependent on size. Consult manufacturer for details. |
Colour/ Finish | Painted, RAL 7016 gloss finish. Unpainted galvanized finish. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | Steel |
Manufacturing plant location | |
Recyclability | Fully recycleable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
Expected Life | 50 year |
