Multilevel loop carpet pile.
Designed for heavy commercial use.
A multilevel level loop pile carpet tile, designed for heavy commercial use. Made from 100% Econyl® regenerated recyclable solution dyed nylon.
Features and benefits:
Color | Manufacturer guidanceRange of colours available. |
Material | Nylon Guidance for specification option: 100% solution-dyed Aquafil Econyl nylon. |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 7.5 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
Style | Loop pile.Guidance for specification option: Multilevel level loop pile carpet tile. |
Classification | |
Standard | To BS EN 1307. |
Level of use class | To BS EN 1307, class 33. |
Recycled content | 50% (minimum) to BS EN ISO 14021. |
Product Reference | rainfall |
Colour | 22901 light. 22902 shade. 22903 dark. 22904 deep. 22905 stone. |
Weight | 4300 g/m². |
Thickness | 7.5 mm. |
Flammability | Euroclass Bfl-s1. |
Castor chair rating (to BS EN 985) | Pass. Guidance for specification option: suitable for continuous use |
Static loading (to BS 4939:1987 (2003)) | Recovery >80% (24 hours). |
Dynamic loading (to BS ISO 2094:1999 (2005)) | Loss <20% (1000 impacts). |
Static electricity | Body voltage test (to BS ISO 6356:2000): <2 kV. |
Colour fastness | Light (to BS EN ISO 105 – BO2): grade 6 (minimum); shampoo (to BS 1006: UK-TB:1990): grade 4–5 (minimum). |
Thermal resistance | Tog rating 0.54; ISO 8302:1991 0.07 m²K/W. |

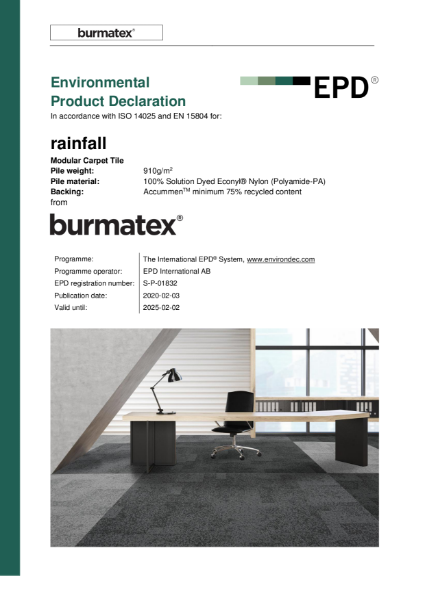

Environmental specifics | EPD-assessed. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.70 kg CO₂ eq/m² |
Recyclability | 100% |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
Revit 2016 | 1 | |
- | 1 |
