36301 - Titanium Ore

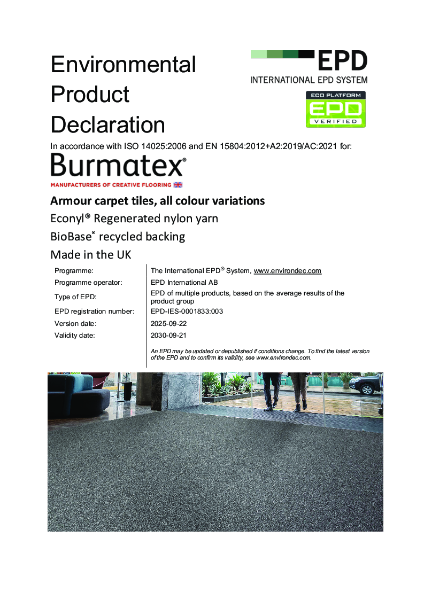

EPD
Certificate type

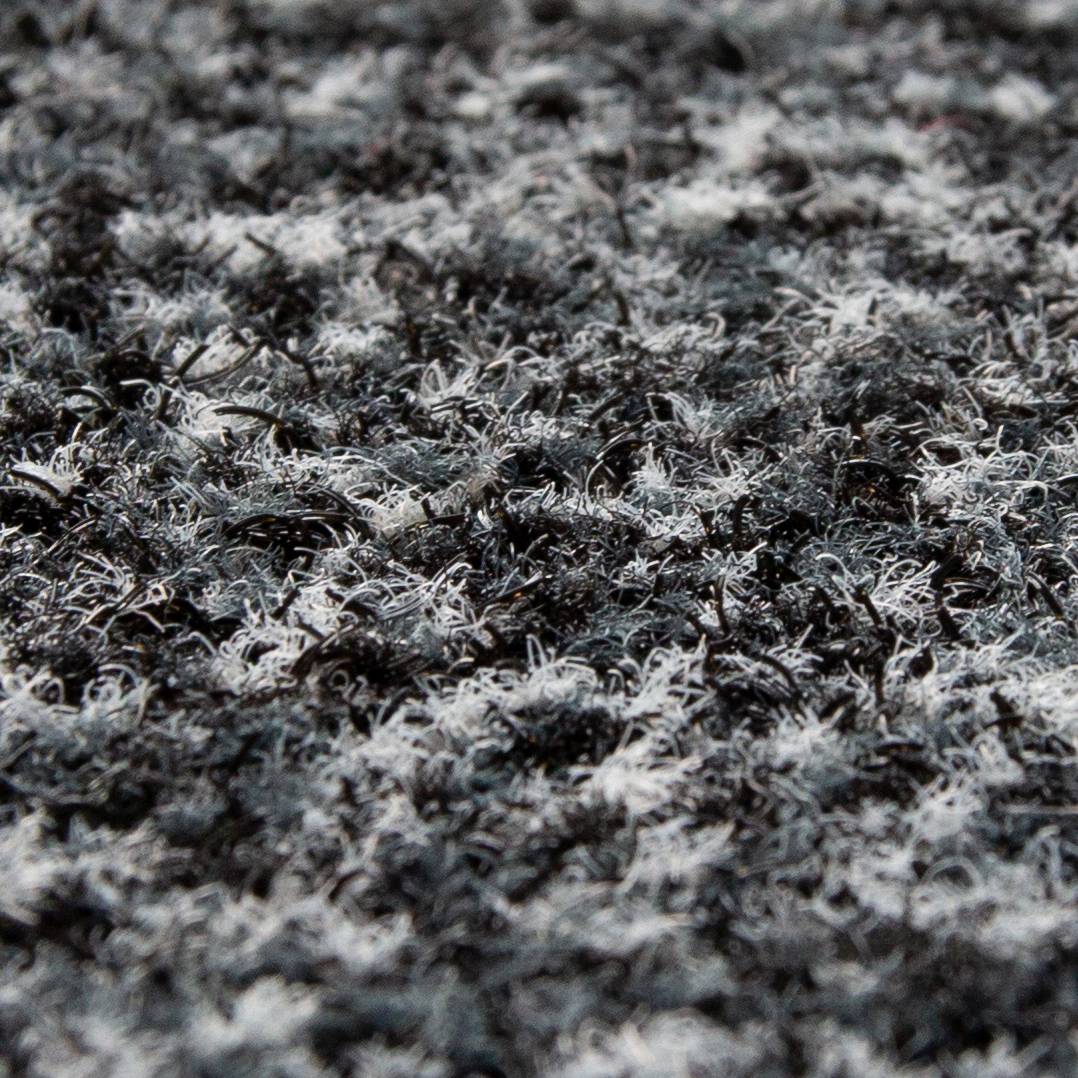

armour is engineered using our three-stage advanced sustainable yarn protection system, made with 100% regenerated recyclable yarns, to deliver superior entrance performance.

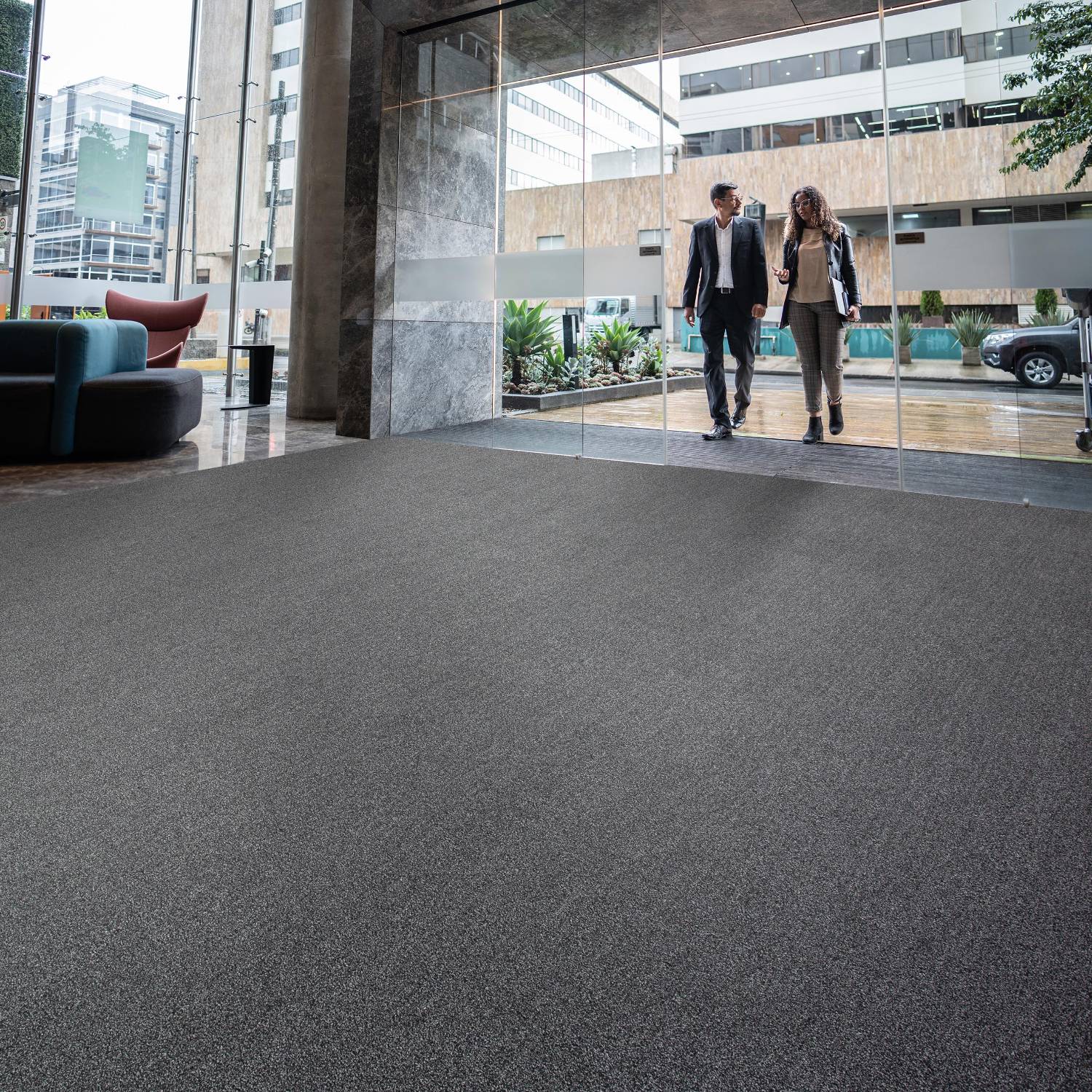

Ideal for secondary entrance areas, lobbies, lifts and staircases, armour protects internal flooring using both scraper yarns and absorbent yarns to prevent up to 90% of dirt and moisture being tracked into buildings.
Moisture-absorption fibres draw water from footwear, preventing it from being tracked into interior spaces, while precision-designed scraper yarn actively removes grit and debris at the building entrance. Finally, its high-denier yarn structure provides exceptional durability and wear resistance for long-term performance.
Made from 100% Econyl® regenerated solution dyed nylon yarn and our unique BioBase® recycled backing, armour is low carbon.
Features and benefits:
Color | Brown Silver Black Grey Blue Manufacturer guidanceRange of colours available. |
Finish | Textured |
Material | Nylon Guidance for specification option: 100% Solution Dyed Nylon (Polyamide-PA). |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 10 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
SKU Code | 36301 |
Classification data | |
Product reference | Armour - Carpet Tile. |
Style | Performance barrier system. |
Material | Nylon. Guidance for specification option: 100% solution dyed nylon (Polyamide-PA). |
Classification | |
Standard | To BS EN 1307. |
Level of use class | To BS EN 1307, class 33. |
Luxury rating class | LC3. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50% (minimum) to BS EN ISO 14021. |
Size | 500 x 500 mm. |
Colour and pattern | Titanium ore. |
Colour (Light reflectance value (LRV) | 9.98. |
Weight | 4500 g/m². |
Thickness | 10 mm. |
Flammability | Euroclass Bfl-s1. |
Wear classification (to BS EN 1307) | Class 33. Guidance for specification option: heavy commercial use |
Castor chair rating (to BS EN 985) | Pass. Guidance for specification option: suitable for continuous use |
Static loading (to BS 4939:1987 (2003)) | Recovery >80% (24 hours). |
Dynamic loading (to BS ISO 2094:1999 (2005)) | Loss <20% (1000 impacts). |
Static electricity | Body voltage test (to BS ISO 6356:2000): <2 kV. |
Colour fastness | Light (to BS EN ISO 105 – BO2): grade 6 (minimum); shampoo (to BS 1006: UK-TB:1990): grade 4–5 (minimum). |
Environmental specifics | EPD-assessed. |
Backing | BioBase® recycled backing (recycled BS EN ISO 14021). |
Castor chair rating | Pass. |
Dynamic loading | Loss <20%>. |
Gauge | 1/10th gauge 28 stitches. |
Hexapod | 3 to 4. |
Pile density | 110,236 /m². |
Pile yarn weight | 920 g/m². |
Tiles per box | 16 (4 m²). |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Nylon Guidance for specification option: 100% Solution Dyed Nylon (Polyamide-PA). |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 4.01 Lower emissions | |
Recyclability | 100% |
