Quasar eLite - Qe606030
Verified by manufacturer 17 days ago
ISO 9001 Quality Management
Certificate type
QA Certificate
Certificate type

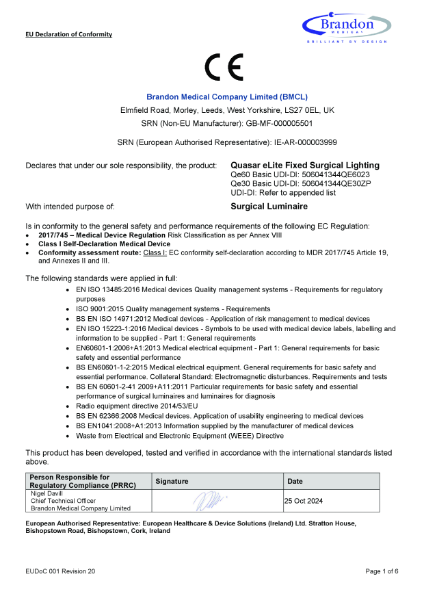

European Technical Approvals
Certificate type
IEC International Standards
Certificate type

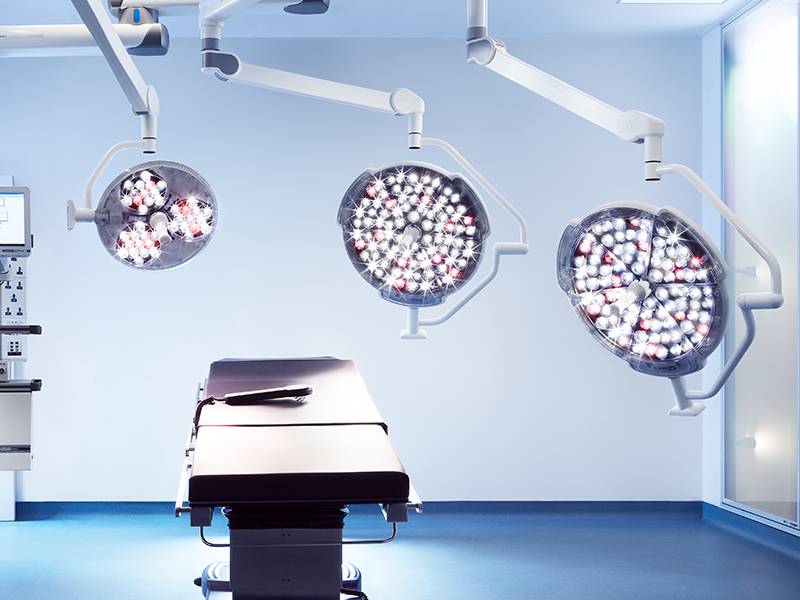

Quasar® eLite Qe60 with Qe60 and Qe30 satellites.
Application
Main Operating theatre light with two satellite lights.
Description
Quasar® eLite Qe60 with Qe60 and Qe30 satellites.
Features and benefits:
- Quasar® eLite is the only surgical light with near perfect colour rendition across the full visible spectrum.
- It features the highest R9 colour rendition of any product and ensures strong and vibrant visualisation of tissues.
- Designed to work with all UCV ceilings, with minimum air turbulence and thermal lift.
- The lights have been independently tested to DIN 1946 Part 4 (12-2008) and comfortably exceed the requirements.
Fat Beam Technology:
- High light intensity across the full illuminated area for uniform vision
- Large wound sites can be easily examined
- Beam size is adjustable to user preference
- 420 mm maximum beam diameter
General information
Color | White Guidance for specification option: RAL9010 / RAL9002. Grey |
Finish | Anti-microbial |
Material | Plastic |
Shape | Circle |
Length | 3950 mm |
Width | 810 mm |
Height | 1700 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/510 Luminaires |
Specification data - Self-ballasted LED lamps
Standards | To EN 60601-1 and EN 60601-2-41. |
Third-party certification | CE marked.Guidance for specification option: (93/42/EEC) including amendments 2007/47/EC. |
Cap type | LED Fixed. |
Wattage | 48 and 41 W.Guidance for specification option: Two 48 W one 41 W. |
Colour temperature | 3100–5000ºK.Guidance for specification option: Five steps. |
Colour rendering index (Ra) | >95. |
Rated life (minimum) | >60 000 hours. |
Initial lumens (minimum) | 160 000 lux. |
Rated lamp efficacy (minimum) | 260 lm/W. |
Dimmable | Yes. |
Product Reference | Quasar eLite - Qe606030 |
Energy | 3.31 mW/m² lux. Manufacturer guidanceRadiant energy. |
Beams | 0.6. Manufacturer guidanceBeam uniformity. |
Input voltage | 100–240 Vac. |
Power consumption | <48 VA; <41 VA. |
Dimensions | 2000 mm; 500 mm. Guidance for specification option: 2000 mm (Qe60); 2000 mm (Qe60); 1500 mm (Qe30). |
Frequency | 50/60 Hz. |
Mass | 107 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceVaries. |
Country of product manufacture | United Kingdom |
Material | Plastic |
Recyclability | Manufacturer guidanceRecyclable. Consult with manufacturer for details. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
Brandon Engineers' Update Newsletter
Hybrid Operating Theatres Brandon Turnkey Equipment Package
Quasar® eLite High Performance Surgical Lighting
Smart Operating Theatre Brandon Turnkey Equipment Package
Ultraclean Ventilation Operating Theatre Brandon Turnkey Equipment Package

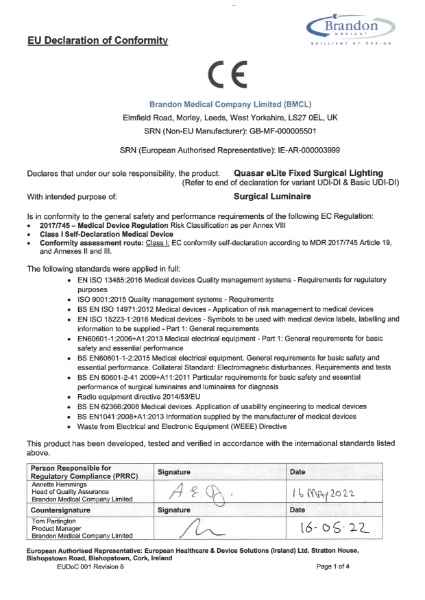

Declaration of Conformity EU MDR_Quasar Fixed Systems EUDoC001 Rev 8 (16 May 2022)
