HD-LED Minor Surgical Lighting.
Lighting suitable for surgical environments.
Astralite® HD-LED Minor Surgical Lighting.
Features and benefits:
Color | White |
Finish | Anti-microbial |
Material | Plastic |
Shape | Circle |
Length | 1800 mm |
Width | 335 mm |
Height | 1150 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/510 Luminaires |
Standards | To EN 60601-1 and EN 60601-2-41. |
Third-party certification | CE marked.Guidance for specification option: (93/42/EEC) including amendments 2007/47/EC. |
Cap type | LED Fixed. |
Wattage | <32 VA. |
Colour temperature | 3500–5000ºK.Guidance for specification option: Six steps. |
Colour rendering index (Ra) | >95. |
Rated life (minimum) | > 50 000 hours.Guidance for specification option: LED luminaires useful life. |
Initial lumens (minimum) | 100 000 lux. |
Rated lamp efficacy (minimum) | 260 lm/W. |
Dimmable | Yes. |
Product Reference | Astralite® eLite Ceiling |
Input voltage | 100–240 Vac. |
Power consumption | <32 VA. |
Dimensions | 250 mm. |
Frequency | 50/60 Hz. |
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceVaries. |
Country of product manufacture | United Kingdom |
Material | Plastic |
Recyclability | Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
Revit 2017 | 1 |
ISO 9001 Quality Management
BQAI ISO 9001-2015
QA Certificate
EN ISO 13485 2016 Certificate
IEC International Standards

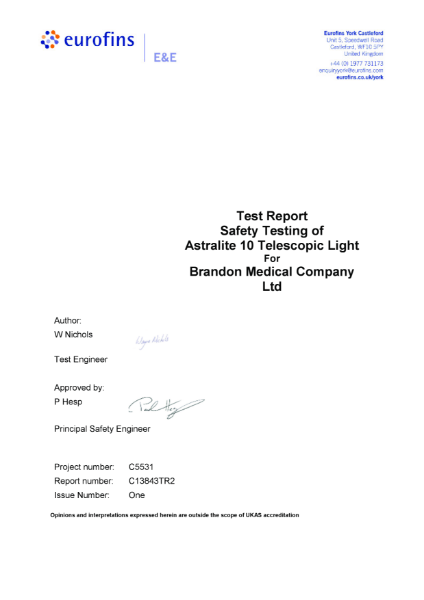

Test Report Safety Testing of Astralite 10 Telescopic Light
IEC International Standards
EN60601-2:2015

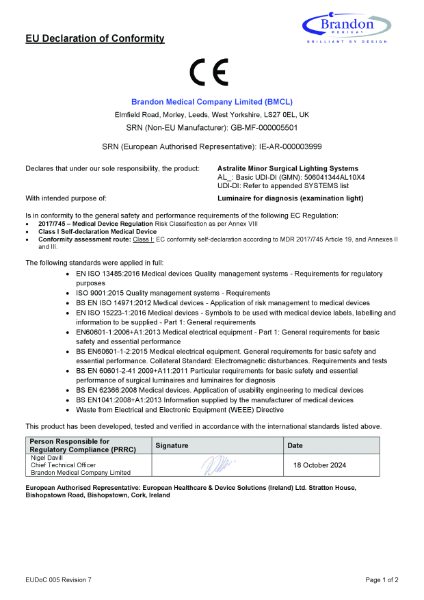

Certificate of Conformity

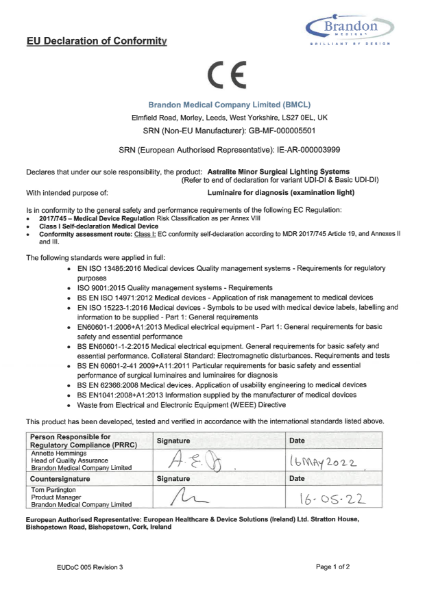

Declaration of Conformity EU MDR_Astralite EUDoC005 [Rev 7] 18 Oct 2024
QA Certificate
BS EN ISO 13485
