Coolview® Ceiling Mounted Examination Light
Verified by manufacturer 4 days ago
QA Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
IEC International Standards
Certificate type
European Technical Approvals
Certificate type
Coolview® Ceiling mounted examination light.
Application
Suitable for dermatology, ENT, Gynaecology and sensitive areas such as neonatal and ICU departments.
Description
Brandon Medical's Coolview CLED23 provides high intensity performance and colour corrected light reduces eye strain making the focus of the examination vivid and the tissues can be easily identified.
Features and benefits:
- 60 000 Lux @ 0.5 m.
- LED Life 30 000 Hours.
- Adjustable colour temperature.
- Available in mobile, desk, wall, rail and ceiling mounts.
- Unrestricted rotation.
- No infra-red radiation avoiding heat exposure.
- Environmentally friendly.
General information
Color | White |
Finish | Anti-microbial |
Material | Plastic |
Shape | Circle |
Length | 975 mm |
Width | 300 mm |
Height | 1000 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/510 Luminaires |
Specification data - Self-ballasted LED lamps
Standards | To EN 60601-1 and EN 60601-2-41. |
Third-party certification | CE marked. |
Cap type | LED Fixed. |
Wattage | 21 VA. |
Colour temperature | 3500–4500°K.Guidance for specification option: Two steps. |
Colour rendering index (Ra) | >95. |
Rated life (minimum) | 30 000 hours.Guidance for specification option: LED Luminaires useful life - L70 B50. |
Initial lumens (minimum) | 60 000 lux. |
Rated lamp efficacy (minimum) | 260 lm/W. |
Dimmable | Yes. |
Product Reference | Coolview® Ceiling mounted examination light |
Power consumption | 25 VA. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceVaries. |
Country of product manufacture | United Kingdom |
Material | Plastic |
Recyclability | Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
Brandon Engineers' Update Newsletter
Coolview brochure - Brandon Medical Examination Lights
Intensive Care Bedspace Brandon Turnkey Equipment Package

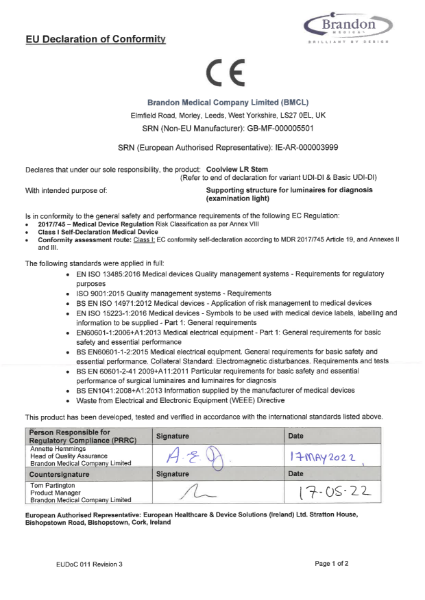

Declaration of Conformity_Coolview
