Verified by manufacturer 6 months ago
QZD.A1.BV.DVFW.20
WRAS
Certificate type
BEAB
Certificate type

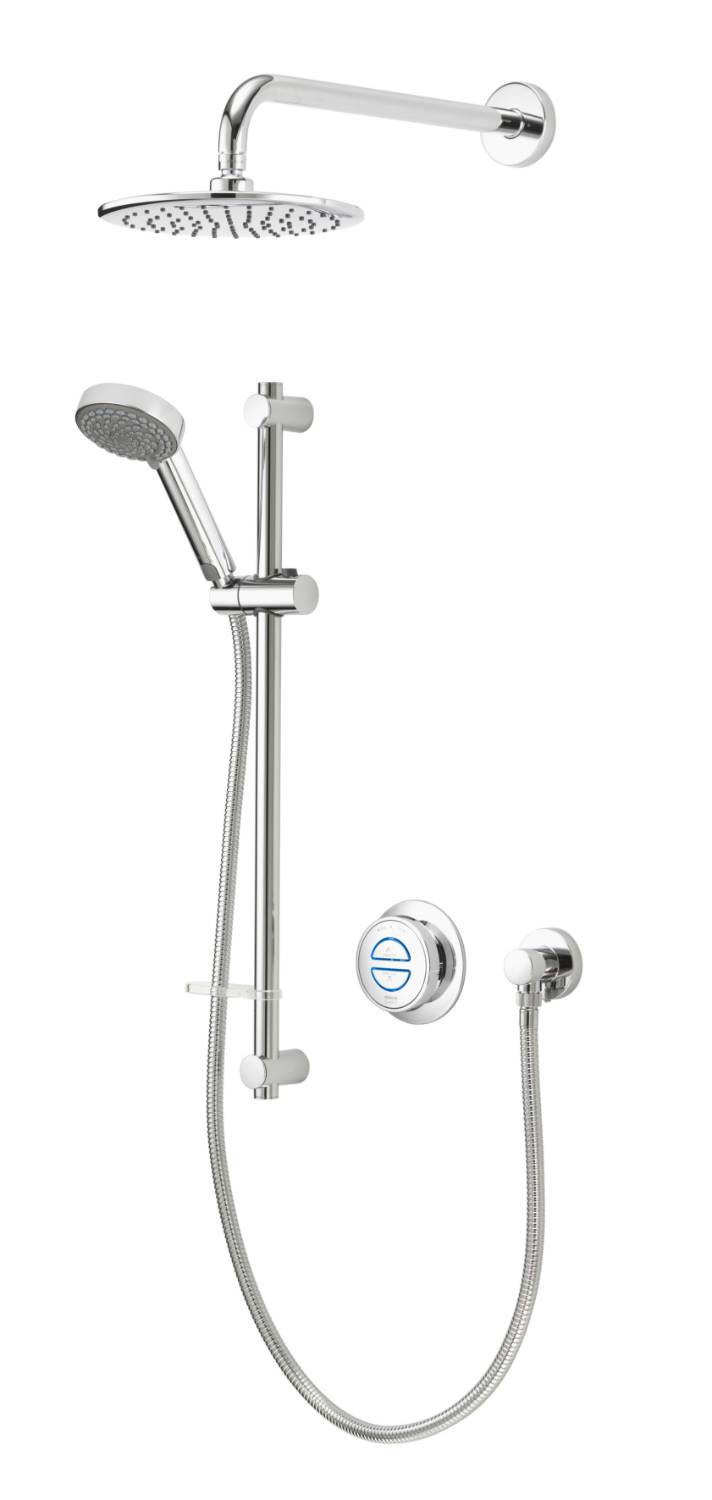

Built-in dual outlet smart shower with wall outlet for adjustable handset and wall fixed drencher head.
Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.
Fixed and adjustable showerheads. It must be sited no higher than the base level of the cold water cistern (for gravity systems).
Features and benefits:
Color | Silver |
Finish | Chrome |
Material | Metal Plastic |
Shape | Circle |
Length | 320 mm |
Height | 700 mm |
Warranty description | Five year Guidance for specification option: Shower unit. Two year Guidance for specification option: Shower head and kit. |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Approvals | CE marked and BEAB mark approved. |
Form | Dual outlet concealed controller. |
Materials | |
Body | Metal and plastic. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 10—16 L/min. |
Water supply temperature (maximum) | 65°C. |
Pressure | 1—7 bar. |
Shower head | 105 mm (adjustable) and 230 mm (fixed). |
Controller | 42 x 120 mm. |
InletConnectionSize | 15 mm push fit. |
OutletConnectionSize | 15 mm push fit. |
Centres | 48 mm. Manufacturer guidanceInlet valve centre. |
Position | Hot right, cold left. |
System | HP/Combi system. |
HoseLength | 1500 mm. |
Country of material origin | Malaysia Guidance for specification option: Also United Kingdom. |
Country of product manufacture | Malaysia Guidance for specification option: Also United Kingdom. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
