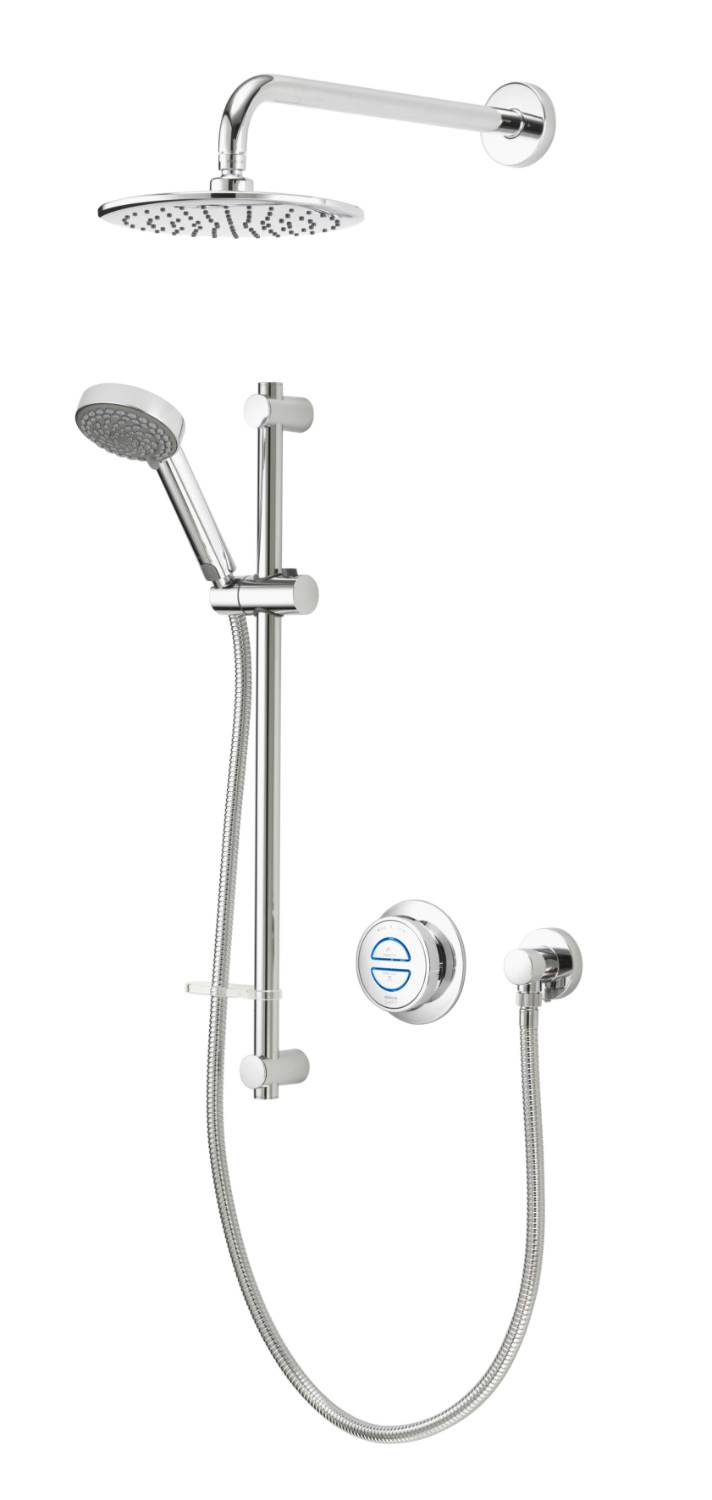

Quartz Classic Smart Divert Concealed Shower With Adjustable And Fixed Wall Heads

Verified by manufacturer 6 months ago

QZD.A2.BV.DVFW.20

Aqualisa Products Ltd Variant:
Third party certifications:
  • WRAS

    WRAS

    Certificate type

  • BEAB

    BEAB

    Certificate type

Built-in dual outlet smart shower with wall outlet for adjustable handset and wall fixed drencher head.

Jump to:
BOS
+44 (0)1959 560000 Website

Application

Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.

Description

Fixed and adjustable showerheads. It must be sited no higher than the base level of the cold water cistern (for gravity systems).


Features and benefits:

  • 105 mm adjustable showerhead diameter (230 mm fixed head).
  • One touch start/stop control.
  • App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
  • Aqualisa SmartValve™.
  • Adjustable up to maximum centres of 657 mm.
  • 105 mm, four spray patterns (adjustable head) including eco-spray option.
  • Digital diverter technology.
  • CE marked.
  • Five-year guarantee.
  • Thermostatically controlled showering with push button one start control.
  • LED display to let you know your chosen temperature has been reached.
  • Wifi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
  • Mutliple showers can be controlled from 1 app.
  • 105 mm Harmony handset with 4 spray patterns including eco spray and 230 mm round drencher.
  • Shower head’s eco-setting can produce water savings of up to 25% without compromising your showering experience
  • Compatible with wired remote control.
  • Optional eco mode on the Smart valve which can be selected for water saving up to 33%.

General information

Color

Silver

Finish

Chrome

Material

Metal

Plastic

Shape

Circle

Length

320 mm

Height

700 mm

Warranty description

Five year

Guidance for specification option:

Shower unit.

Two year

Guidance for specification option:

Shower head and kit.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Smart Digital Showers

Specification data - Shower fittings package

Approvals

CE marked and BEAB mark approved.

Form

Dual outlet concealed controller.

Materials

-

Body

Metal and plastic.

Finish and colour

Chrome plated.

Flow rate (maximum)

10—16 L/min.

Water supply temperature (maximum)

65°C.

Pressure

1—7 bar.

Shower head

105 mm (adjustable) and 230 mm (fixed).

Controller

42 x 120 mm.

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

Centres

48 mm.

Manufacturer guidance

Inlet valve centre.

Position

Hot right, cold left.

System

Gravity pumped system.

HoseLength

1500 mm.

Sustainability data

Country of material origin

Malaysia

Guidance for specification option:

Also United Kingdom.

Country of product manufacture

Malaysia

Guidance for specification option:

Also United Kingdom.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

WRAS

WRAS

WRAS Approval Certificate 2203037 - 704415 Smart Valve

WRAS

WRAS

Aqualisa Smart Valve_Approved Aqualisa_Certificate_2209016

BEAB

BEAB

E1197 Issue 11 QZD.A1.BV.20, QZD.A1.EV.20

BEAB

BEAB

20979 Issue 5 QZD.A1.BV.DVFC.20 QZD.A1.BV.DVFW.20QZD.A1.BV.DVBTX.20QZD.A1.EV.DVFC.20

BEAB

BEAB

E11500 Issue 12 QZD.A2.BR.20, QZD.A2.BV.20
