Pyrobel T Vision Line
Verified by manufacturer 6 months ago
Pyrobel-T EI30-22 VL
Pyrobel-T EI30-22 VL

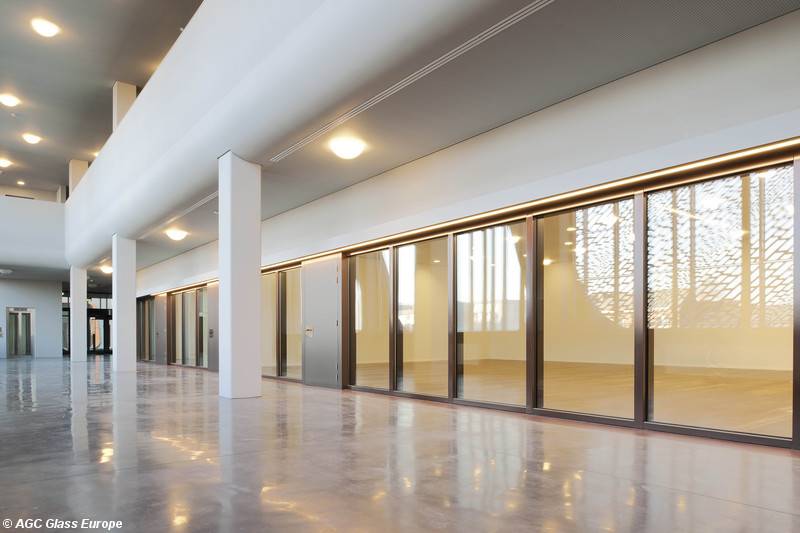

Butt-jointed system using multiple panes of Pyrobel T clear laminated fire-resistant safety glass.
Application
Suitable for internal butt-joined glazed partitions.
Suitable for applications with in service temperatures between -10°C and +50°C.
Description
Butt-jointed system using multiple panes of Pyrobel T clear laminated fire-resistant safety glass.
Features and benefits:
- Clear, laminated fire-resistant safety glass classified to EN 13501-2 and BS 476:22.
- Suitable for applications including glazing for partitions and doors.
- Available in extra-large sizes (up to 4500 mm high).
- Suitable for butt-jointed glazed partitions without mullions.
- Certified as 1B1 in accordance with EN 12600 classifying impact resistance and mode of breakage.
- Can be produced in resistance classes: EI30 or EI60.
Please note, fire-resistant glazing must always be installed in a framing system where there is independent certification for the glazing and its intended framing system. Please consult manufacturer for technical support.
General information
Color | Clear |
Material | Glass |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/33 Proprietary windows L10/20 Steel windows L10/15 Wood windows L10/10 Wood windows L10/400 Composite windows L10/390 Proprietary windows L10/330 Aluminium windows L10/310 Steel windows L10/210 Wood windows |
Specification data - Laminated glass sheets
General requirements | Glass generally. |
Third-party certification | Certifire CF 5746. |
Laminate glass type | Fire and safety. |
Thickness | 22.0 mm. |
Outer leaf | Manufacturer's standard. |
Inner leaf | Manufacturer's standard. |
Interlayer to glass leaves | Manufacturer's standard. |
Body colour | Clear.Extra clear (Clearvision). |
Pattern | Transparent. |
Performance requirements | |
Fire resistance | |
Integrity | To BS EN 13501-2, E 30 minutes. |
Insulation | To BS EN 13501-2, EI 30 minutes. |
Light | Transmission: 87%; Reflection: 9%. |
Sound attenuation | To EN 12758 Rw (C; Ctr): 39 (-1; -3) dB.Guidance for specification option: EN 12758. |
Impact resistance | To BS EN 12600, 1B1.Guidance for specification option: EN 12600. |
Overall size | Guidance for specification option: Insert requirements. Width (per pane): 200–2000 mm. Height (per pane): 350–4500 mm. |
Thermal conductivity | To EN 673, 5.2 W/m²K. |
Grades | Internal. |
Average panel weight | 49 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe Manufacturer guidanceMaterials originate from around Europe. |
Country of product manufacture | Europe |
Recyclability | 100% |
Literature
Pyrobel Fire-Resistant Glass by AGC

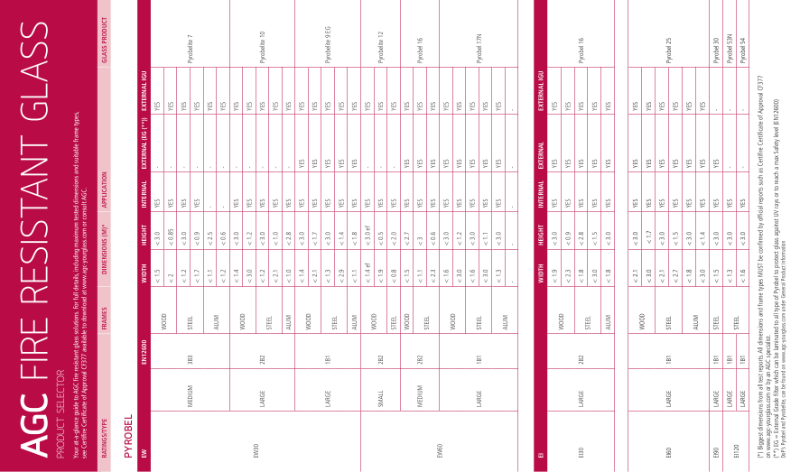

AGC Pyrobel Fire-Resistant Glass Product Selector
