Profiles Kids Cubicle
Verified by manufacturer 5 months ago
HPL
HPL
Versatile school washroom cubicle, flexible enough to suit all ages.
Application
Suitable for all ages.
- MFC suitable for light to medium use in dry areas.
- HPL suitable for medium to heavy use in dry areas.
- SGL suitable for heavy usage, where strength and durability is required, specifically in wet areas.
Description
Versatile washroom cubicles, flexible enough to suit all ages. For younger children, Profiles Kids™ can be specified with shaped doors, allowing easy access and supervision. For primary and secondary schools, colleges, universities and staff areas, the standard height Profiles™ cubicle is a suitable option.
Features and benefits:
- Flexible system that can be adapted for use as a toilet, changing or shower cubicle.

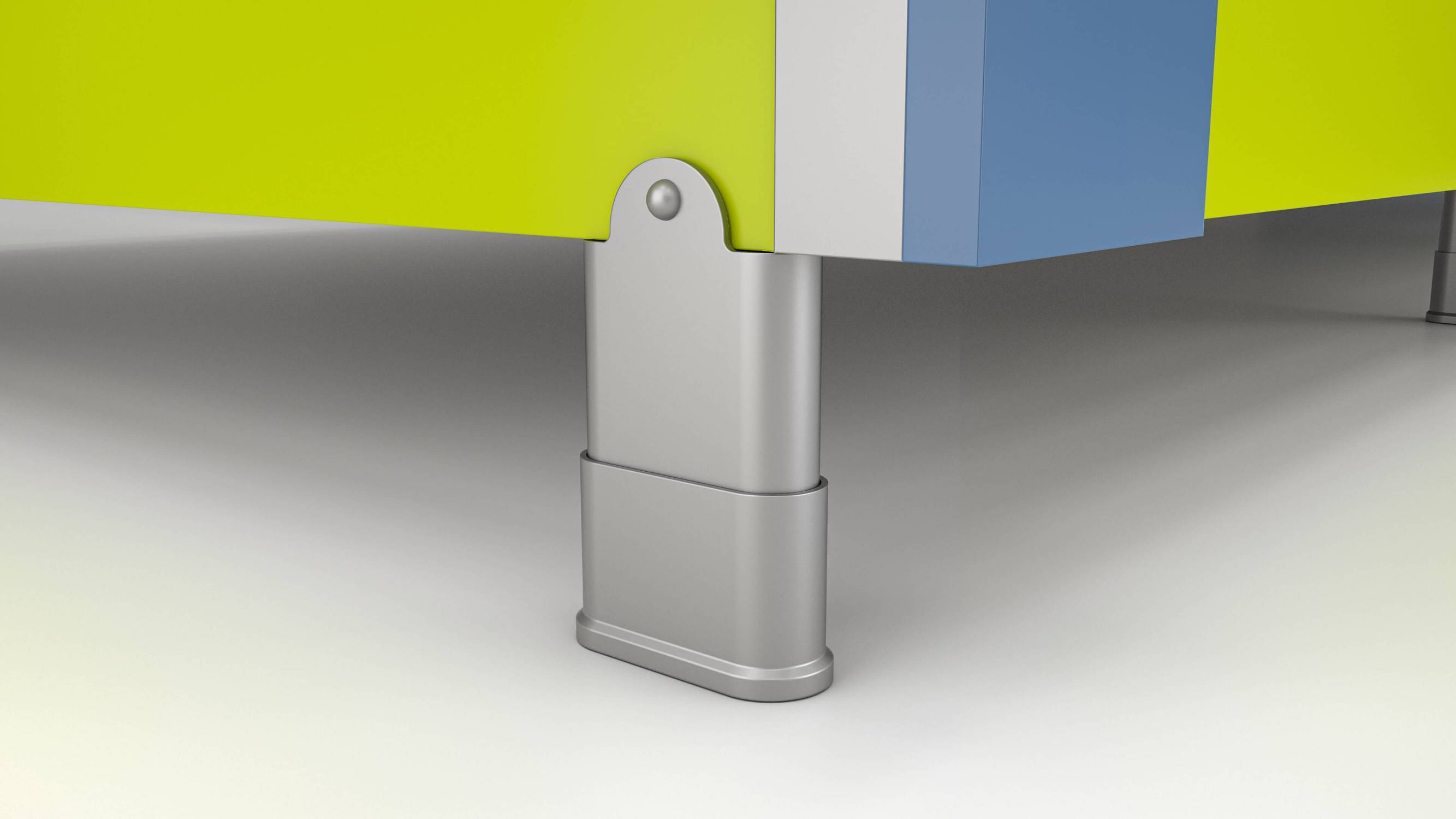

- Features sturdy aluminium feet and a through-fixed headrail for strength.
- All hinges anti-finger trap as standard.
- Cubicle hardware satin anodized aluminium with light grey ABS lock.
- Various options available for door and partition heights.
- Department for Education compliant.
Components:
- HPL: High pressure laminate panels, supplied with square edge and 1.0mm matching PVC lipping.
- MFC: Melamine faced chipboard panels, supplied with square edge and 1.0mm matching PVC lipping.
- SGL: Solid grade laminate panels, supplied with polished black radiused edges.
- Frame comprising: Headrail, pilaster, legs, hinges and channel.
General information
Color | Other Guidance for specification option: Panels: 34 laminate colour options; select from manufacturer literature. |
Finish | Smooth Laminated Satin Anodized |
Material | Laminate Aluminium Chipboard |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 1100 mm Guidance for specification option: to lowest point on door and partition scallop (including 100mm floor clearance) 1300 mm Guidance for specification option: to lowest point on door and partition scallop (including 100mm floor clearance) 1500 mm Guidance for specification option: to lowest point on door and partition scallop (including 100mm floor clearance) 2100 mm Guidance for specification option: with straight edged door and partition |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Specification data - Panel cubicle systems
Panels | HPL. |
Panel supports | Aluminium frame, satin anodized. |
Doors | HPL. |
Hardware | Pilaster, hinges (anti-finger trap) and light grey ABS lock. |
Partition height | 1100 mm. Guidance for specification option: To the lowest point of scallop. 1300 mm. Guidance for specification option: To the lowest point of scallop. 1500 mm. Guidance for specification option: To the lowest point of scallop. 1950 mm. Guidance for specification option: To the lowest point of scallop. 2100 mm. Guidance for specification option: Straight edge. |
Height | 1100 mm. 1300 mm. 1500 mm. Manufacturer guidanceDoor height: to lowest point on door scallop including door clearance. |
Clearance height | 100 mm. Guidance for specification option: Floor. Manufacturer guidanceDoor. |
Colours: | Manufacturer guidancePanels: 34 laminate colour options, select from manufacturer literature. |
