Pro Clima Solitex Plus & Pro Clima Solitex Plus Connect - Reinforced monolithic breather membrane

Name: Pro Clima Solitex Plus & Pro Clima Solitex Plus Connect - Reinforced monolithic breather membrane
Brand: Pro Clima
SKU: b5U126xcF57f6hy5TUaS5y

Verified by manufacturer 14 days ago

Pro Clima Solitex Plus

Pro Clima

Third party certifications:

BBA Agrément Certificate
Certificate type
NSAI Agrément Certificate
Certificate type

Robust windtight and vapour permeable (diffusion open) underlay for sealing of exterior roofs and walls or suspended floors

Jump to:

+44 (0)1228 711511 Website

Application

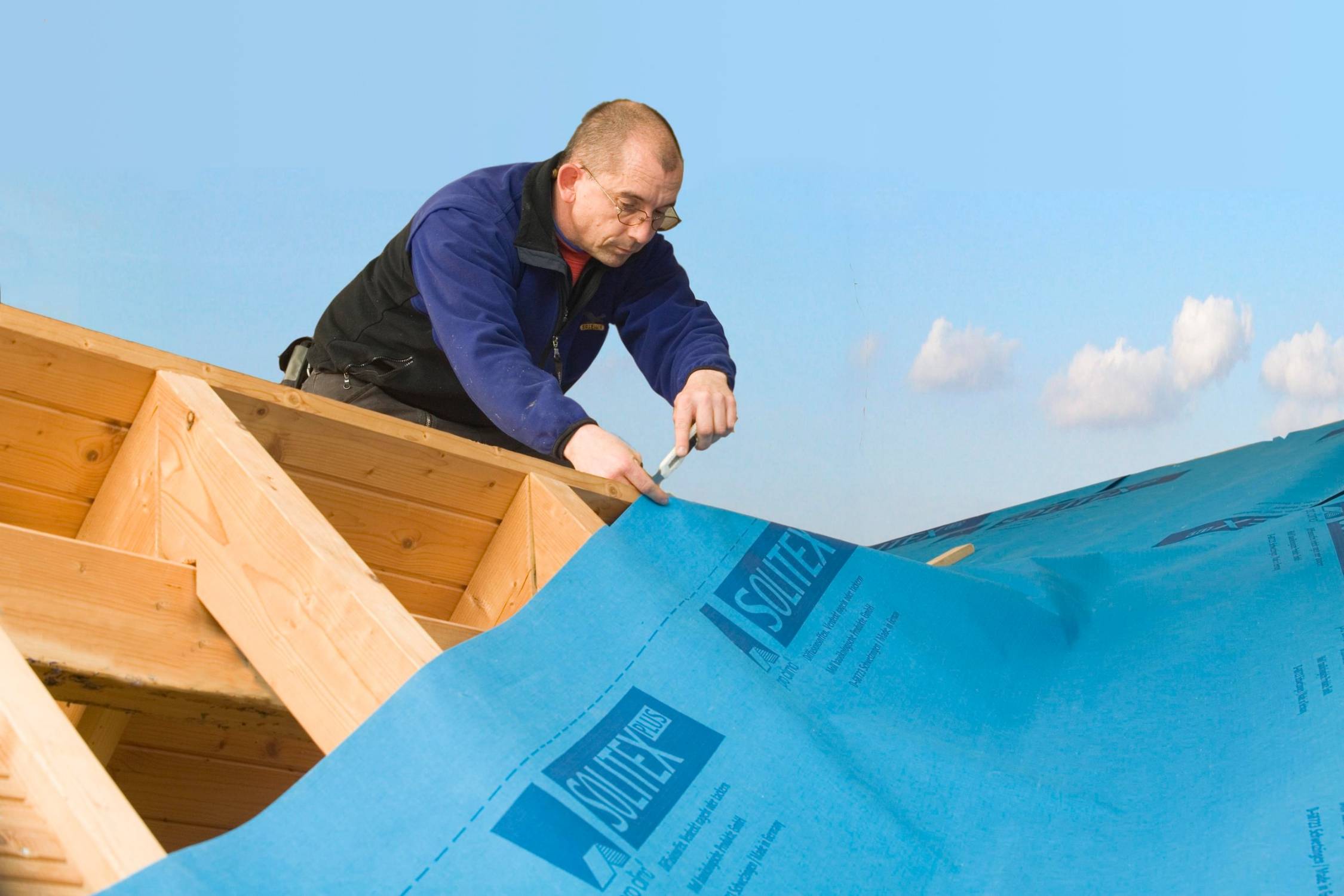

Solitex Plus is an external fully windtight breathable membrane for use as a roofing underlay on pitched roofs (over 15° of pitch) and as a breather membrane on the outside of timber frame walls. The membrane can also be used to windproof the underside of an insulated suspended timber floor.

Suitable for:

Pitched roofs.
Protecting sarking boards.
Warm, cold or hybrid roofs.
As a wall lining breathable membrane.
Suspended timber floors.
Use in conjunction with all insulation types.
The outside of Blown-in insulation.

Description

Pro Clima Solitex Plus: Reinforced sarking and roof lining membrane.

Pro Clima Solitex Plus Connect: Reinforced sarking and roof lining membrane with self-adhesive sections.

Features and benefits:

BBA (07/4432) and NSAI (02/0138) certified.
Type LR Underlay to BS 5250.
Complies fully with BS 5534:2014 for UK Wind Zones 1–5.
Monolithic windtight breathable membrane.
High UV stability up to three months exposure.
Extremely high nail tear resistance due to its reinforcement and also ideal for using in conjunction with blown-in insulation.
High degree of protection for building structures during the construction phase, suitable as a temporary covering.
Quick and reliable adhesion as a result of integrated connect self-adhesive sections along the length of the membrane (Pro Clima Solitex Plus Connect only)
Extreme water-tightness (>2500 mm W1) making it suitable for all UK and Irish exposure zones.
Water tightness is unaffected by wood preservatives, resins and oils in the timber. No water seepage or leaching.
Windtight: prevents the insulation below from wind-washing/thermal bypass.

General information

Color	Blue
Finish	Anti-slip
Material	Polypropylene Manufacturer guidance Polypropylene Microfibre
Shape	Rectangle
Length	50000 mm 15000 mm
Width	1500 mm
Height	0.55 mm Guidance for specification option: Thickness.
Warranty description	Ten year

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	P10/310 Air and vapour control layer P10/60 Air and vapour control layer

Specification data - Plastics sheets

Material	Protective and covering fleece polypropylene microfibre. Membrane monolithic TEEE. Reinforcement polypropylene non-woven fabric.
Purpose	Reinforced sarking and roof lining membrane.
Standard	To BS EN 13859-1.
Third-party certification	British Board of Agrément (BBA) certificate.
Performance characteristics	-
Tensile strength (minimum)	To BS EN 13859-1, 495 N/5 cm / 350 N/5 cm (MD/CD).
Tear resistance	To BS EN 13859-1, 300 N/ 270 N (MD/CD).
Elongation to break	To BS EN 13859-1, 15 ±5% (MD/CD).
Water vapour resistance (minimum)	0.20 MN·s/g (+/- 0.05).
Fire performance	To BS EN 13501-1, Class E.
UV stabilization	3 months. Guidance for specification option: Before tiling over.
Form	Non-woven.
Physical properties	-
Colour	Light blue.
Weight (minimum)	170 g/m².
Dimensions	-
Thickness (minimum)	0.55 mm.
Width (minimum)	1.5 m.
Roll length (minimum)	50 m.
