Pro Clima DA - Airtightness And Vapour Control Membrane
Verified by manufacturer 6 months ago
Vapour check membrane for above-rafter insulation and also for suspended timber floors.
Application
For use as a water-tight vapour check and airtightness membrane on sarking boards under insulation above the rafters. Suitable for all externally diffusion-permeable roof structures.
Can be used as an airtight vapour control layer on top of suspended timber floor joists.
Description
Vapour check membrane for above-rafter insulation.
Features and benefits:
- Protects the structure against the elements during the construction phase.
- Water-resistant and waterproof, can be walked on.
- Can be exposed to the elements for up to 3 months during the construction phase.
- Acts as a vapour retarder and air-proofing layer simultaneously.
- Excellent values in the hazardous substance test, has been tested according to the ISO 16000 evaluation scheme.
- CE marked and A+ indoor air quality.
General information
Color | Green |
Material | Polypropylene |
Shape | Rectangle |
Length | 50000 mm |
Width | 1500 mm 3000 mm |
Height | 0.45 mm Guidance for specification option: Thickness. |
Warranty description | Ten year |
Uniclass | |
CAWS | P10/310 Air and vapour control layer P10/60 Air and vapour control layer |
Specification data - Plastics sheets
Material | Polypropylene. |
Purpose | Airtightness and vapour control. |
Third-party certification | CE marked to BS EN 13984. |
Performance characteristics | |
Tensile strength (minimum) | To BS EN 12311-2:MD/CD 230 N/5 cm / 200 N/5 cm. |
Tear resistance | To BS EN 12310-1: MD/CD 120 N / 115 N. |
Elongation to break | To BS EN 12311-2, 90%. |
Water vapour resistance (minimum) | To BS EN 1931, 5000 µ. |
Fire performance | To BS EN 13501-1, Class E. |
UV stabilization | To BS EN 13859-2, 2160 hours. |
Environmental performance requirements | |
Volatile organic compounds (VOC) emissions level (maximum) | Tested in accordance with ISO 16000: A+ rated under the French indoor air quality/VOC system. Complies with the Californian Department for Public Health (CDPH) maximum VOC threshold limits listed in table 4.1 method 1.1. |
Physical properties | |
Colour | Green. |
Weight (minimum) | 130 g/m². |
Dimensions | |
Thickness (minimum) | 0.45 mm. |
Width (minimum) | 1.5 m.3 m. |
Roll length (minimum) | 50 m. |
Watertightness | Water tightness to liquid water (BS EN 1928): W1. |
Thermal Conductivity: | 2.3 W/(m·K). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Literature

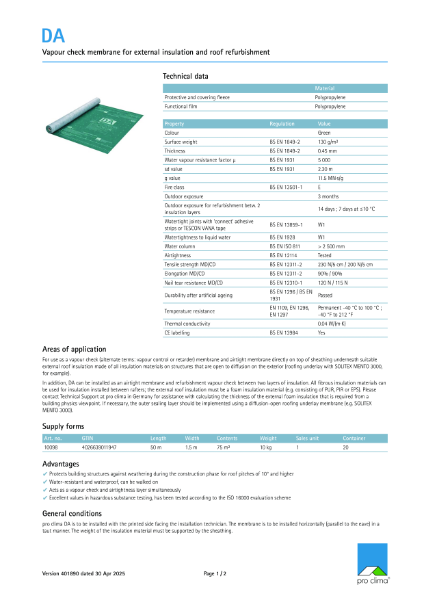

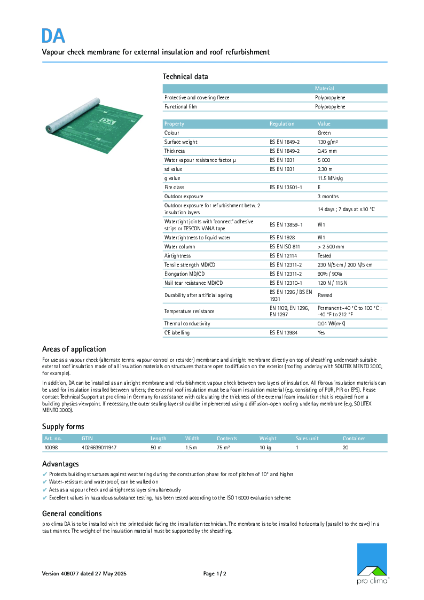

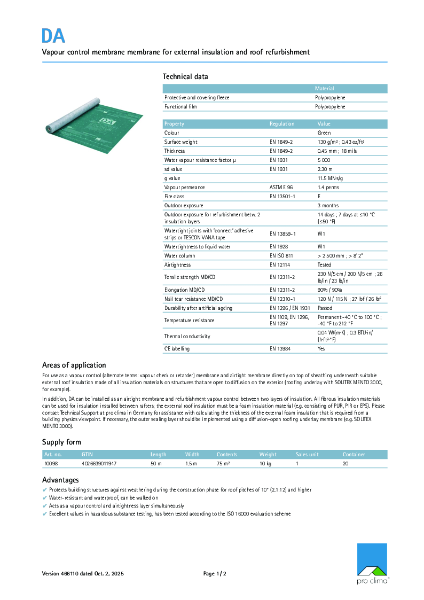

Pro Clima DA Technical Datasheet
