Pro Clima Dasatop - Refurbishment Vapour Check
Verified by manufacturer 21 days ago
Refurbishment vapour check for sub-and-top installation from the outside.
Application
Suitable as a sub-and-top vapour check and airtight membrane for all structures with permeable underlay and sarking membranes (e.g. pro clima SOLITEX) in accordance with DIN 4108-3. Also suitable in combination with wood-fibre underlay panels and MDF panels, and with fleece-laminated foam insulation materials (PUR, PIR, EPS etc.) with a thickness of 50 mm (2") and greater.
Description
Refurbishment vapour check for sub-and-top installation from the outside.
Features and benefits:
- Best possible reliability thanks to sub-and-top installation.
- Protects building components: humidity-variable s value allows for installation in spaces between rafters and across rafters.
- Time-saving installation: no adhesion to rafters required.
- No insulation cover necessary.
- Easy to work with: particularly robust thanks to fleece reinforcement.
- Excellent values in hazardous substance testing, has been tested according to the ISO 16000 evaluation scheme.
- UKCA and CE marked.
- A+ indoor air quality.
General information
Color | Green |
Material | Polypropylene |
Shape | Rectangle |
Length | 50000 mm |
Width | 1500 mm 3000 mm |
Height | 0.25 mm Guidance for specification option: Thickness. |
Warranty description | Ten year |
Uniclass | |
CAWS | P10/310 Air and vapour control layer P10/60 Air and vapour control layer |
Specification data - Plastics sheets
Material | Polypropylene. |
Purpose | Vapour check. |
Third-party certification | CE marked to EN 13984. |
Performance characteristics | |
Tensile strength (minimum) | To BS EN 12311-2: MD/CD 195 N/5 cm / 105 N/5 cm. |
Tear resistance | To BS EN 12310-1: MD/CD 120 N / 105 N. |
Elongation to break | To BS EN 12311-2: 90%. |
Water vapour resistance (minimum) | To BS EN 1931 6 400 µ. |
Fire performance | To BS EN 13501-1: Class E. |
Physical properties | |
Colour | Green. |
Weight (minimum) | 90 g/m². |
Dimensions | |
Thickness (minimum) | 0.25 mm. |
Width (minimum) | 1.5 m.3 m. |
Roll length (minimum) | 50 m. |
Watertightness | Water tightness to liquid water (BS EN 1928): W1. |
Thermal Conductivity: | 0.04 W/(m·K). |
Literature

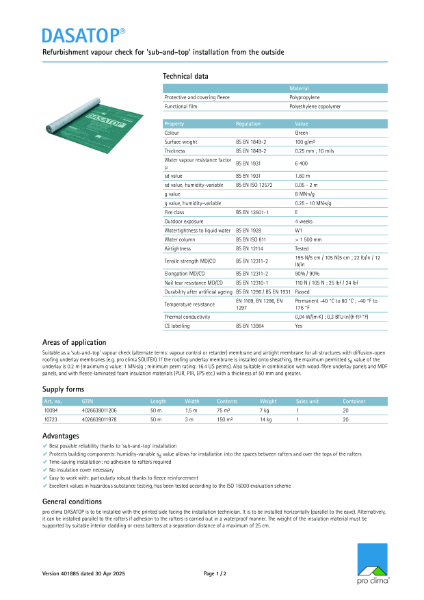

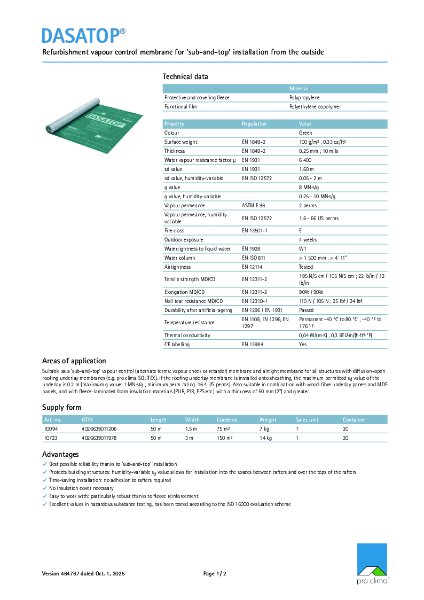

Pro Clima Dasatop Technical Datasheet
Pro Clima Product Guide EBS Leaflet
Dasatop Material Safety Datasheet
Dasatop Declaration of Performance (DOP)
Dasatop Installation Guide
