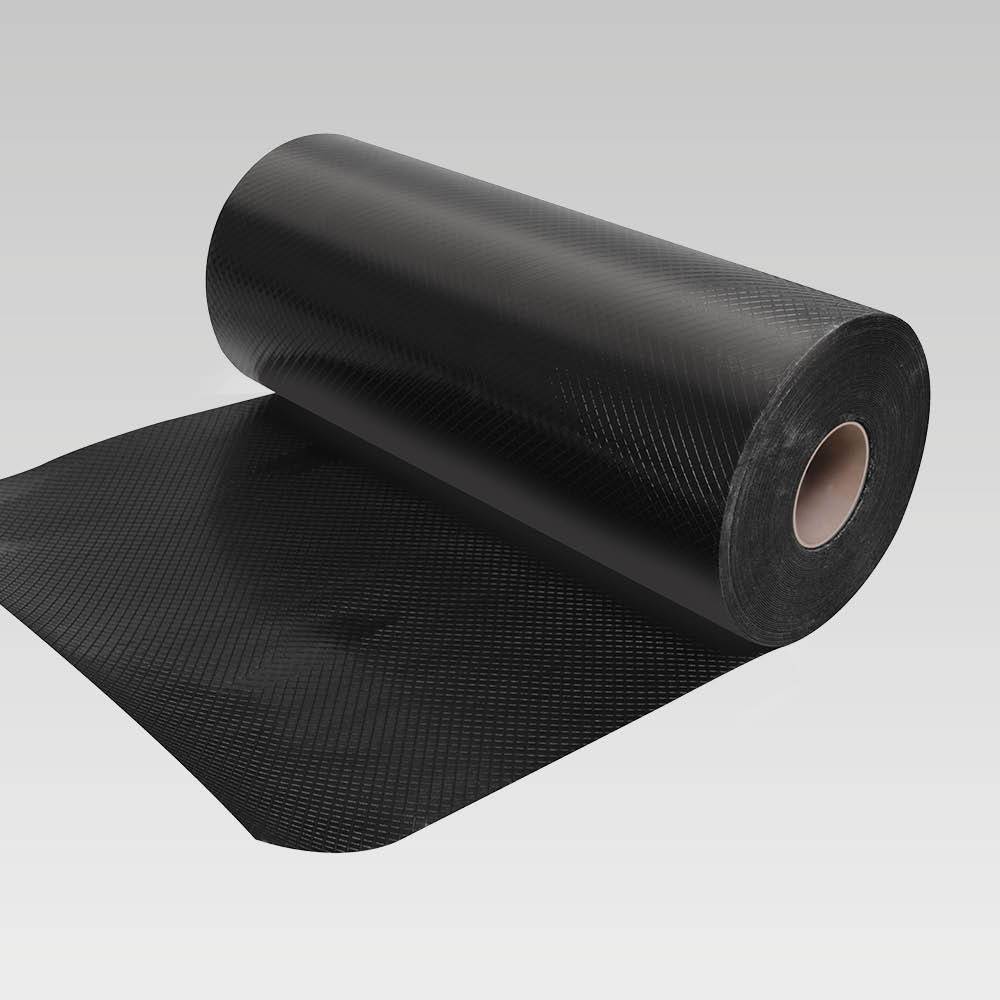

Premcrete Hydroprufe DPC-GR - Co-Polymer Damp-proof Course
Verified by manufacturer 3 days ago
A gas resistant, co-polymer damp-proof course.
Application
Suitable for installation into masonry to form a damp-proof course or cavity tray.
Description
HYDROPRUFE DPC-GR is a fourteen-layer co-polymer thermoplastic membrane designed to provide an effective barrier against rising damp, moisture, and ground gases, including methane, radon, carbon dioxide, hydrocarbons, and VOCs. Manufactured using co-extrusion technology incorporating dual layers of ethylene vinyl alcohol (EVOH), it ensures gas resistance and durability. Fully compliant with EN 14909:2012 and BS 8485:2015 + A1:2019 (Table 7).
HYDROPRUFE DPC-GR exhibits excellent tear resistance and provides a flexible yet robust barrier for use in conjunction with other PREMCRETE waterproof and gasproof membrane systems.
Features and benefits:
- Pitch-free.
- Excellent resistance to radon and carbon dioxide gas.
- Excellent performance in high load situations.
- System components for all applications, including standard and bespoke pre-formed pieces.
- CE Mark to EN 14909:2012 type A.
General information
Color | Grey |
Material | Thermoplastic elastomer (TPE) |
Length | 20000 mm |
Width | 300 mm 1200 mm |
Height | 0.5 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | F30/330 Damp-proof courses F30/48 Damp-proof courses |
Specification data - Plastics sheets
Classification data | |
Product reference | Premcrete Hydroprufe DPC-GR. |
Material | Copolymer thermoplastic. |
Purpose | Damp proof course (DPC). |
Standard | To EN 14909 and BS 8485. |
Performance characteristics | |
Tensile strength (minimum) | To ASTM D638-03, 20.9 N/mm² (MD). |
Tear resistance | To DIN EN 12310-1, 428/ 404 N (MD/CMD). |
Elongation to break | To ASTM D882-02, 739/ 1078% (MD/CMD). |
Resistant to underground gases | Methan, radon and carbon dioxide. |
Fire performance | To EN 13501-1, Class E. |
Form | Co-polymer thermoplastic membrane. |
Physical properties | |
Colour | Grey. |
Weight (minimum) | 483 g/m². |
Dimensions | |
Thickness (minimum) | 0.5 mm. |
Width (minimum) | Manufacturer guidanceHYDROPRUFE DPC-GR is available in the following widths: 300–1200 mm. Consult manufacturer and insert requirements. |
Roll length (minimum) | 20 m. |
Sustainability data
Material | Thermoplastic elastomer (TPE) |
Literature

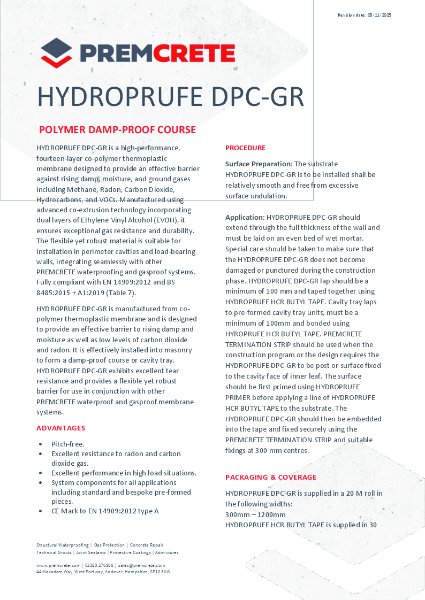

Hydroprufe DPC-GR Technical Datasheet
