POLYSoundBlok Recycled Polymer Acoustic Barrier - Absorptive Noise Barrier System

Verified by manufacturer 2 months ago

Gramm Barrier Systems Ltd

Absorptive noise barrier systems manufactured from high strength recycled polymers. Rapid installation, lower carbon and 40 year design life.

Jump to:
+44 (0)1323 872243 Website

Application

  • High performing Absorptive noise barrier, suited to infrastructure - road, rail and industrial projects, residential; housing.

Description

Absorptive noise barrier systems manufactured from high strength reinforced polymers. Gramm Barriers supply and install their POLYSoundBlok® Absorptive noise barrier system extensively throughout Europe and the UK.


Features and benefits:

  • High-density composite surfaces in conjunction with recycled PET (made from recycled bottles) absorptive infill panels ensure consistent high acoustic performance throughout the length of the barrier.
  • All designs are certified to the very latest European standards EN 14388.
  • Fully complies with LD 119; CE marked for road traffic noise for use on National Highways.
  • The strong maintenance-free structure of the product makes it suitable for road, rail and industrial projects.
  • Consists of highly durable rigid panels which, are rot-proof and resistant to aggressive environments and compounds such as salt spray and oils all without the need for additional surface treatments throughout their operational life.
  • Lower Whole Life Carbon due to rapid installation and wider bays (less posts and concrete).
  • Constructed off site under strict quality controls providing the highest level of construction which conforms to all the latest standards required for all sectors.
  • 40 design life.

General information

Color

Brown

Green

Grey

Beige

Yellow

Finish

Woodgrain

Coated

Material

Composite

Mineral

Polymer

Steel

Shape

Square

Rectangle

Length

3000 mm

4250 mm

Width

160 mm

Height

2000 mm

2500 mm

3000 mm

3500 mm

4000 mm

Show more

Warranty description

-

Manufacturer guidance

40-year design life.

Uniclass

Ss_25_14_61_62 Post and panel fencing systemsPrimary
Pr_25_71_50_21 Composite fence panels

CAWS

Q40/430 Proprietary fencing

Q40/170 Acoustic fencing

Q40/30 Proprietary fencing

Product range

Acoustic Barriers

Specification data - Post and panel fencing systems

System performance

Guidance for specification option:

Insert requirements and cross-reference to related clause(s) e.g. Performance of acoustic fencing, or omit.

Posts

Galvanized steel posts.

Guidance for specification option:

Consult manufacturer for full details.

Polyester powder-coated (PPC) steel posts.

Guidance for specification option:

Insert colour requirements, any RAL.

Manufacturer guidance

Design life: 60+ years.

Post foundations

Concrete foundations.

Continuous concrete pad and strip foundation systems.

Individual concrete pads.

Manufacturer guidance

Consult manufacturer for recommended fixing methods and insert requirements under Fixings below.

Rails

Not applicable.

Base boards

Not applicable.

Panels

POLYSoundBlok® panels, brown.

POLYSoundBlok® panels, green.

POLYSoundBlok® panels, grey.

POLYSoundBlok® panels, black.

Manufacturer guidance

Core: Upcycled PVC (3.3 mm).

Design life: 40+ years.

Fence topping

Manufacturer's standard.

Site applied finishes

Not applicable.

System accessories

Guidance for specification option:

Consult manufacturer for options e.g. matching doors and insert requirements, or omit.

Samples required

Product samples

Prototypes

Panel size

Guidance for specification option:

Insert requirements or e.g. drawing reference/ schedule:

  • Width (bay size): 1.0–4.25 m.
  • Height: 0.415–10 m.


Bespoke heights available on request.

Fixings

Guidance for specification option:

Consult manufacturer for options based on post foundations and insert requirements.

Technical characteristics, other

Barrier rating: A5, B3.
Absorption: 16 DLa.
Reflection: 28 DLr.

Panel weight

23 kg/m².

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

16.4 kg CO₂ eq/m²

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

73 %

Literature

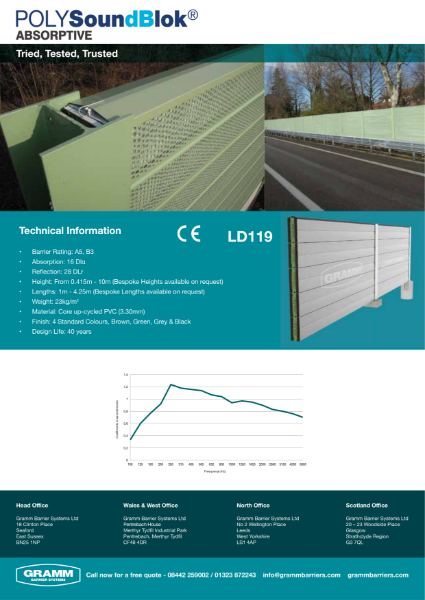

POLYSoundBlok Recycled Polymer Noise Barrier

POLYSoundBlok Recycled Polymer Noise Barrier

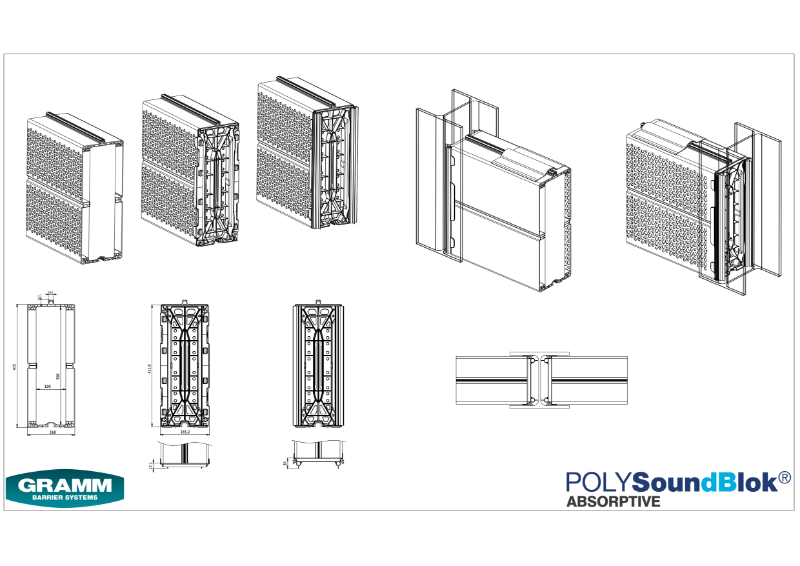

POLYSoundBlok Panel Dimensions

POLYSoundBlok Panel Dimensions

POLYSoundBlok Colour Chart

POLYSoundBlok Colour Chart

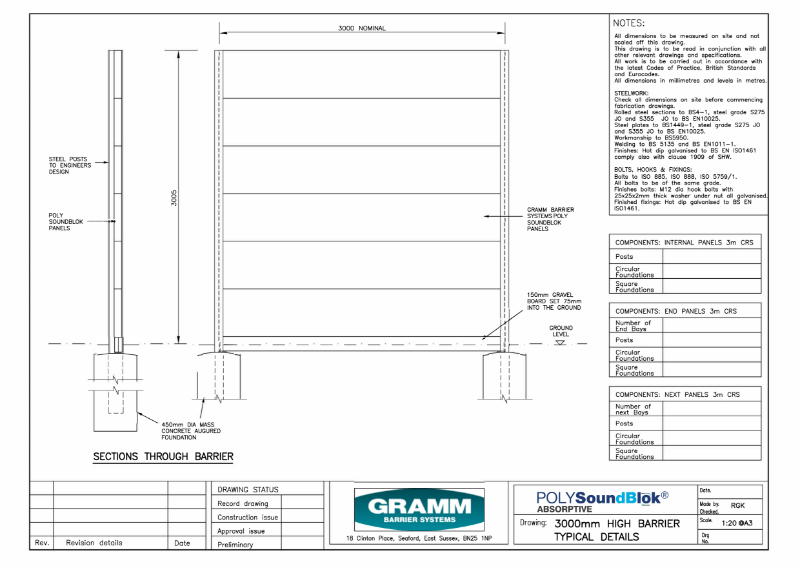

POLYSoundBlok Detailed Drawing Panel & Post

POLYSoundBlok Detailed Drawing Panel & Post

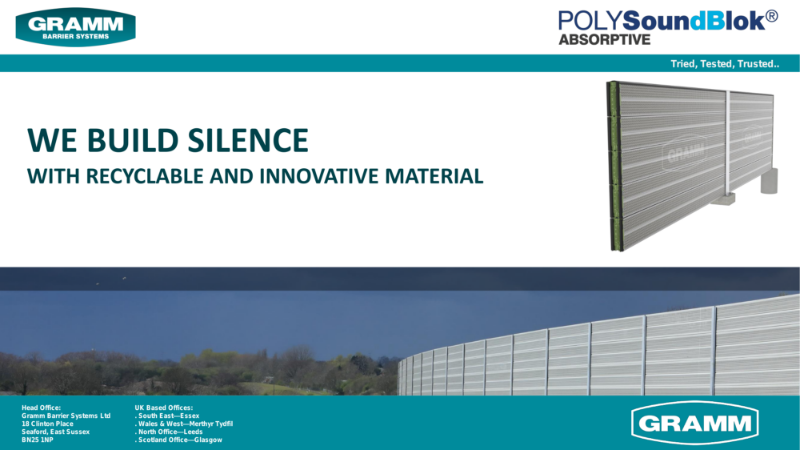

POLYSoundBlok Recycled Materials

POLYSoundBlok Recycled Materials
