CONCRETESoundBlok Concrete Noise Barrier - Concrete Noise Barrier System
Verified by manufacturer 4 months ago
Noise barriers made of a proprietary material consisting of organic softwood shavings processed to an acoustically engineered size and bonded together under pressure with low carbon cement.
Application
Absorptive/ reflective noise barrier, well suited for areas requiring a barrier with long life and high performing acoustics.
Applications: Road; rail; airport; commercial; industrial; utilities; ports; defence; residential; housing.
Description
Noise barriers made of a proprietary material consisting of organic softwood shavings processed to an acoustically engineered size and bonded together under pressure with low carbon cement.
Features and benefits:

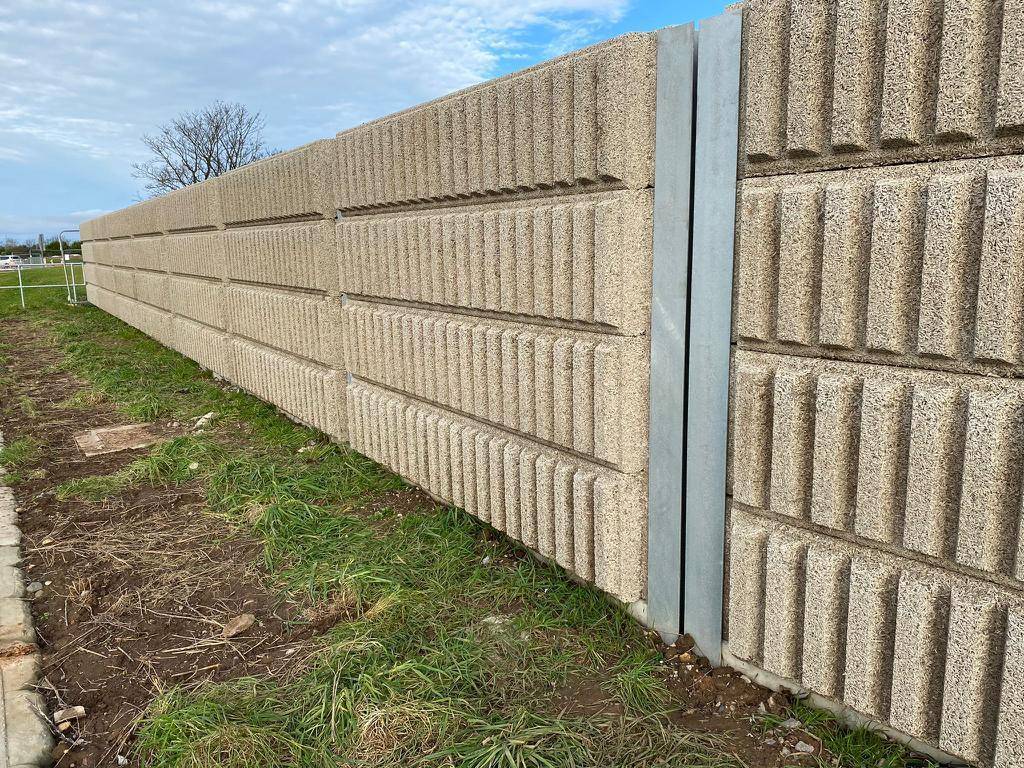

- Innovative design: Noise barrier and retaining wall panels are stacked on top of each other.
- Versatile: Suitable for slope conditions, directional changes and areas with difficult site access. Fewer panels reduces on-site handling and installation costs.
- Cost effective: longest post spacing in the range.
- Flexible: panels can be modified on-site for short bays.
- Ideal for straight runs of wall with good site access where noise absorption is not required on the residential side.
- Each panel is made of high strength concrete, with acoustical absorption.
- The size and pattern of the perforations are designed to protect and maintain the sound-absorptive capability of the acoustic fill inside the panels.
- Highly sound absorptive, porous, rigid, non-combustible, thermally insulating and freeze-thaw resistant.
- Engineered in-house and specify the size for posts and the depth and diameter of footings. Standard steel posts or optional concrete posts can be accommodated.
- The standard systems are noise absorptive on both sides; they can also incorporate solid noise reflective or transparent elements, as well as integrated traffic barriers and retaining wall panels.
- The reverse side of the panel facing away from the noise source can be manufactured to offer a reflective or absorptive surface depending on the site requirements.
- Panels can be manufactured in a variety of architectural textures, patterns and colours.
- Due to the high density and strength of the panel the system is well suited for areas where there are grade differences between the two sides of the barrier.
- Individual panels can be removed and replaced: should replacement be called for as a result of structural damage, the panels can be changed in a safe and efficient way.
- Panels are not bolted, welded, or otherwise permanently fastened to each other or to the support posts (top security fixing added if required).
General information
Color | Brown Beige Orange Yellow Green |
Finish | Textured Guidance for specification option: Concrete. Anti-graffiti Cement Brick Grooved |
Material | Concrete Steel |
Shape | Rectangle Square |
Length | 4000 mm 5000 mm |
Width | Bespoke |
Height | 2000 mm 2500 mm 3000 mm 3500 mm 4000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q40/170 Acoustic fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Post and panel fencing systems
System performance | Guidance for specification option: Insert requirements and cross-reference to related clause(s) e.g. Performance of acoustic fencing, or omit. |
Posts | Polyester powder-coated (PPC) steel posts with baseplates.Guidance for specification option: Insert colour requirements, any RAL. Can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles. Polyester powder-coated (PPC) steel posts.Guidance for specification option: Insert colour requirements, any RAL. Can be set into augered or bucket dug concrete foundations. Galvanized steel posts with baseplates.Guidance for specification option: Can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles. Galvanized steel posts.Guidance for specification option: Can be set into augered or bucket dug concrete foundations. Concrete posts.Guidance for specification option: Optional. Consult manufacturer for details. Manufacturer guidanceDesign life: 60+ years. Consult manufacturer for further details. |
Post foundations | Concrete foundations.Continuous concrete pad and strip foundation systems.Individual concrete pads.Manufacturer guidanceConsult manufacturer for recommended fixing methods and insert requirements under Fixings below. Ensure the post includes a baseplate where appropriate (see Posts above). |
Rails | Not applicable. |
Base boards | Not applicable. |
Panels | CONCRETESoundBlok® panels, concrete.Guidance for specification option: Made of a proprietary material consisting of organic softwood shavings processed to an acoustically engineered size and bonded together under pressure with Portland cement. Manufacturer guidanceDesign life: 60+ years. Specify panel dimensions(s) below, see Panel size. Specify colour(s), pattern(s) and texture(s) below, see Colour/ Pattern. |
Fence topping | Manufacturer's standard. |
Site applied finishes | Not applicable. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Samples required | Product samplesPrototypes |
Colour/ Pattern | Guidance for specification option: Consult manufacturer for colour, texture and pattern options and insert requirements. |
Panel size | Guidance for specification option: Insert requirements or e.g. drawing reference/ schedule:
Bespoke heights available on request. |
Fixings | Guidance for specification option: Consult manufacturer for options based on post foundations and insert requirements.
See also Posts for baseplate options. |
Technical characteristics, other | Barrier rating: A4, B4. |
Panel weight | 205 kg/m². |
Sustainability data
Material | Concrete Steel |
Literature

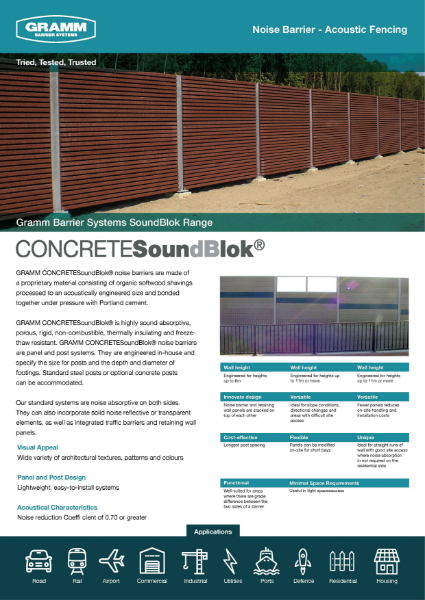

CONCRETESoundBlok
