METASoundBlok Steel Acoustic Barrier - Metal Noise Barrier System
Verified by manufacturer 1 month ago
Steel noise barrier system designed to reduce and absorb noise generated by road, rail traffic and industrial noise with long design life.
Application
Absorptive/ reflective noise barrier, suited to road, rail, housing and industrial projects.
Description
METASoundBlok steel noise barrier's inner face of the panel (directed at the noise source) has holes over 35% of the surface area to provide noise absorption, while the outer face is a plain reflective panel. The panels are then installed into steel RSJ noise barrier posts in 500 mm increments to achieve the desired overall height.
Features and benefits:
- Made from galvanized steel plating which can be powder coated to any shade of RAL colour.
- It is CE Marked and fully National Highways compliant system for use on road schemes under CPR 2013.
- Its construction makes it a cost effective solution for use on Highways and Housing Schemes across the UK.
- The inside of the panel is made up of sound absorbing Rockwool mineral wool to achieve the highest A5 noise reduction rating.
- Fully complies with LD 119.
- Made in Wales.
- Panels can span various lengths to suit individual project requirements up to 5 m in length.
General information
Color | Silver Guidance for specification option: Galvanized steel. Blue Brown Green Grey |
Finish | Coated Stainless steel Painted |
Material | Steel Mineral wool |
Shape | Square Rectangle |
Length | 3000 mm 4000 mm 5000 mm |
Width | Bespoke |
Height | 1500 mm 2000 mm 2500 mm 3000 mm 3500 mm |
Warranty description | Other |
Uniclass | |
CAWS | Q40/430 Proprietary fencing Q40/170 Acoustic fencing Q40/30 Proprietary fencing |
Product range |
Specification data - Post and panel fencing systems
System performance | Guidance for specification option: Insert requirements and cross-reference to related clause(s) e.g. Performance of acoustic fencing, or omit. |
Posts | Galvanized steel RSJ posts.Guidance for specification option: Consult manufacturer for full details. Polyester powder-coated (PPC) steel RSJ posts.Guidance for specification option: Insert colour requirements, any RAL. Manufacturer guidanceDesign life: 60+ years. To be installed at 500 mm increments. |
Post foundations | Concrete foundations.Continuous concrete pad and strip foundation systems.Individual concrete pads.Manufacturer guidanceConsult manufacturer for recommended fixing methods and insert requirements under Fixings below. |
Rails | Not applicable. |
Base boards | Not applicable. |
Panels | METASoundBlok® panels, PPC steel.Guidance for specification option: Insert colour requirements, any RAL. Made from DX51D+Z200/275-NA grade galvanised steel plating. METASoundBlok® panels, galvanized steel.Guidance for specification option: Made from DX51D+Z200/275-NA grade galvanised steel plating. METASoundBlok® panels, Cor-Ten steel.Guidance for specification option: Made from DX51D+Z200/275-NA grade steel plating. METASoundBlok® panels, PPC aluminium.Guidance for specification option: Insert colour requirements, any RAL. Consult manufacturer for further details e.g. aluminium grade. Manufacturer guidanceDesign life: 40 years. Specify panel dimensions(s) below, see Panel size. Panel build-up:
|
Fence topping | Manufacturer's standard. |
Site applied finishes | Not applicable. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Samples required | Product samplesPrototypes |
Panel size | Guidance for specification option: Insert requirements or e.g. drawing reference/ schedule:
Bespoke heights/ lengths available on request. |
Fixings | Guidance for specification option: Consult manufacturer for options based on post foundations and insert requirements. |
Technical characteristics, other | Barrier rating: A5, B3. |
Panel weight | 22 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 75% |
Literature

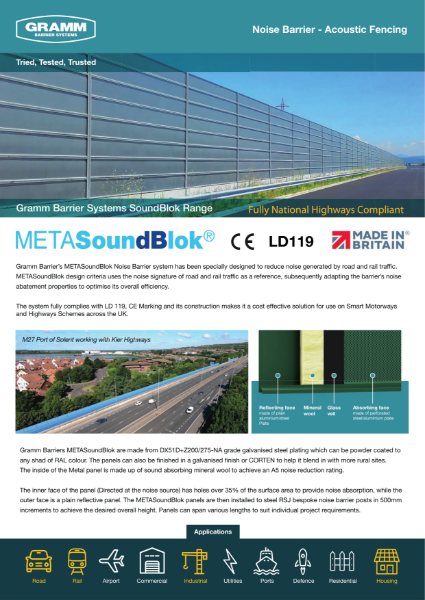

METASoundBlok Absorptive Steel Noise Barrier
METASoundBlok Layout Drawing
