PN40 Semi-Lugged High Performance Double Regulating Butterfly Valve

Verified by manufacturer 5 months ago

DN50 - 5590B 09G DRV

FLOCONTROL LTD Variant:

Semi lugged carbon steel high performance butterfly valve.

Jump to:
+44 1282 564425 Website

Application

To provide controlled resistance in riser branches.

Description

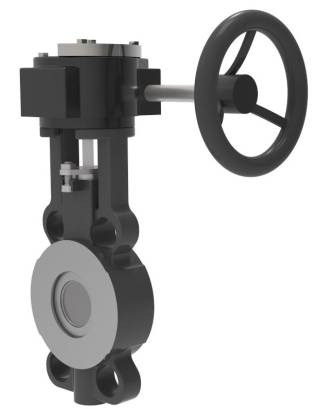

Semi lugged carbon steel high performance butterfly valve, fitted with gear operator for infinitely variable settings and stainless steel memory stop feature (DRV) to precisely set and retain the desired maximum opening position differential pressure. Once set, the valve can be closed and re-opened accurately to the pre-set differential pressure.


The product is a commercially attractive option compared to traditional Globe-style double regulating valves. The butterfly valve concept is space saving and easier to support when weight is a concern. The valve is also available in large sizes up-to and including 800 mm diameter.


Features and benefits:

  • PN40-50 (size dependent) double regulating wafer type gear operated butterfly valve
  • Temperature range -29°C to 225°C
  • Sizes: 50 – 400 mm, larger sizes available on request
  • Robust and easy to install and operate semi lugged gear operated butterfly valve
  • Easy to set accurately, positive position and reset memory stop feature
  • Stainless steel memory stop feature (DRV)
  • Bureau Veritas Certification
  • Testing according to API 598
  • Light weight and cost-effective.


Memory Stop Application:

The stainless steel memory stop feature (DRV) sets and retains the desired maximum opening position and differential pressure. Once set, the valve can be closed and re-opened accurately to the pre-set differential pressure.

General information

Color

Black

Silver

Material

Carbon steel

Warranty description

18 months

Uniclass

Pr_65_54_95_26 Double regulating valvesPrimary
Pr_65_54_95_08 Butterfly valves

CAWS

S90/650 Flow-reducing/ servicing valves

S90/650 Flow reducing/ servicing valves

Product range

Valve Assemblies for Specific Applications
FloControl range of General Valves for hydronic systems in commercial buildings

Specification data - Double regulating valves

Arrangement

Wafer.

Material

Carbon steel. Seat: R-PTFE [25% fiberglass -reinforced PTFE].

Working temperature

-29 to + 225°C.

Design

Double eccentric.

MaximumWorkingPressure

50 bar: up to 4”, 40 bar: 5” to 8”.

Pressure

PN40.

Sustainability data

Country of material origin

France

Country of product manufacture

United Kingdom

Literature

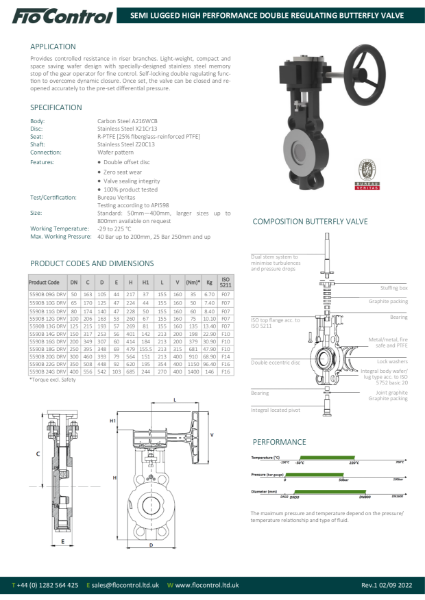

PN40 Semi Lugged High Performance Double Regulating Butterfly Valve
