Verified by manufacturer 5 months ago
Extra Low Flow DN 15
Statement of compliance
Certificate type

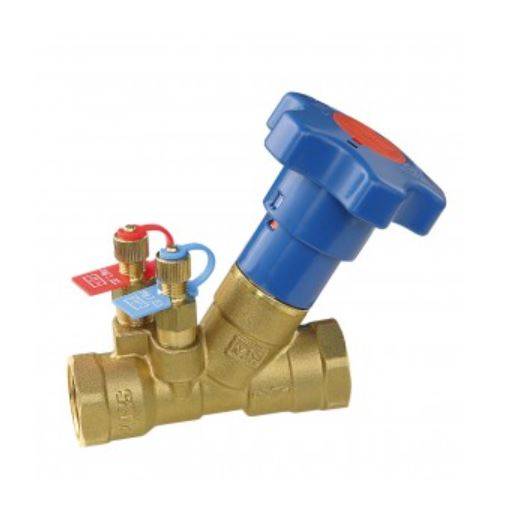

DZR commissioning valve.
Fixed orifice DZR brass double regulating valve.
Features and benefits:
Sizes:
Color | Gold |
Finish | Brass |
Material | Brass |
Warranty description | 18 months |
Uniclass | |
CAWS | S90/650 Flow-reducing/ servicing valves S90/650 Flow reducing/ servicing valves |
Product range |
Standard | Design according to BS 7350. |
Material | Brass |
Connections | Threaded F/F (ISO 228/1 for DN15 and DN20, ISO 7/1 Rp above |
Type: | 9510 Series Threaded Commissioning Valve - Fig. 9515, with test points. 9510 Series Threaded Commissioning Valve - Fig. 9516, with test points (high pressure TP with drain). Manufacturer guidanceConsult technical literature for Part Number and insert requirements. |
TemperatureRange | -15 to 120°C. |
WorkingPressure | 16 Bar. Guidance for specification option: PN16 with O/N kit (Max 16 bar up to 30°C, max 5 bar at 120°C) 25 Bar. Guidance for specification option: PN25 (Max 25 bar up to 110°C, max 20 bar above) |
ConnectionType | ½". Manufacturer guidanceFor dimensions and flow measurement, consult manufacturer's literature. |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
