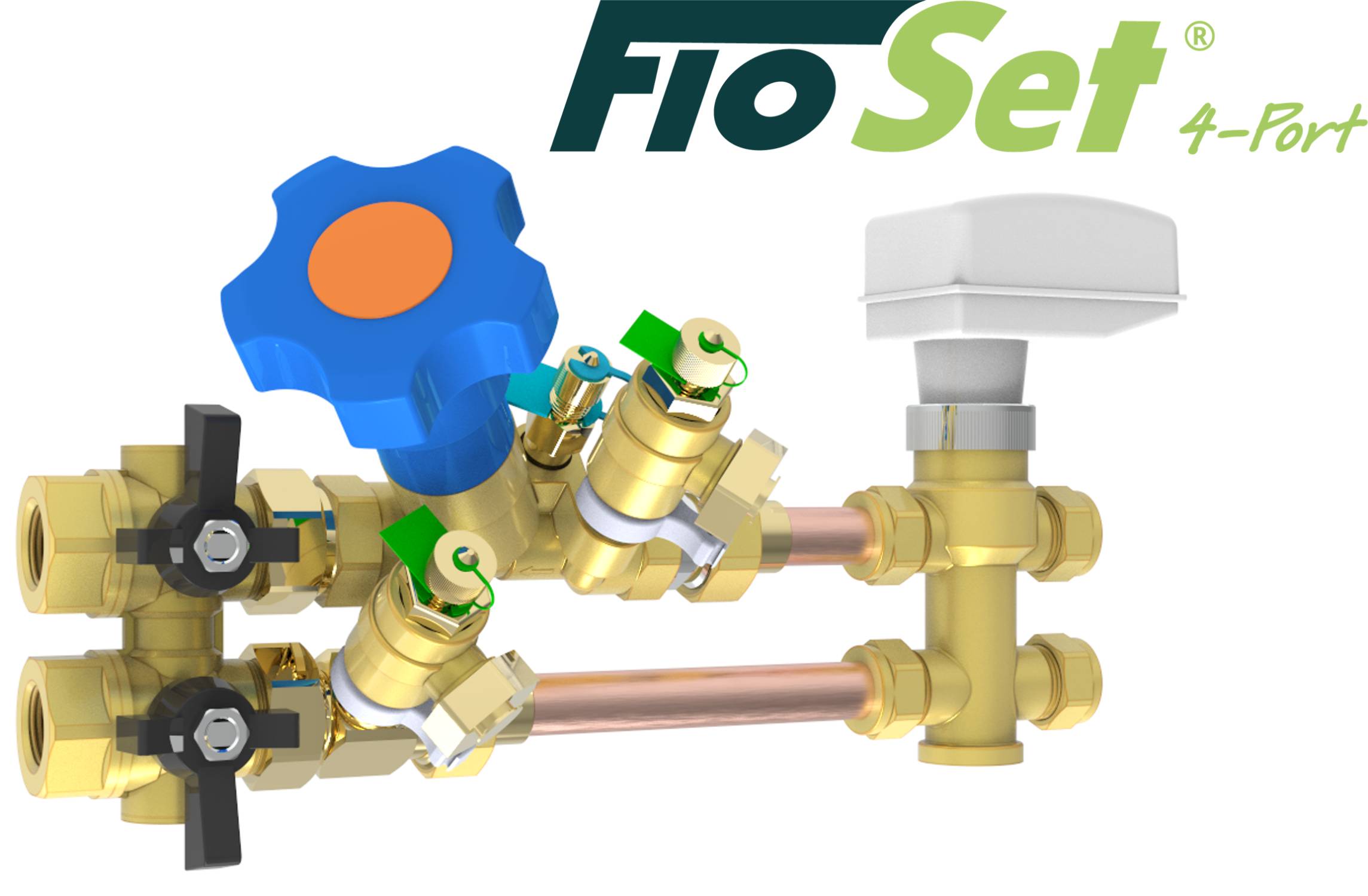

FloSet 4-Port Commissioning

Verified by manufacturer 5 months ago

CR.3.x.1X.J DN15

FLOCONTROL LTD Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

Commissioning valve set to manually balance a Fan Coil Unit installation in a Constant Flow System. Fully BSRIA BG29/21 compliant.

Jump to:
+44 1282 564425 Website

Application

Fan coil unit.

Description

PN25-rated, forged DZR FloSet 4-Port, suitable for heating and cooling applications with water temperatures from -10ºC to 120ºC.


Features and benefits:

  • Handed to suit duty.
  • Vertical or horizontal alignment.
  • Assembly to include the FlowCon five-position flushing by-pass including full isolation, on 40 mm centres; FlowCon combined PT Plug & Drain in the flow branch; VIR FODRV in the return branch, flushing, drain and test points in the flow and return branches.
  • Johnson Controls four-port with 24 V modulating or raise lower actuator.


Valve assembly must be supplied labelled with the correct terminal unit reference, duty, flow rate, FODRV ID, setting, metering station ID and signal and QR code link to technical documentation.

General information

Color

Gold

Blue

Finish

Brass

Material

Brass

EPDM

Warranty description

18 months

Uniclass

Pr_65_54_95_26 Double regulating valvesPrimary

Product range

FloSet

Specification data - Double regulating valves

Arrangement

As Type.

Material

Forged DZR brass, elastomers EPDM.

Connections

System side: standard fixed ISO female, DN15; FCU side: compression.

Manufacturer guidance

System side: Suitable for EuroCone according to EN 215.

Type:

-

Manufacturer guidance

Insert requirements or six-part product code as follows (format Cx.n1.n2.n3.x.J):


Cx:

  • CL: Left-handed FloSet.
  • CR: Right-handed FloSet.
  • CH: Horizontal FloSet.

n1:

  • 0: No addition to the flow branch.
  • 1: Plain strainer.
  • 2: PT plug.
  • 3: Combined PT plug and drain valve.
  • 5: Plain strainer and PT plug.
  • 6: Plain strainer and combined PT plug and drain valve .

n2:

  • 1: 15 XLF commissioning valve (Kvs 0.263).
  • 2: 15 ULF commissioning valve (Kvs 0.55).
  • 3: 15 LF commissioning valve (Kvs 1.15).
  • 4: 15 commissioning valve (Kvs 2.80).
  • 5: 30 commissioning valve (Kvs 5.33).

n3:

  • 1: Union solder FCU connections.
  • 2: Compression FCU connections.

x:

  • Q: Free-issued four-port.
  • U: 0.25 Kv four-port.
  • V: 0.4 Kv four-port.
  • W: 0.63 Kv four-port.
  • X: 1.0 Kv four-port.
  • Y: 1.6 Kv four-port.
  • Z: 2.5 Kv four-port.

J:

  • J = Johnson Controls four-port (standard).

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Statement of compliance

Statement of compliance

FlowCon Internally Adjustable Composite ABV PED Certificate

Statement of compliance

Statement of compliance

FlowCon Metering Station PED Certificate

Statement of compliance

Statement of compliance

FlowCon Mini Flushing Bypass 40mm Centres PED Certificate

Statement of compliance

Statement of compliance

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Statement of compliance

Statement of compliance

FlowCon Externally Adjustable E-Just ABV PED Certificate

Literature

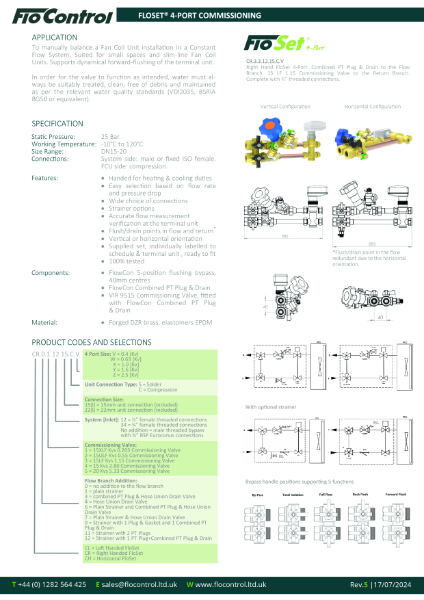

FloSet 4-Port Commissioning

FloSet 4-Port Commissioning

FloSet Brochure

FloSet Brochure
