PN16 and PN25 Fully Lugged Double Regulating Butterfly Valve

Verified by manufacturer 1 month ago

DN65 PN16 LUGN50065MDVEPV1623DRV

FLOCONTROL LTD Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

Lugged double regulating butterfly valves.

Jump to:
+44 1282 564425 Website

Application

The Double Regulating Butterfly Valve is a commercially attractive option compared to traditional Globe-style Double Regulating Valves. The Butterfly Valve concept is space saving and easier to support when weight is a concern. The Double Regulating Butterfly Valve is also available in large sizes up-to and including 600 mm diameter. Pressure/Temperature plugs are provided to measure ΔP, which are to be installed in the pipework on either side of the valve.

Description

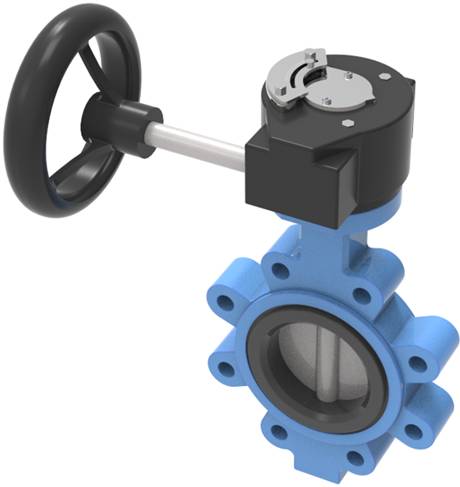

Fully lugged ductile iron Butterfly Valve with bonded EPDM liner and stainless steel trim, fitted with gear operator for infinitely variable settings and stainless steel memory stop feature (DRV) to precisely set and retain the desired maximum opening position differential pressure. Once set, the valve can be closed and re-opened accurately to the pre-set differential pressure.


The Double Regulating Butterfly Valve is a commercially attractive option compared to traditional Globe-style Double Regulating Valves. The Butterfly Valve concept is space saving and easier to support when weight is a concern. The Double Regulating Butterfly Valve is also available in large sizes up-to and including 600mm diameter. Pressure/Temperature plugs are provided to measure ΔP, which are to be installed in the pipework on either side of the valve.


Features and benefits:

  • PN16/ PN25 Double Regulating Flanged Gear Operated Butterfly Valve
  • Temperature range -15°C to 120°C
  • Sizes: 65 – 600mm, larger sizes available on request
  • Robust and easy to install and operate fully lugged gear operated Butterfly Valve
  • Easy to set accurately, positive position and reset memory stop feature
  • Lightweight.

General information

Color

Blue

Black

Material

Iron

Stainless steel

Rubber

Warranty description

18 months

Uniclass

Pr_65_54_95_26 Double regulating valvesPrimary
Pr_65_54_95_08 Butterfly valves

CAWS

S90/650 Flow reducing/ servicing valves

S90/650 Flow-reducing/ servicing valves

Product range

Valve Assemblies for Specific Applications
FloControl range of General Valves for hydronic systems in commercial buildings

Specification data - Double regulating valves

Standard

To BS EN 12266-1 & European PED #2014/68/EU, 15/05/2014, CE marked.

Material

Body Ductile Iron. RAL 5015 (thickness 250 micron). Disc, Pin Stem: Stainless Steel. Seat: Vulcanized EPDM.

TemperatureRange

-15 to 120°C.

WorkingPressure

16 Bar.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

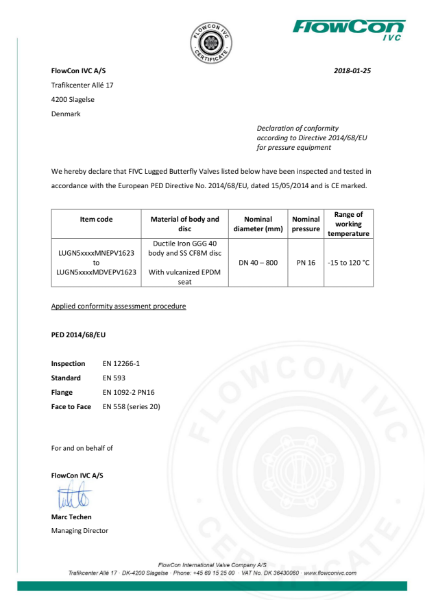

Statement of compliance

Statement of compliance

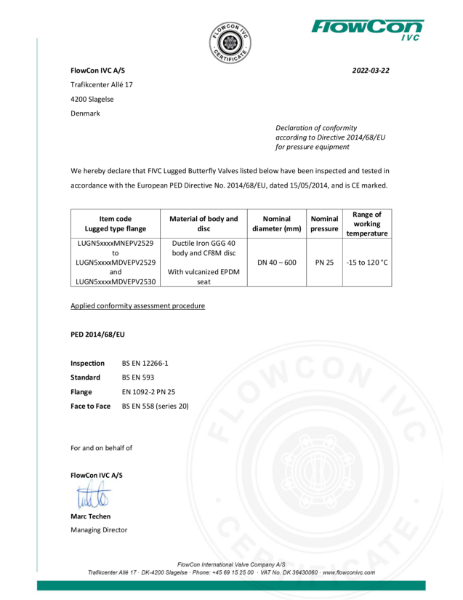

FIVC PED LUGN5 Butterfly Valves PN16

Statement of compliance

Statement of compliance

FIVC PED LUGN5 Butterfly Valves PN25

Literature

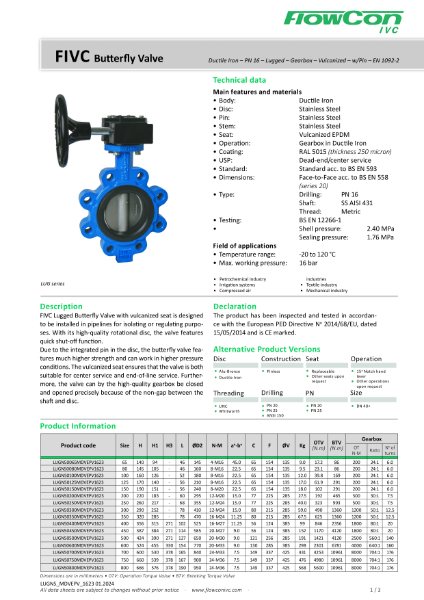

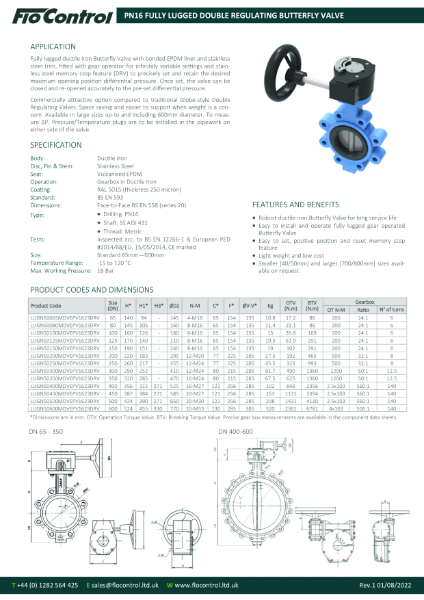

PN16 Fully Lugged Double Regulating Butterfly Valve

PN16 Fully Lugged Double Regulating Butterfly Valve

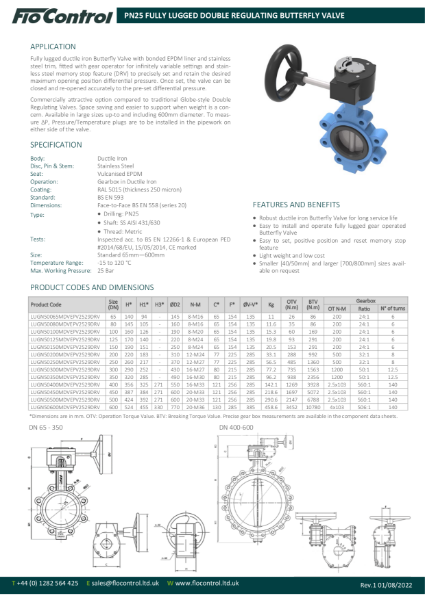

PN25 Fully Lugged Double Regulating Butterfly Valve

PN25 Fully Lugged Double Regulating Butterfly Valve

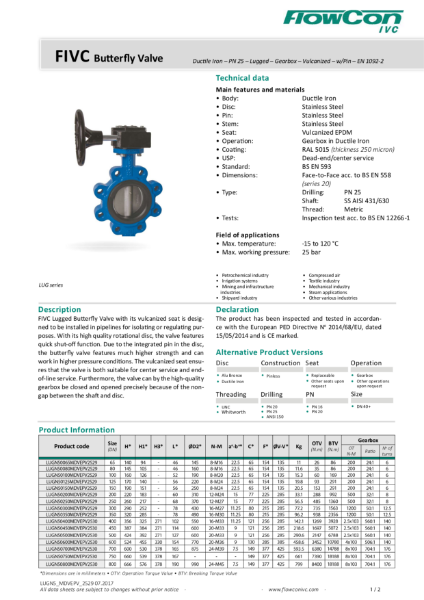

FlowCon IVC PN25 Gear Operated Fully Lugged Butterfly Valve

FlowCon IVC PN25 Gear Operated Fully Lugged Butterfly Valve

FlowCon IVC PN16 Gear Operated Fully Lugged Butterfly Valve

FlowCon IVC PN16 Gear Operated Fully Lugged Butterfly Valve
