9500 Series WRAS-Approved Bronze Double Regulating Valve
Verified by manufacturer 5 months ago
9500 Series - DN10
9500 Series - DN10
WRAS
Certificate type
Statement of compliance
Certificate type
Bronze double regulating valve, WRAS approved.
Application
- Suitable for: water, -10°C to +130°C below 0°C only for water with added antifreeze fluids over 100°C only for water with added anti-boiling fluids (Ethylene glycol or propylene glycol mixtures up to 50% may be used)
- Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU) .
Description

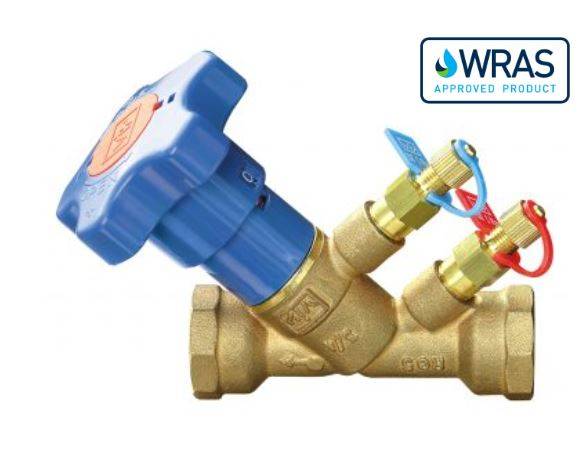

WRAS-approved bronze double regulating valve.
Features and benefits:
- WRAS-approved PN25 Variable Orifice Double Regulating Valve with P/T Plugs
- Design in accordance to BS 7350
- Temperature range: -10°C to 130°C
- Bronze Construction
- ABS Hand-wheel operated
- Numerical indicator
- Characterised regulating disk
- Supplied with two P/T Plugs as standard
- Sizes: 1⁄2” – 2” end connections threaded.
General information
Color | Gold Blue |
Finish | Matt |
Material | Bronze |
Shape | Other |
Warranty description | 18 months |
Uniclass | |
CAWS | S90/650 Flow-reducing/ servicing valves S90/650 Flow reducing/ servicing valves |
Product range |
Specification data - Double regulating valves
Standard | Design according to BS 7350. |
Material | Bronze |
Connections | Threaded F/F (ISO 228/1). |
Type: | Fig. 9500 Guidance for specification option: Fig. 9500, with threaded and plugged drains (¼" ISO 7/1Rp) (allow later mounting of test points). Fig. 9505 Guidance for specification option: Fig. 9505, with test points. Fig. 9506 Guidance for specification option: Fig. 9506, with test points (high pressure TP with drain). Manufacturer guidanceConsult literature for details, dimensions etc and insert requirements. |
ConnectionType | 3/8". Manufacturer guidanceFor dimensions and flow measurement, consult manufacturer's literature. |
Weight | 474 g. |
TemperatureRange | -10°C to 130°C. |
Sustainability data
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
