Plastic Access Panels

Verified by manufacturer 4 months ago

Access Panels Direct

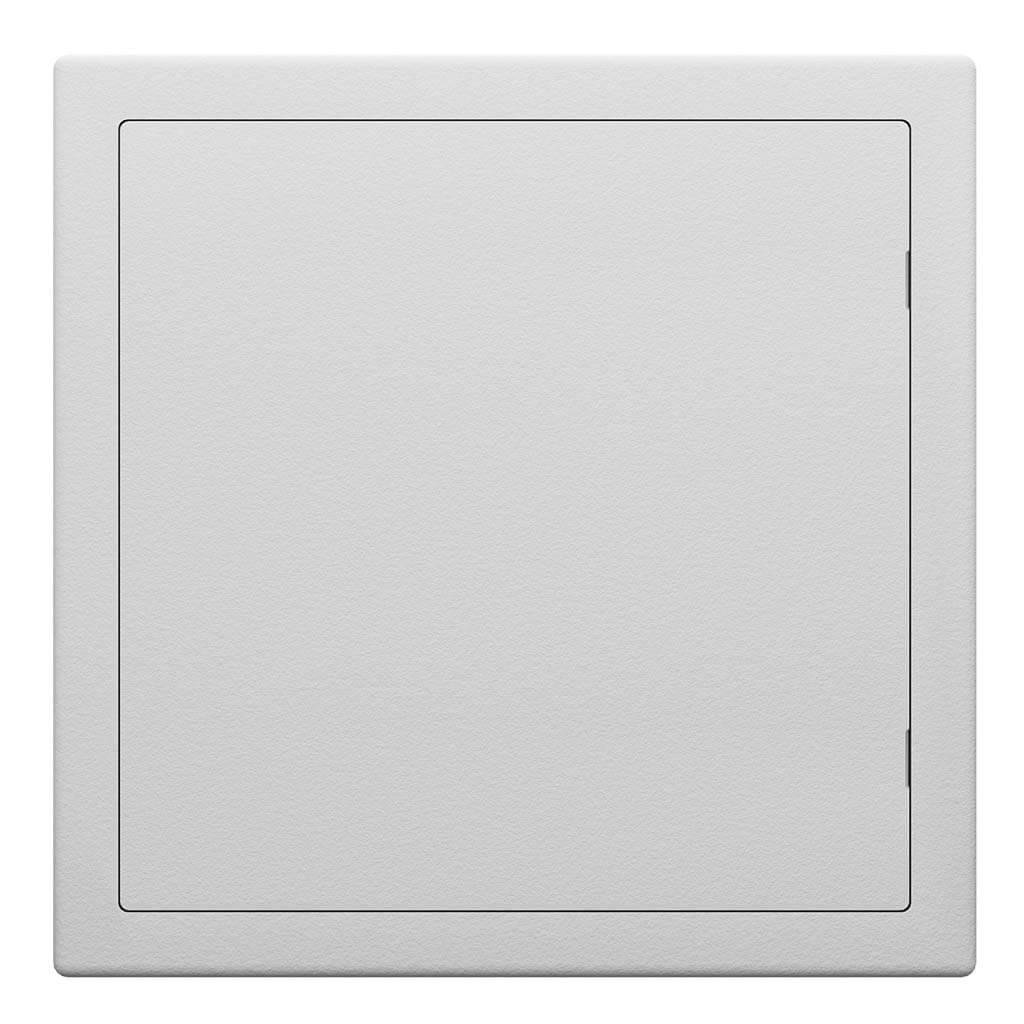

Plastic access panel.

Jump to:
BOS
01922 313518 Website

Application

Plastic access panels are designed to fit into any type of wall system where access is required to stopcocks, pipes etc, or simply used to fill unsightly holes, saving the need for expensive repairs. The high impact styrene plastic with U.V. stabilizers will not fade or corrode.

Description

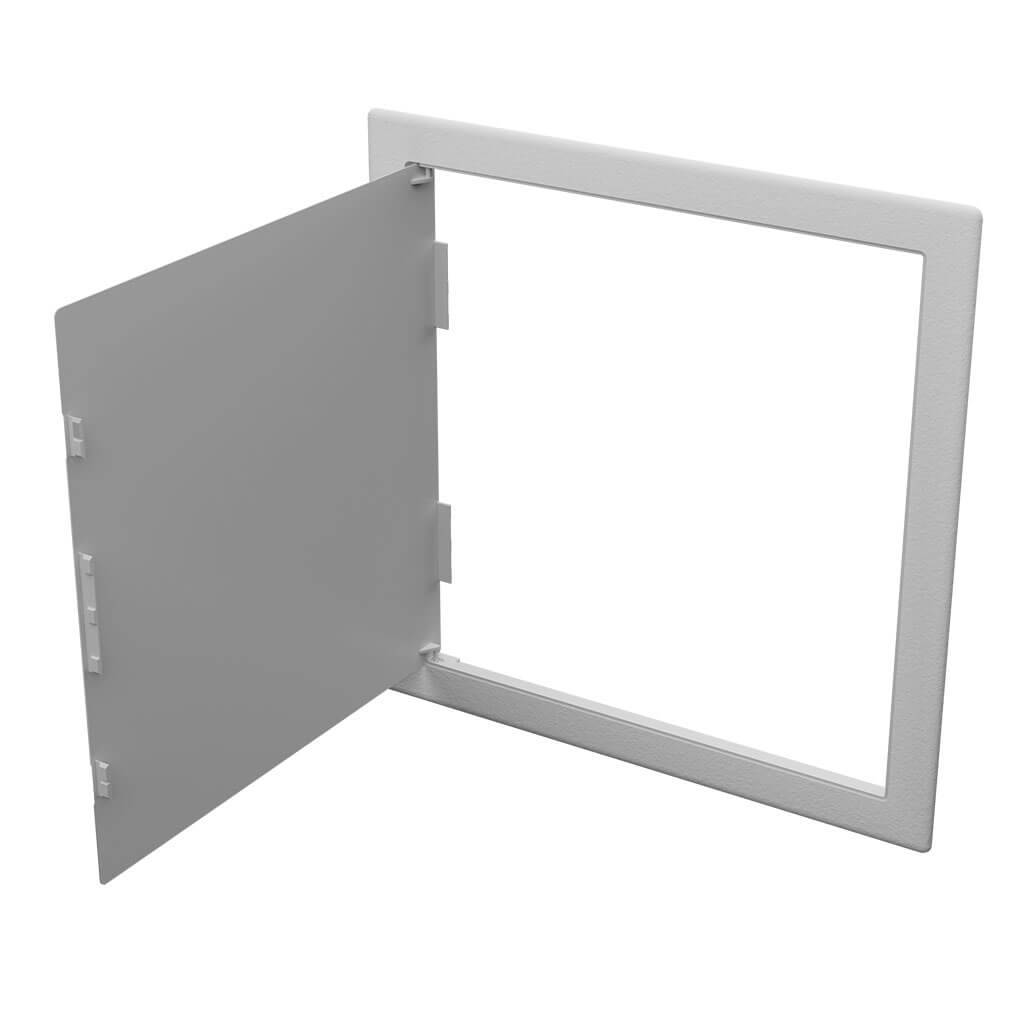

Plastic access panels are manufactured from 3 mm thick high impact styrene plastic with U.V. stabilizers with a white textured exposed surface to allow for painting. The plastic access panel has a 25 mm picture frame for retrofit and rounded safety corners on the door. Simple to install and available in five sizes.


Features and benefits:

  • 25 mm picture frame for retrofit.
  • Rounded safety corners on the door.
  • 3 mm thick high impact styrene plastic.
  • U.V. stabilizers with white textured exposed surface to allow for painting.
  • Easy installation.

General information

Shape

Square

Color

White

Guidance for specification option:

Suitable for painting.

Finish

Textured

Material

Plastic

Warranty description

10 year

Guidance for specification option:

Valid if the access panel is used correctly, not misused and is not modified in any way.

Size

102 x 152 mm

152 x 228 mm

203 x 203 mm

355 x 355 mm

558 x 558 mm

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/57 Encasement on timber framing

K10/55 Encasement system (metal framing)

K10/41 Wall lining system (metal furrings)

K10/35 Wall lining system (metal framing)

K10/45 Wall lining system (adhesive)

K10/50 Suspended ceiling system on metal framing

K10/30 Metal stud

K10/15 Lining on timber

K10/25 Ceiling lining on timber

K10/430 Access panels

Specification data - Access panels

Position

Wall mounted.

Ceiling mounted.

Size

102 x 152 mm.

152 x 228 mm.

203 x 203 mm.

355 x 355 mm.

558 x 558 mm.

Frame

Exposed picture frame type.

Panel

-

Material

Styrene plastic.

Guidance for specification option:

3 mm thick, U.V. stabilizers.

Integral finish

White.

Guidance for specification option:

Suitable for painting.

Latch or lock type

Lift out.

Operation

Manual.

Thickness

3 mm.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
