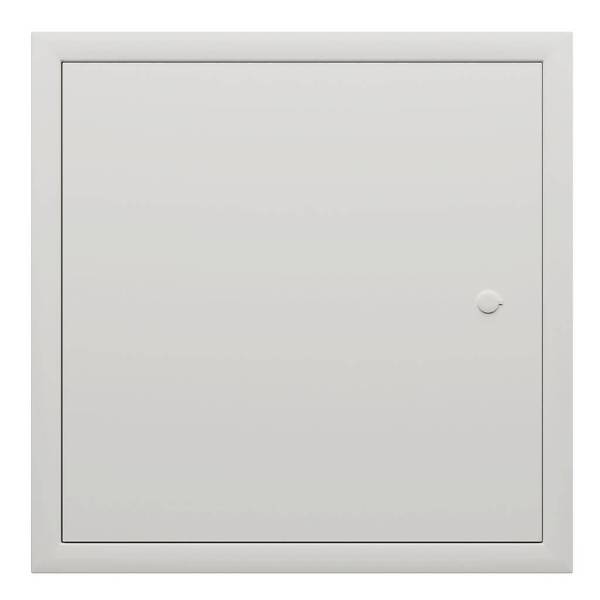

Access Panel - Metal Door with Picture Frame

Verified by manufacturer 4 months ago

Access Panels Direct

Access panel featuring a metal door and picture frame.

Jump to:
BOS
01922 313518 Website

Application

Suitable as standard wall or ceiling access panel.

Description

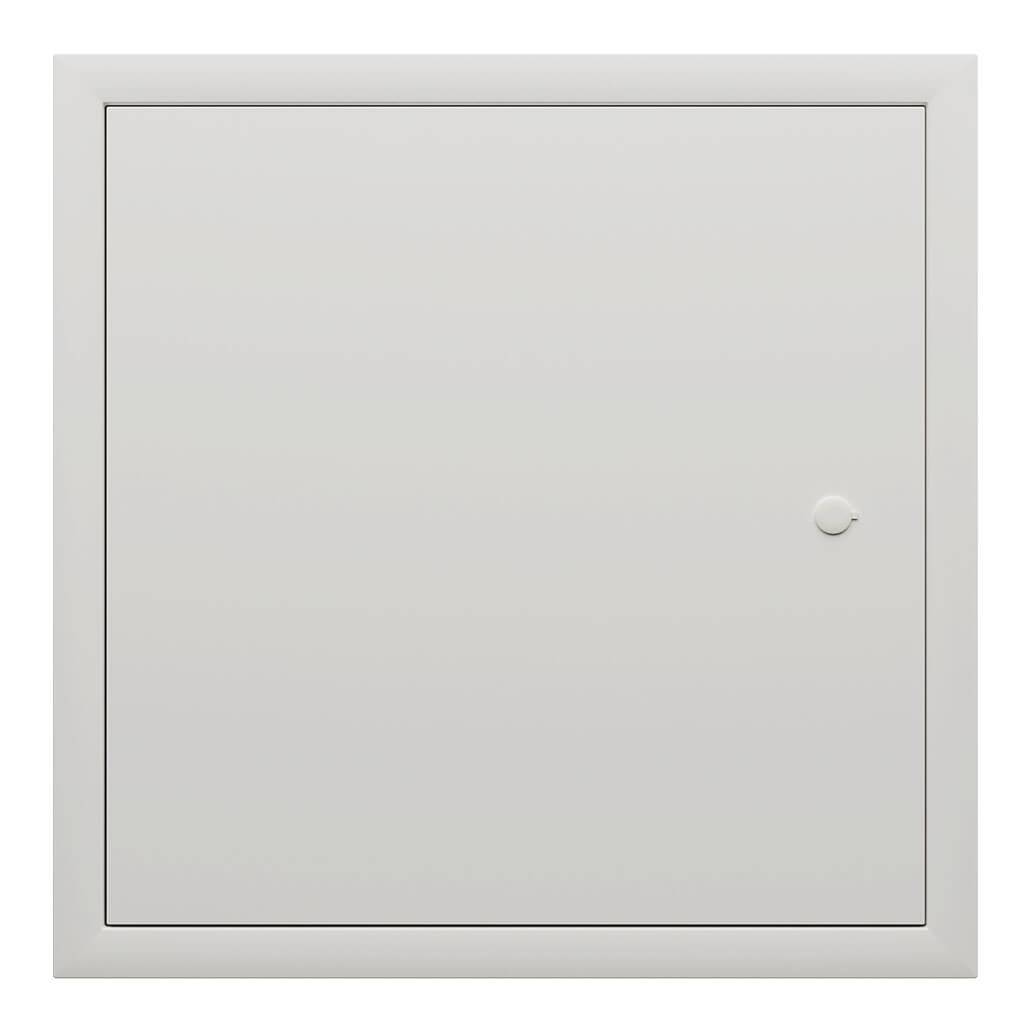

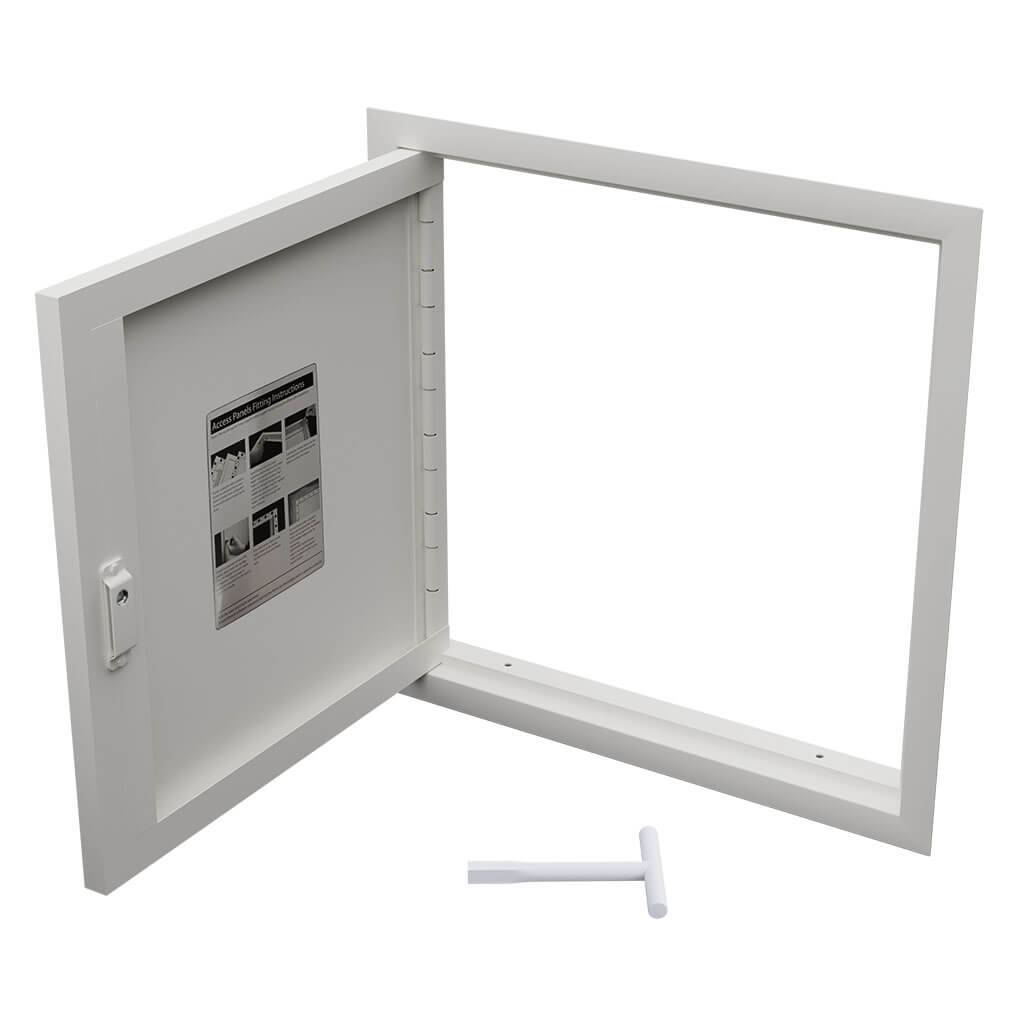

The APD.MD.PF (Access Panels Direct, Metal Door, Picture Frame) Access Panel is a non-fire rated access panel, featuring a picture frame and metal door. This particular panel is multipurpose, this means it can be used in both a wall and ceiling system. The flush metal door has a concealed continuous hinge and is secured using a standard budget lock. Manufactured from 1.2 mm and 0.9 mm Zintec Steel, with a polyester powder coating of matt white RAL 9010 20% gloss (other colours available upon request).


Features and Benefits:

  • 25 mm picture frame surround.
  • Budget lock, touch catch, three-way lock, tamper-proof lock & key lock available.
  • Powder coated RAL 9010 20% gloss.

General information

Color

White

Guidance for specification option:

Polyester Powder Coated in matt white RAL 9010 20% gloss.

Finish

Powder-coated

Material

Steel

Guidance for specification option:

Zintec steel.

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Valid if the access panel is used correctly, not misused and is not modified in any way.

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/57 Encasement on timber framing

K10/55 Encasement system (metal framing)

K10/50 Suspended ceiling system on metal framing

K10/45 Wall lining system (adhesive)

K10/41 Wall lining system (metal furrings)

K10/35 Wall lining system (metal framing)

K10/30 Metal stud

K10/25 Ceiling lining on timber

K10/15 Lining on timber

K10/430 Access panels

K11/990 Access panels

K20/360 Access panels

K21/340 Access panels

K40/280 Access units

Specification data - Access panels

Position

Wall mounted.

Ceiling mounted.

Size

300 x 300 mm.

450 x 450 mm.

550 x 550 mm.

600 x 600 mm.

600 x 900 mm.

600 x 1200 mm.

Frame

Exposed picture frame type.

Panel

-

Material

Steel.

Guidance for specification option:

Zintec steel.

Integral finish

Powder coated.

Guidance for specification option:

Polyester Powder Coated in matt white RAL 9010 20% gloss.

Latch or lock type

Budget Lock.

Other.

Guidance for specification option:

Other lock types available except slotted cam lock.

Length

1200 mm.

NominalWidthOrDiameter

600 mm.

Thickness

1.0–1.2 mm.

Guidance for specification option:

1.2mm thick frame and 1.0mm thick door tray.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Zintec steel.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
