Plaster Sink - G22000LN
Verified by manufacturer over a year ago

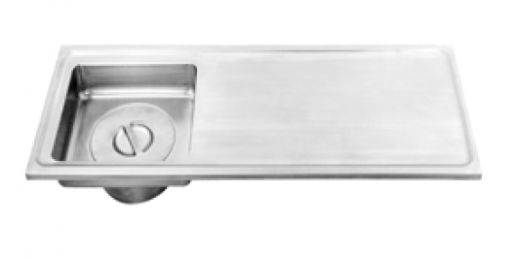

PSH plaster sink - Left hand drainer.
Application
For wall mounting.
Description
Plaster sink with left hand drainer.
Features and Benefits:
- Bowl incorporates a plaster catcher sump which is prepared for a 38 mm waste.
- A flush grated waste is available as an extra.
- A plaster catcher/basket and lid is supplied which fits into the sump in order to prevent loose plaster from entering the waste and causing a blockage.
- The sink is designed without tap holes so taps would need to be wall mounted.
- Stainless steel cantilever brackets and stainless steel front leg supports can be supplied as an extra. Both these types of supports rely on a strong wall fixing, particular when the brackets are fitted.
- No wall fixing are supplied.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Rectangle |
Length | 600 mm |
Width | 1200 mm |
Height | 394 mm |
Warranty description | Five year |
Uniclass |
Specification data - Sinks
Form | Wall mounted. |
Bowls | One. |
Drainers | One, left hand. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin. |
Size | 1.2 mm.Guidance for specification option: In thickness and available in 1200 mm length. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: So any taps to be fitted must be wall mounted. |
Waste | Prepared for a 38 mm waste. A flush grated waste is available as an extra |
Product Reference | (G22000LN) 207.0584.433 |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
