Catering Sink - Midi Double Bowl (Double Drainer)
Verified by manufacturer over a year ago

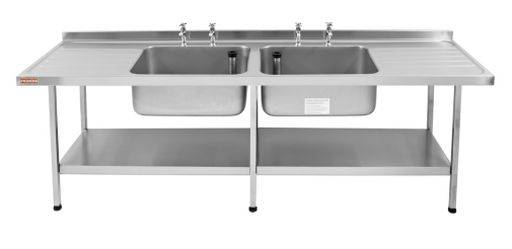

Catering sink with double central bowls and double drainer, 2400 x 650 mm.
Application
Large catering sink.
Description
Catering sink with double central bowls and double drainer, 2400 x 650 mm.
Features and benefits:
- Large catering sink, 900 mm high.
- Manufactured from 1.2 mm thick grade 1.4301 (304) stainless steel polished to a satin finish.
- Includes two tap holes behind each bowl, drilled at 180 mm centres. Suitable for pillar taps.
- Bowls are all supplied with 38 mm waste and standpipe strainer overflow. An earthing lug is fitted under the drainer.
- Each leg is fitted with an adjustable foot with a working height of 900 mm.
- Available in further configurations (specified separately).
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304) |
Shape | Rectangle |
Length | 650 mm |
Width | 2400 mm |
Height | 900 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Under mounted.Guidance for specification option: Mounted with underframe (sold separately). |
Bowls | Two. |
Drainers | Two. |
Materials | |
Body | Stainless steel.Guidance for specification option: Grade 1.4301 (304). |
Finish and colour | Satin. |

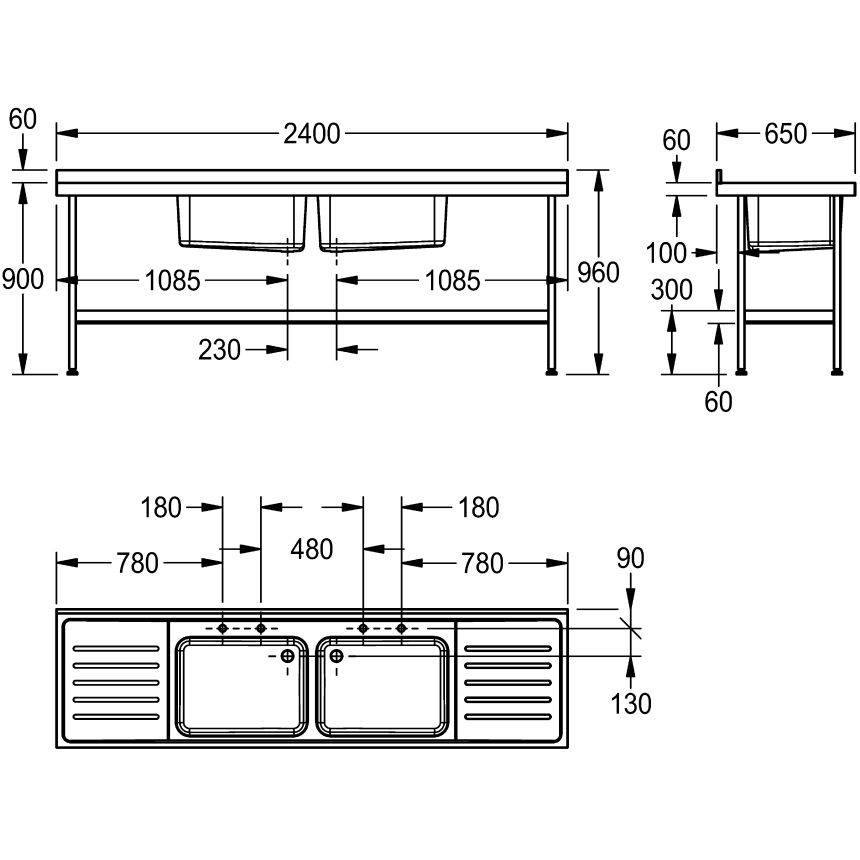

Size | 2400 x 900 x 650 mm.Guidance for specification option: Overall size (with underframe- sold separately), Bowl size: 300 x 609 x 455 mm, 1.2 mm thick. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes.Guidance for specification option: Includes two tap holes behind each bowl, drilled at 180 mm centres. Taps sold seperately. |
Overflow | Sandpipe strainer overflow. |
Waste | Centre.Guidance for specification option: Central back corner. Size: 38mm waste |
Integral accessories | None.Underframe.Guidance for specification option: Stainless steel underframes complete with shelf are to be ordered as an extra part and are supplied in a flat pack form with easy to read assembly instructions. Each leg is fitted with an adjustable foot (-20, +10 mm) with a working height of 900 mm |
Product Reference | (E20618D) 214.0493.176 Guidance for specification option: 2400 x 650 mm. Double bowl, double drainer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
