Bucket Sink - G21663N
Verified by manufacturer over a year ago

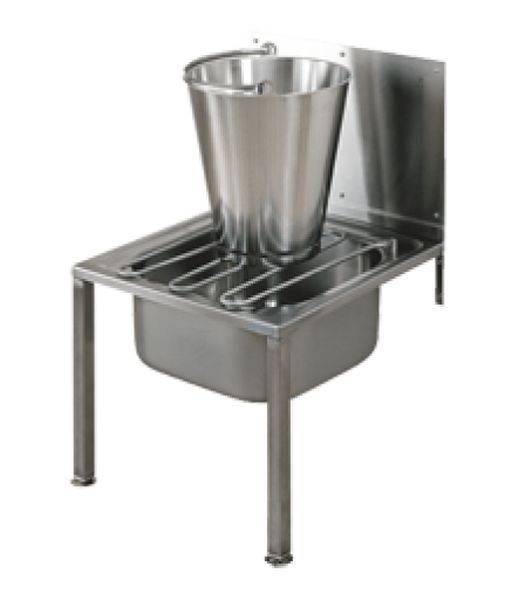

Floor standing bucket sink with splash-back.
Application
A floor standing bucket sink designed for use in cleaners rooms.
Description
A floor standing bucket sink designed for use in cleaners rooms.
Features and benefits:
- With splash-back.
- Stainless steel - grade 1.4301 (304).
- Satin finished.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Length | 517 mm |
Width | 500 mm |
Height | 780 mm |
Warranty description | Four year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Wall-hung.Guidance for specification option: Wall mounted with support legs. |
Bowls | One. |
Drainers | None |
Materials | |
Body | Stainless steel.Guidance for specification option: 1.2 mm thick. |
Finish and colour | Satin. |
Size | 500 x 517 x 780 mm.Guidance for specification option: Width x depth x overall height. |
Water supply, overflow and waste holes | |
Water supply | None. |
Overflow | None. |
Waste | Corner.Guidance for specification option: Right back corner - 38 mm BSP waste fitting. |
Integral accessories | None.Extension pieces.Guidance for specification option: Two, (F1072) 208.000.017. |
Product Reference | (G21663N) 207.0000.060 |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
