Catering Sink - Midi (No Drainer)

Verified by manufacturer over a year ago

KWC DVS Limited

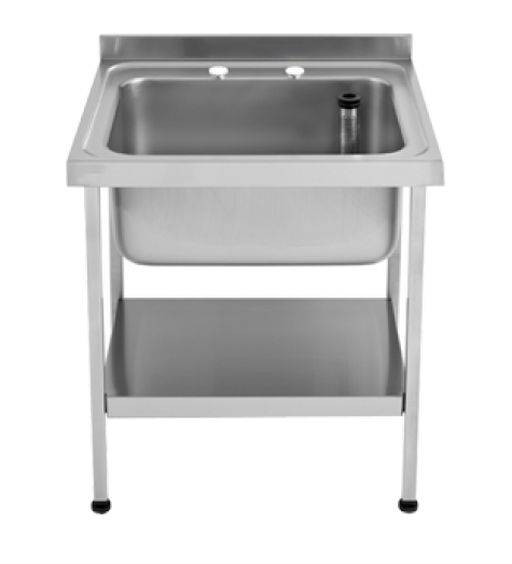

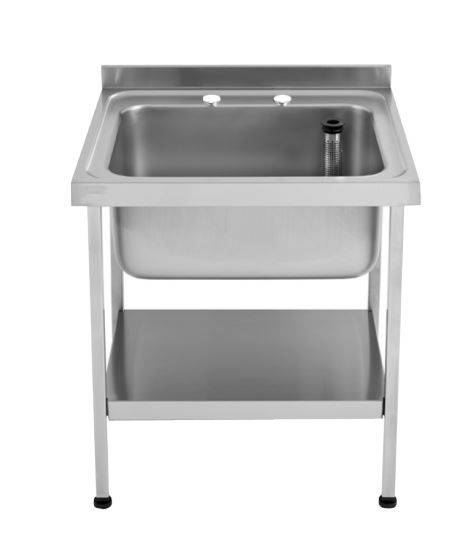

Midi catering sink 650 mm wide 750 mm - Single bowl, no drainer.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Large catering sink.

Description

Manufactured from 1.2 mm thick grade 1.4301 (304) stainless steel polished to a satin finish.

Includes two tap holes behind each bowl, drilled at 180 mm centres. Single bowl sinks are suitable for either 13 mm pillar taps or mixer taps, whereas the double bowl sinks are only suitable for pillar taps.

Bowls are all supplied with 38 mm waste and standpipe strainer overflow. An earthing lug is fitted under the drainer. Each leg is fitted with an adjustable foot with a working height of 900 mm.

Taps and underframes available separately.


Features and benefits:

  • Single catering sink.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304).

Shape

Square

Length

750 mm

Width

650 mm

Height

900 mm

Warranty description

Five year

Uniclass

Pr_40_20_96_81 SinksPrimary

CAWS

N13/25 Sinks

N13/331 Sinks

Product range

Sinks

Specification data - Sinks

Form

Floor-standing.

Guidance for specification option:

Mounted with underframe (sold separately).

Bowls

One.

Drainers

None.

Materials

-

Body

Stainless steel.

Finish and colour

Satin.

Size

650 x 900 x 750 mm.

Guidance for specification option:

(Overall size with underframe- sold separately), Bowl: 300 x 609 x 455 mm, 1.2 mm thick

Water supply, overflow and waste holes

-

Water supply

Two tap holes.

Overflow

Overflow hole.

Guidance for specification option:

Standpipe strainer overflow.

Waste

Corner.

Guidance for specification option:

Position: Right-hand, back corner. Projection: 220 mm. Size: DN 40 38 mm waste.

Integral accessories

Underframe with shelf.

Product Reference

(E20608N) 214.0493.164

Guidance for specification option:

750 x 650 mm. Single bowl, no drainer.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

-

Manufacturer guidance

Recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
