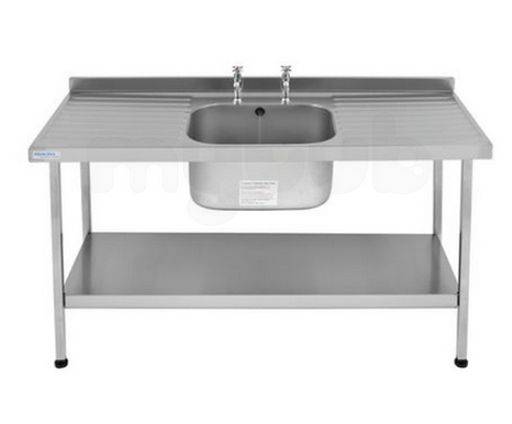

Catering Sink - Midi (Double Drainer)
Verified by manufacturer over a year ago
Midi catering sink 650 mm wide 1800 mm - Single central bowl, double drainer.
Application
Midi catering sink. Single bowl sinks are suitable for either 13 mm pillar taps or mixer taps, whereas the double bowl sinks are only suitable for pillar taps.
Description
Single central bowl, double drainer midi catering sink.
Features and benefits:
- Manufactured from 1.2 mm thick grade 1.4301 (304) stainless steel.
- Polished to a satin finish.
- Includes two tap holes behind each bowl, drilled at 180 mm centres.
- Bowls are all supplied with 38 mm waste and standpipe strainer overflow.
- An earthing lug is fitted under the drainer.
- Each leg is fitted with an adjustable foot with a working height of 900 mm.
- Single sink with double drainer.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Rectangle |
Length | 1800 mm |
Width | 650 mm |
Height | 900 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Under-mounted.Guidance for specification option: Mounted with underframe (sold separately). |
Bowls | One. |
Drainers | Two. |
Materials | |
Body | Stainless steel.Guidance for specification option: Grade 1.4301 (304). |
Finish and colour | Satin. |
Size | 650 x 900 x 1800 mm.Guidance for specification option: Overall size (with underframe- sold separately), Bowl size: 300 x 609 x 455 mm, 1.2 mm thick. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes.Guidance for specification option: Includes two tap holes behind each bowl, drilled at 180 mm centres. Taps sold separately. |
Overflow | Standpipe strainer overflow. |
Waste | Corner.Guidance for specification option: Position: Right-hand, back corner. Projection: 220 mm. Size: DN 40 38mm waste. |
Integral accessories | None.Underframe.Guidance for specification option: Underframes available separately. Stainless steel underframes complete with shelf are to be ordered as an extra part and are supplied in a flat pack form with easy to read assembly instructions. Each leg is fitted with an adjustable foot (-20, +10 mm) with a working height of 900 mm. |
Product Reference | (E20614D) 214.0493.169 Guidance for specification option: 1800 x 650 mm. Single bowl, double drainer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
