Plafotherm® GK HEKDA

Heated and chilled plasterboard ceilings with a heat conducting profile as a secondary grid.

This cost-effective system enables jointless surfaces – a multitude of plain or perforated panellings are available. All components are tested as a complete system and provide for best comfort and a pleasant room climate. The profile fuses with the substructure as constructive element and is screwed to the plasterboard panel.

The individual heated and chilled ceilings are connected in series (heating and cooling zones) until a pressure loss of approximately 25–30 kPa is achieved. The individual heating and cooling zones are connected parallel to the distribution pipe (regulation zone).

Features and benefits:

• Can achieve a high occupancy rate of up to 100%, even in case of rooms with several ceiling fixtures.

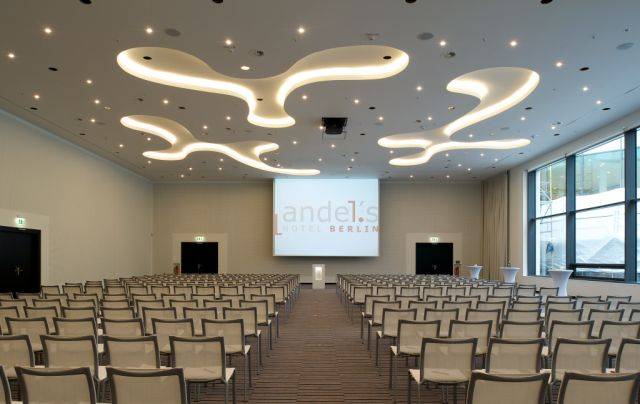

• Height differences and flexible shapes can be realized.

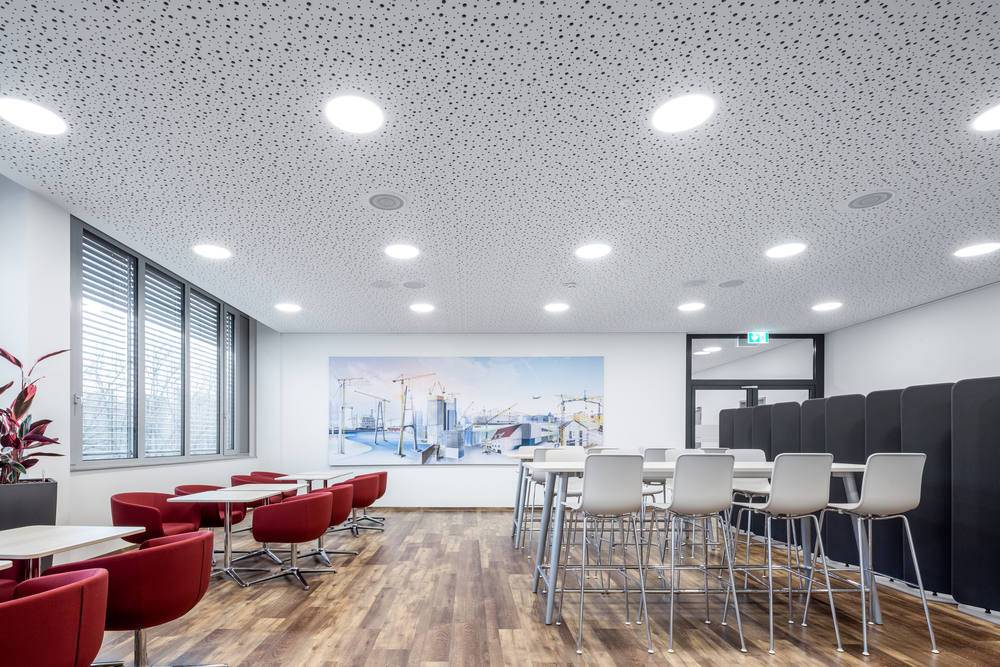

• Six standard perforations available. Other perforations available on request. Consult manufacturer for perforation patterns.
