Expanded Metal Ceilings

Name: Expanded Metal Ceilings
Brand: Lindner Group
SKU: 2bF9DjKsoRPcxqsrnAkB1B

Verified by manufacturer 4 months ago

LMD-St 213 BWS - Accentuated joints, ball-impact resistant

Lindner Group

Third party certifications:

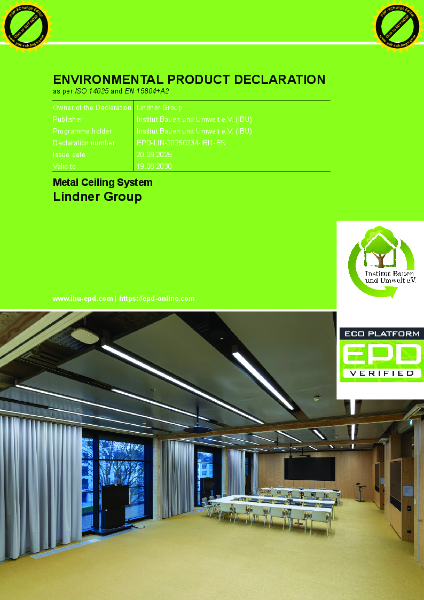

EPD
Certificate type
ISO 9001 Quality Management
Certificate type
Cradle to Cradle Certified
Certificate type

A range of hook-on expanded metal ceilings.

Jump to:

BOS

020 8246 6333 Website

Application

Recreation and culture.
Workplace.
Transport.
Public institutions.
Education.
Public areas.
Hotels and gastronomy.

Description

A range of hook-on expanded metal ceilings with powder coated visible surface, hook-on and/ or swing-down and slide types, supported by a concealed suspension system. Manufactured in accordance with European standards and the technical regulation of TAIM e.V.

Features and benefits:

Available in six styles including ball-impact resistant, corridor and heated/ chilled ceilings.
The products have a specific EPD according to the valid standards (EN 15804/ ISO 14025).

General information

Color	Other
Finish	Powder-coated Guidance for specification option: Electrostatically applied.
Material	Steel
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Product range	Ceilings

Specification data - Modular suspended ceiling systems

System performance	Fire performance to BS EN 13501, A2-s1, d0.
Ceiling support	Metal suspended ceiling hangers.
Ceiling units	Expanded metal infill units.
System accessories	None. LMD-RK 20 – Inspection hatch expanded metal.

Standard	To EN 13964.
Third-party certification	TAIM e.V.
Acoustic infills	Not required. Acustica – Acoustic fabric inlay.
Colour	9006 acc. to Lindner. Guidance for specification option: Manufacturer's standard. RAL. Guidance for specification option: Insert requirements. NCS. Guidance for specification option: Insert requirements.
Durability	To DIN EN 13964, exposure class A.
Fire resistance	To EN 13501-2, 30 minutes.
Joint width	20 mm. 25 mm. 30 mm.
Luminaires	Not required. SHL 298 – Recessed/Surface-Mounted Luminaire for sports halls. SYS 298 – Recessed/Surface-Mounted Luminaire for sports halls.
Mesh	MESHdesign.
Panel size	Guidance for specification option: Length: 250–3000 mm, width: 200–12500 mm. Consult manufacturer's literature and insert requirements.
Powder coating	COLOURline. MOODline.
Sound absorption	- Manufacturer guidance Dependent on level of perforation and acoustic inlay. Consult manufacturer.
Type	LMD-St 213 BWS Type 3, Hook-On, expanded metal turned up. LMD-St 213 BWS Type 4, Hook-On, expanded metal bordered. LMD-St 213 BWS Type 5, Hook-On/Swing-Down, expanded metal bordered. LMD-St 213 BWS Type 6, Hook-On/Swing-Down, expanded metal turned up. LMD-St 213 BWS Type 7, Hook-On/Swing-Down, expanded metal bordered with opposite angle.
Wall connection	Open. U-profile.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Steel
Manufacturing plant location	Bahnhofstraße 29, 94424 Arnstorf, Germany
Recyclability	yes
Expected Life	50 year
